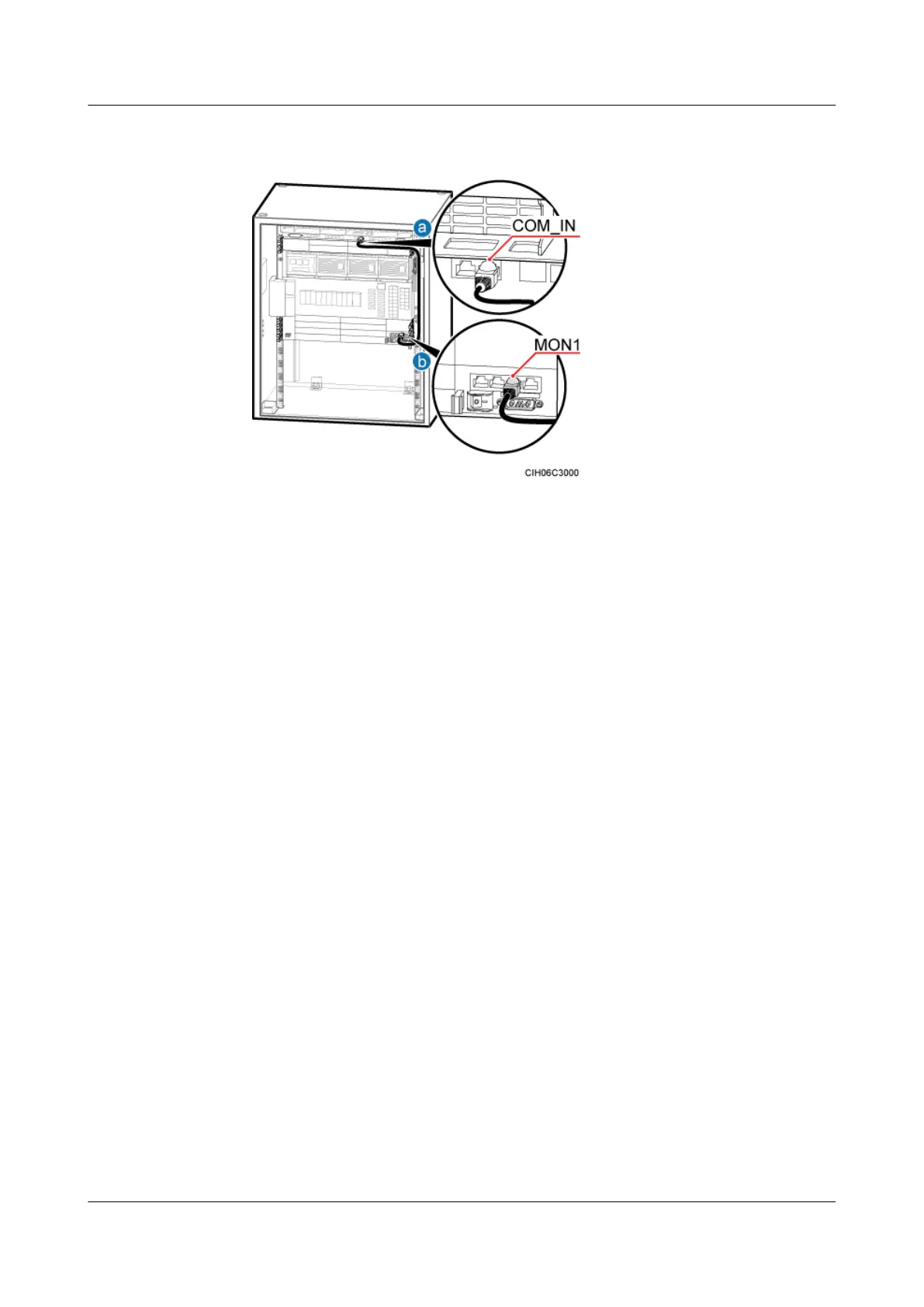

Figure 6-98 Installing a monitoring signal cable between the CMUA and the BBU in an
APM30H
Step 2 Install a monitoring signal cable between the APM30H and the IBBS200D or IBBS200T, as
shown in Figure 6-99 and Figure 6-100.
1. Connect one end of the monitoring signal cable between the APM30H and the IBBS200D
or IBBS200T to the COM_IN port on the CMUA on the cabinet door of the IBBS200D or
IBBS200T.
2. Connect the other end to the COM_485 port on the PMU in the APM30H.
