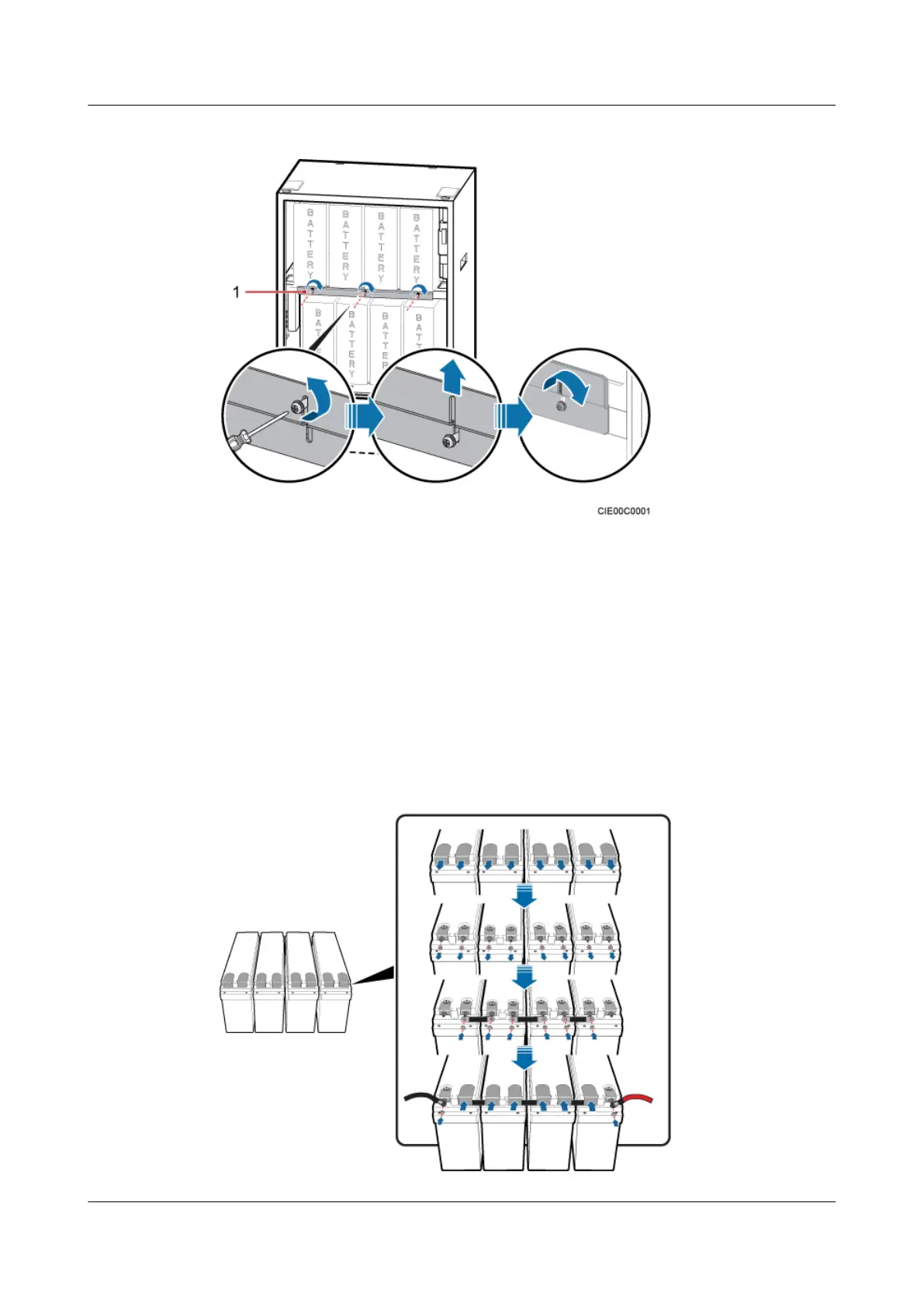

Figure 6-133 Securing the baffle plate
(1) Baffle plate
1. Loosen the three screws on the baffle plate.
2. Move the baffle plate upward until it touches the screws.
3. Tighten the screws to secure the baffle plate until the tightening torque reaches 1.2 N·m
(10.62 lbf·in.).
Step 3 Install the power cable for the batteries, as shown in Figure 6-134.
Figure 6-134 Installing the power cable for the batteries
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
135
