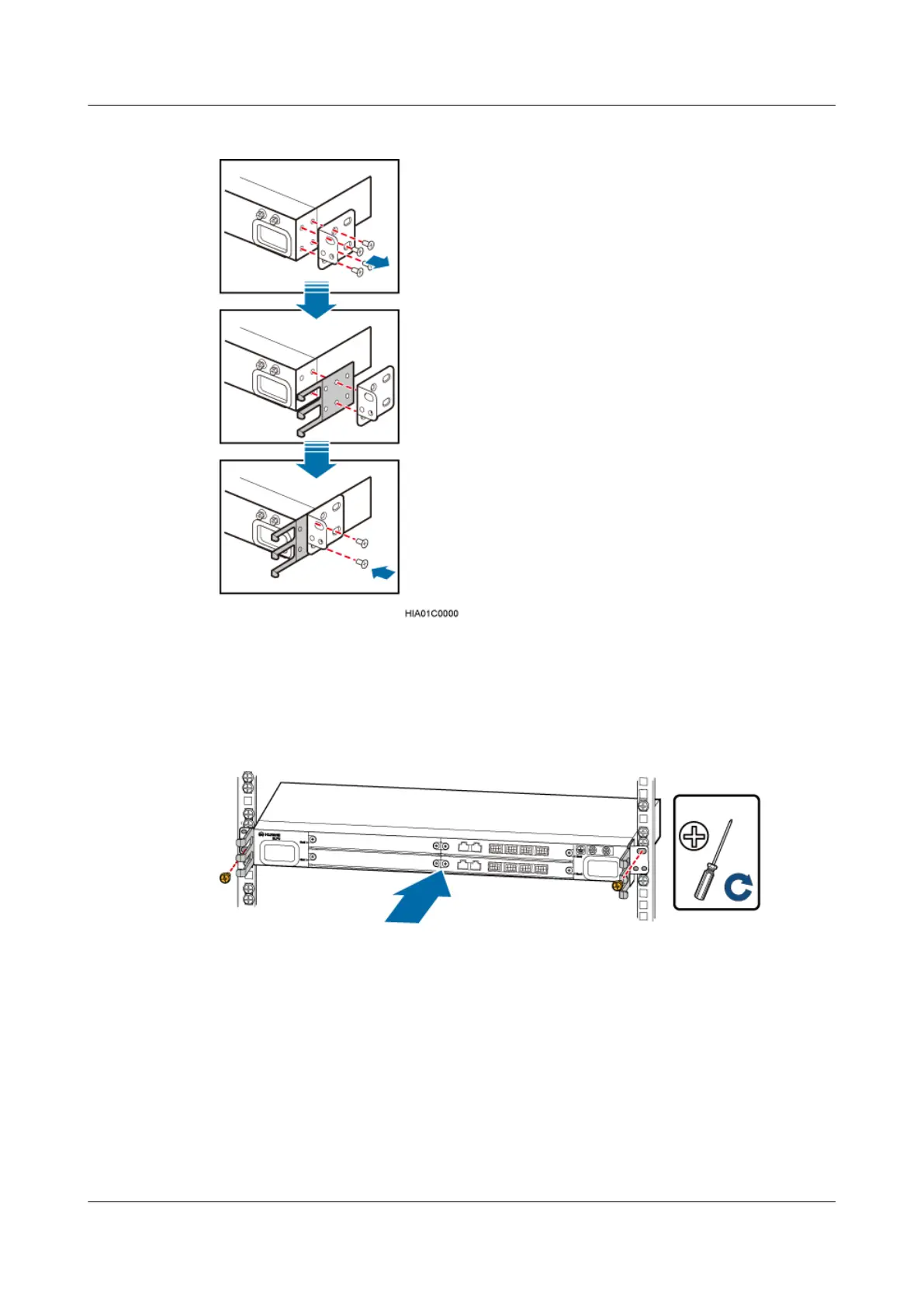

Figure 7-43 Installing cable racks
Step 2 Slide the SLPU into the cabinet, and then use the screwdriver to tighten the two screws on the
mounting ears of the SLPU, as shown in Figure 7-44.
Figure 7-44 Installing the SLPU
Step 3 Install the surge protection transfer cable for monitoring signals, as shown in Figure 7-45.
DBS3900 (Ver.B)
Installation Guide
7 Outdoor Scenario with DC Power Supply (BBU Installed
in a TMC11H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
177
