Outdoor Scenario with DC Power Supply (BBU Installed in an OMB)
In the -48 V DC power supply scenario, the BBU can be installed in an OMB if the transmission
space of customers is not more than 3 U and the number of RRUs is not more than three, as
shown in Figure 3-9.

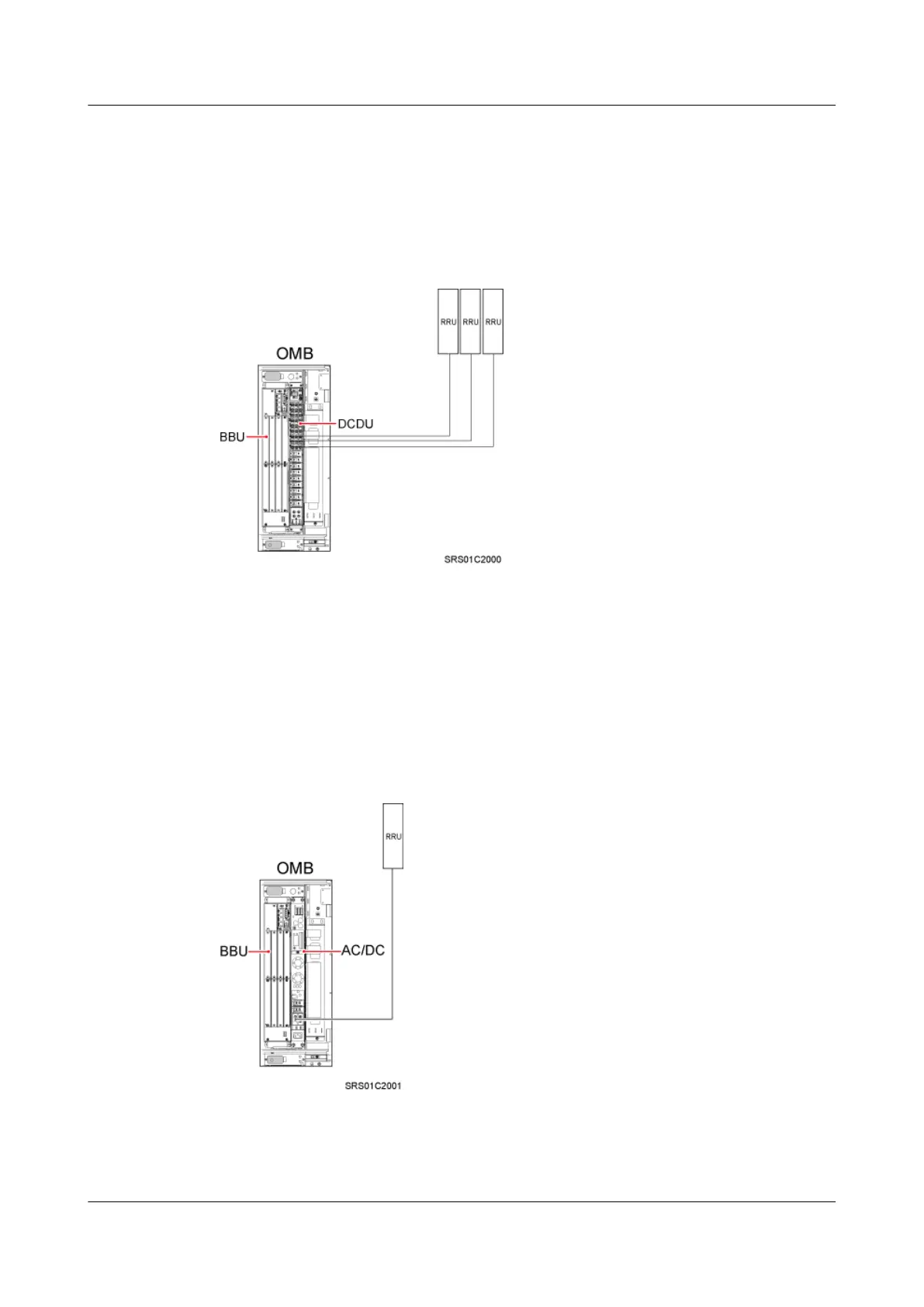

Figure 3-9 DC scenario (BBU installed in an OMB)
Outdoor Scenario with AC Power Supply (BBU Installed in an OMB)
In the 110 V or 220 V AC power supply scenario, the BBU can be installed in an OMB if the
transmission space of customers is not more than 3 U and only one RRU is installed, as shown
in Figure 3-10.
Figure 3-10 AC scenario (BBU installed in an OMB)
DBS3900 (Ver.B)
Installation Guide 3 Installation Scenarios
