Indoor Scenario (BBU Installed in an IMB03)
In the -48 V DC power supply scenario, the BBU can be installed in an IMB03 if the transmission
space of customers is not more than 3 U and the number of RRUs is not more than six, as shown
in Figure 3-14.

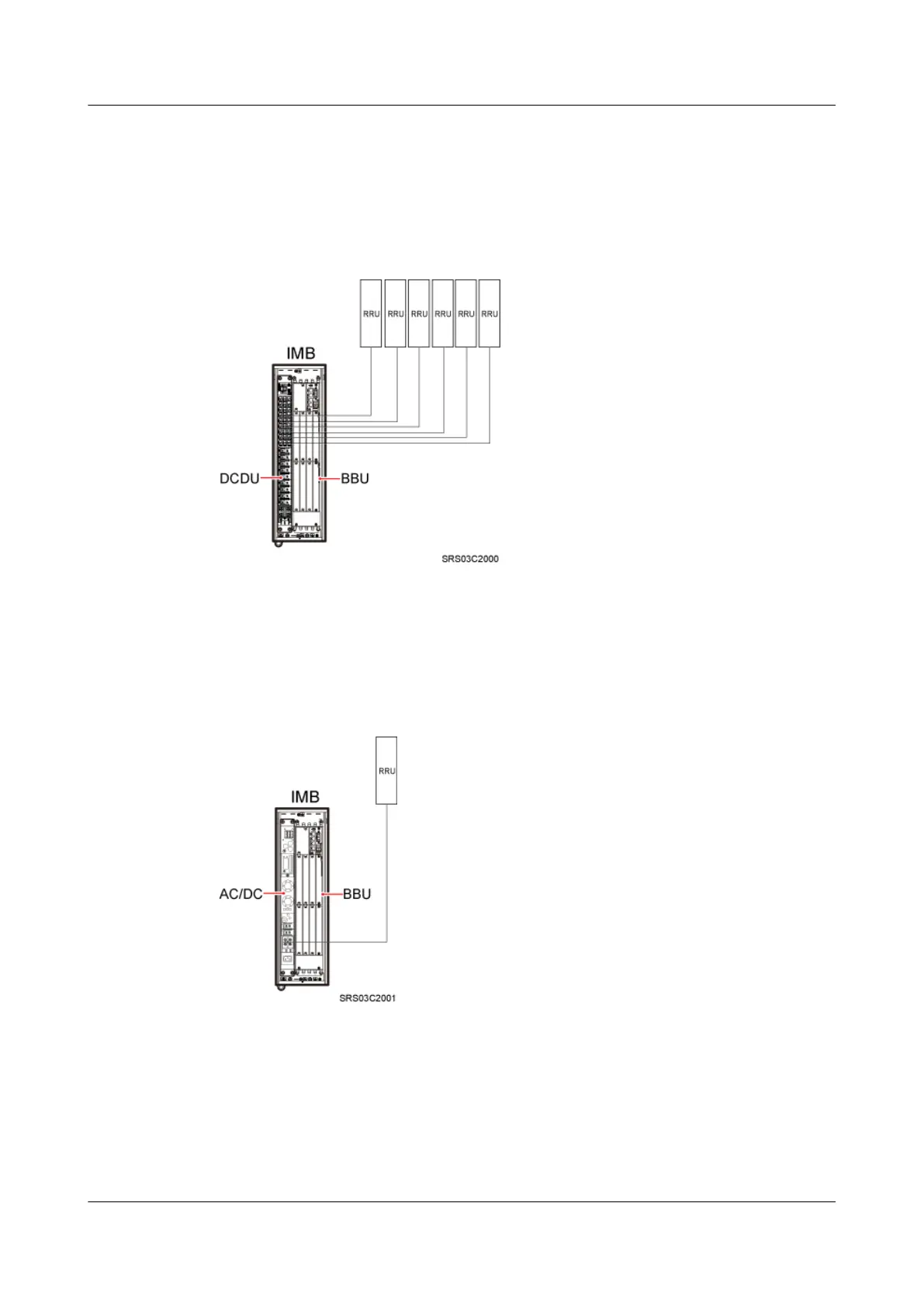

Figure 3-14 DC scenario (BBU installed in an IMB03)
In the 110 V or 220 V AC power supply scenario, the BBU can be installed in an IMB03 if the
transmission space of customers is not more than 3 U and only one RRU is installed, as shown
in Figure 3-15.
Figure 3-15 AC scenario (BBU installed in an IMB03)
DBS3900 (Ver.B)
Installation Guide 3 Installation Scenarios
