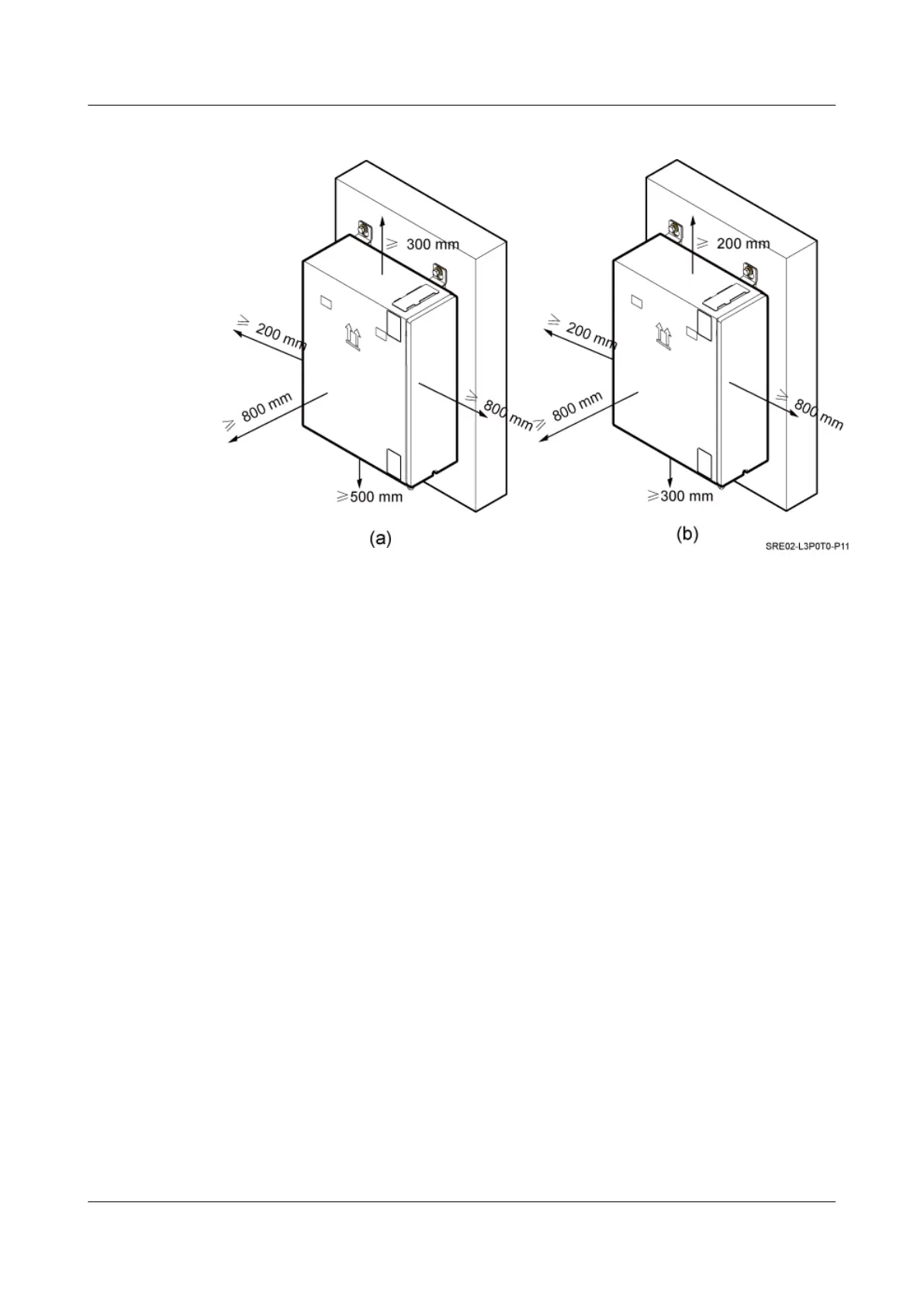

Figure 13-2 Installation clearance requirements for the IMB03 right-side-mounted on the wall
(a) Recommended installation clearance (b) Minimum installation clearance
Installation Clearance Requirements for the IMB03 Left-Side-Mounted on the Wall
Figure 13-3 shows the installation clearance requirements for the IMB03 left-side-mounted on
the wall.
DBS3900 (Ver.B)
Installation Guide 13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
435
