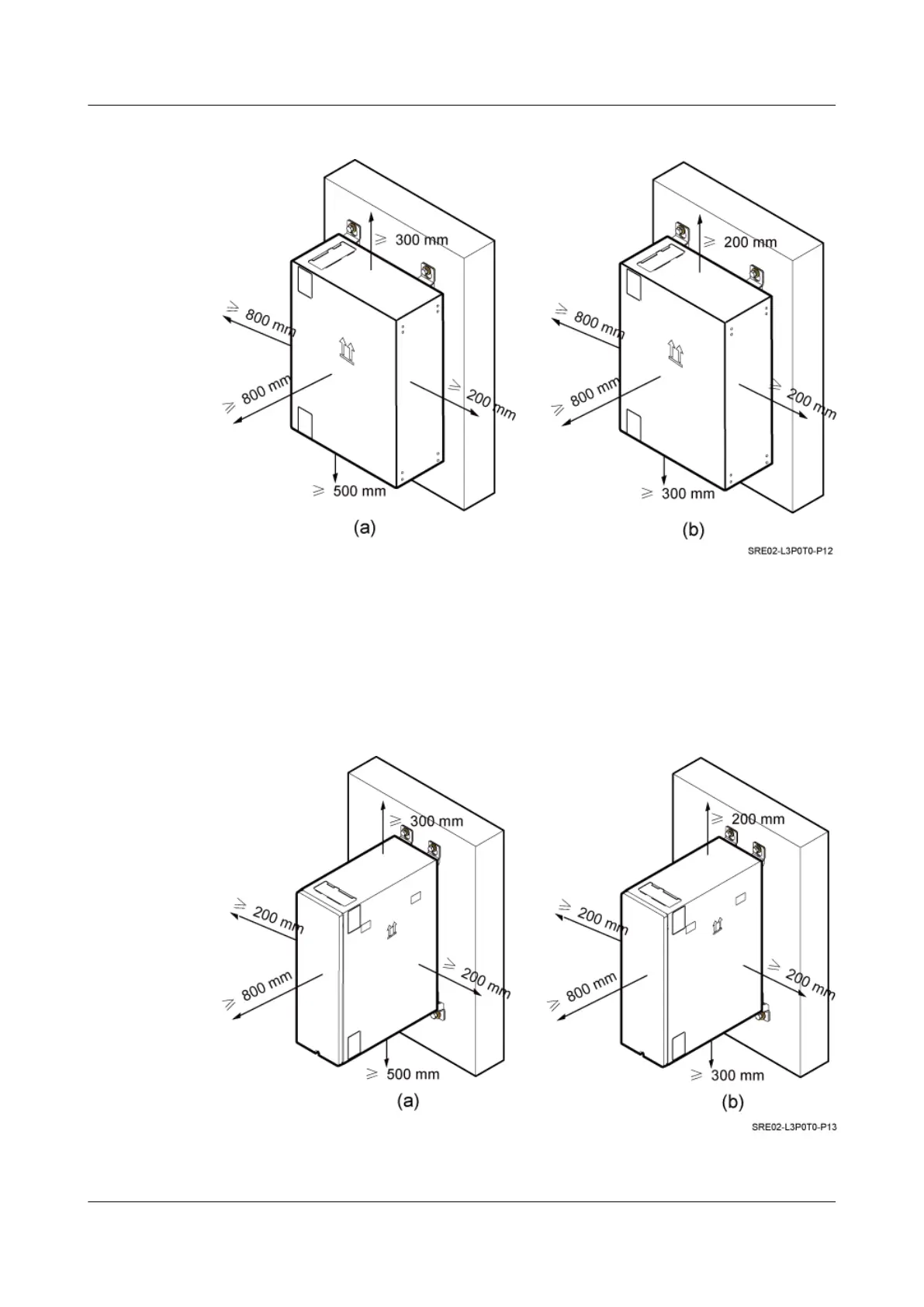

Figure 13-3 Installation clearance requirements for the IMB03 left-side-mounted on the wall
(a) Recommended installation clearance (b) Minimum installation clearance
Installation Clearance Requirements for the IMB03 Back-Mounted on the Wall
Figure 13-4 shows the installation clearance requirements for the IMB03 back-mounted on the
wall.
Figure 13-4 Installation clearance requirements for the IMB03 back-mounted on the wall
(a) Recommended installation clearance
(b) Minimum installation clearance
