Figure 13-29 Pre-tightening the bolts at the upper anchor points
(1) Mounting ears on the IMB03

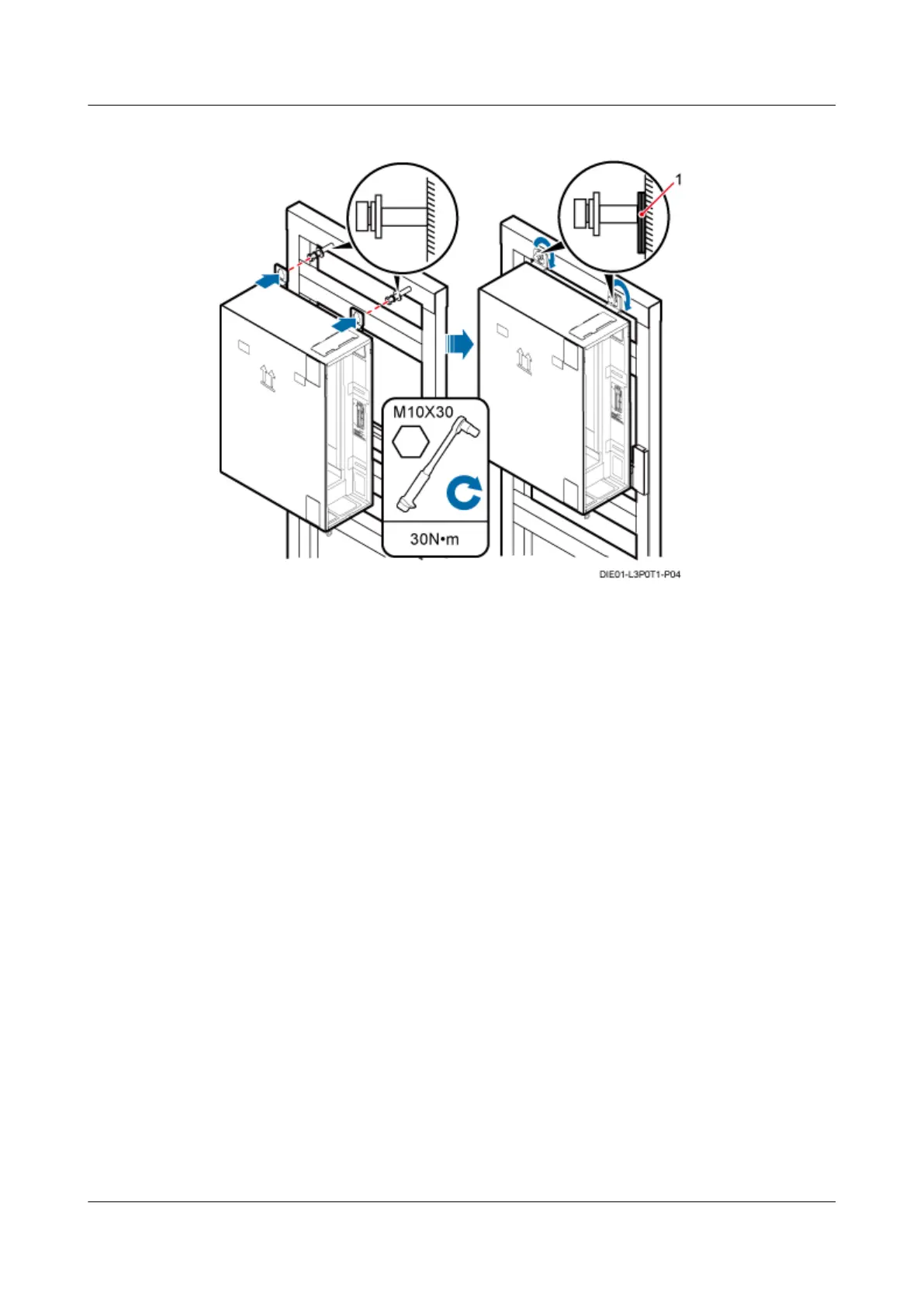

Step 7 Align the mounting ears at the lower part of the IMB03 with the anchor holes, and then use a
torque wrench to tighten the bolts, as shown in Figure 13-30.
