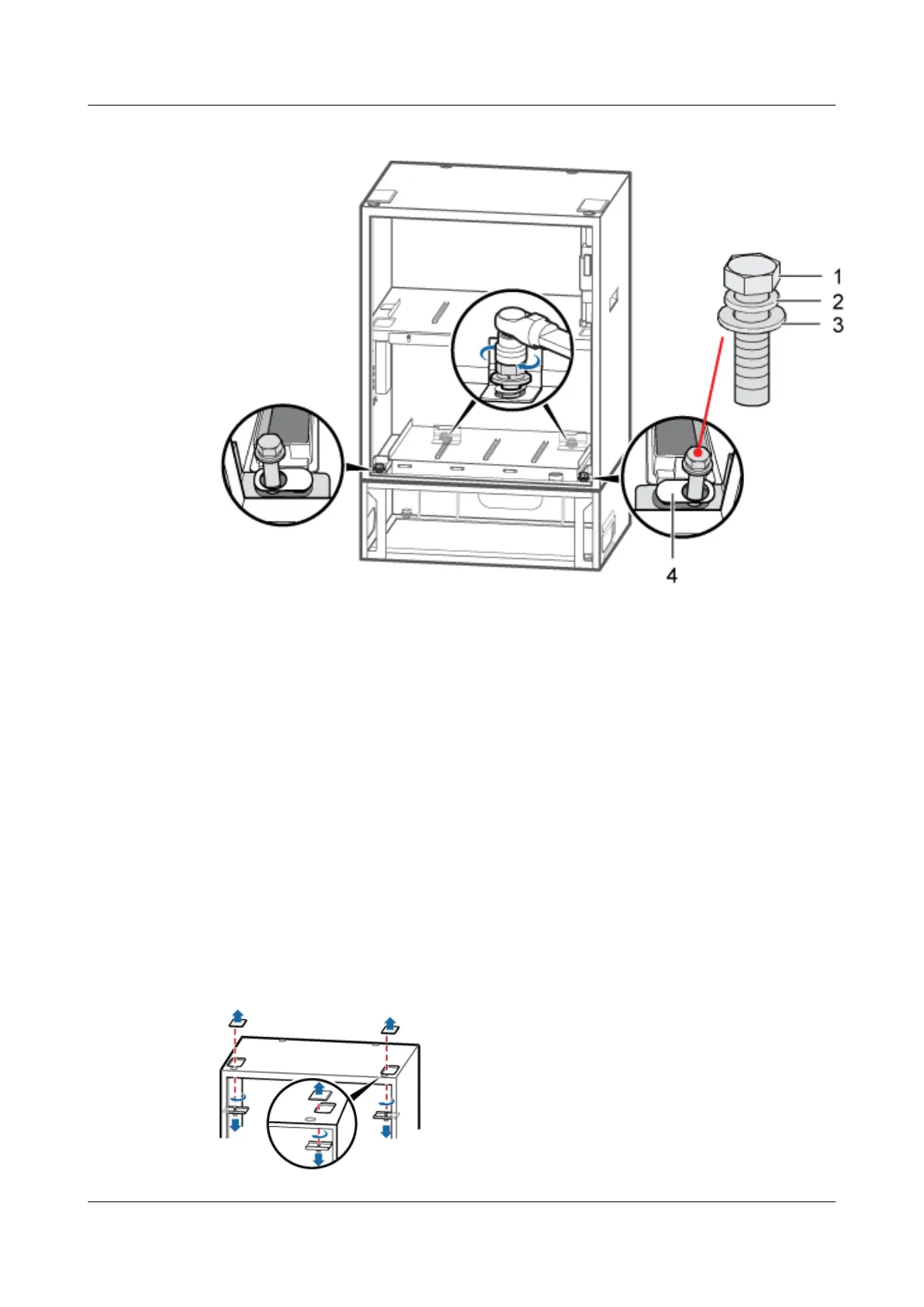

Figure 6-15 Securing the IBBS200D on the base
(1) M12x30 bolt (2) Spring washer (3) Flat washer (4) Gasket with an oblong hole
----End
(Optional) Installing Two Cabinets in Stack Mode
This section describes the procedure and precautions to be taken for installing two cabinets in
stack mode. After a cabinet is installed on a base, another cabinet can be stacked on this cabinet
based on actual requirements.
Procedure
Step 1 Remove the cover plates for cable holes from the top of the lower cabinet, as shown in Figure
6-16.
Figure 6-16 Removing the cover plates for cable holes
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
39
To Next Page
