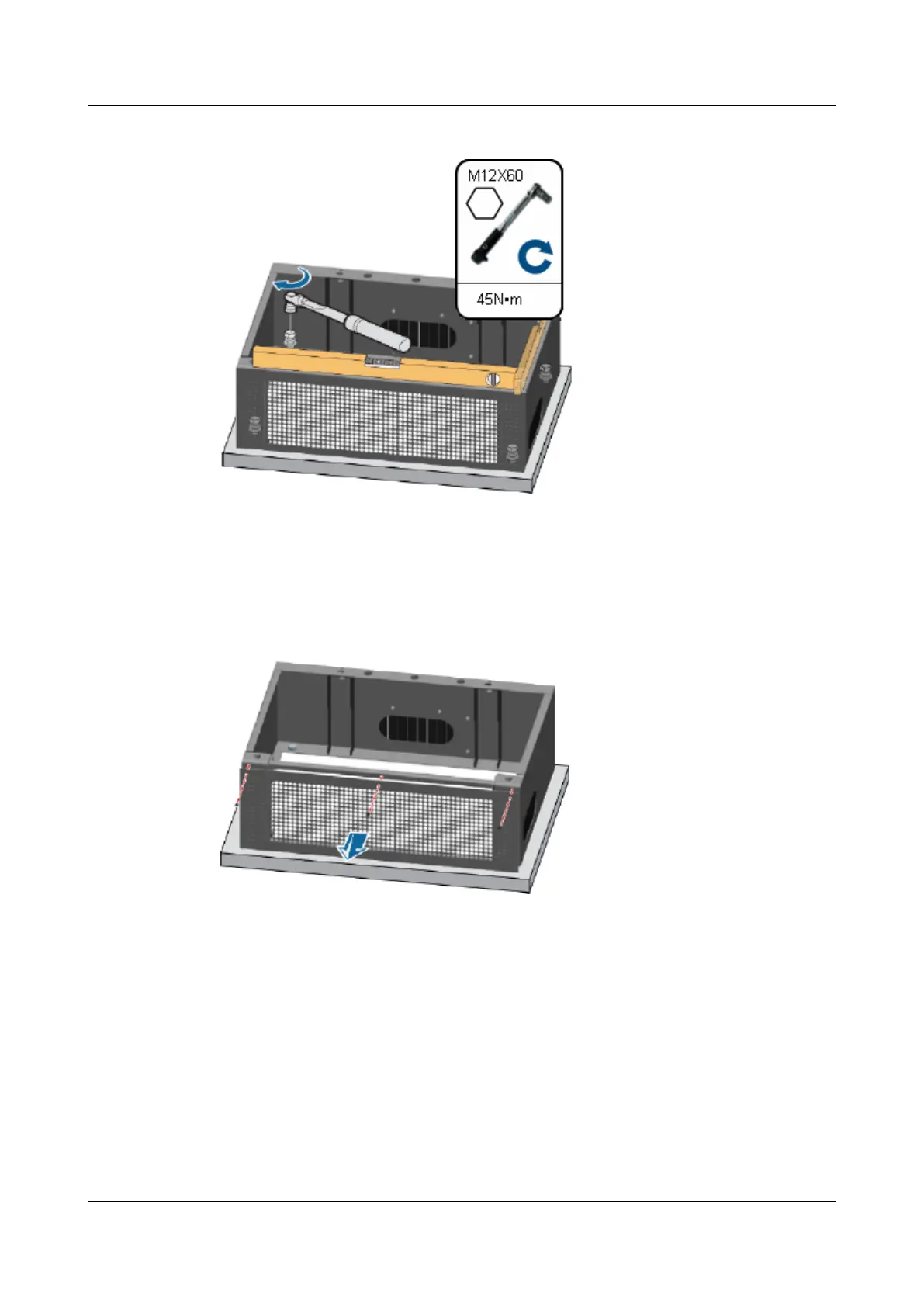

Figure 14-7 Tightening the bolts
Step 6 Loosen the three screws on the front cover plate of the base, and then remove the front cover
plate, as shown in Figure 14-8.
Figure 14-8 Removing the front cover plate
Step 7 Remove the baffle plate from either side of the base (by taking the left side as an example), as
shown in Figure 14-9.
DBS3900 (Ver.B)
Installation Guide
14 Indoor Scenario with DC Power Supply (BBU Installed
Indoors and RRU Powered Outdoors)
