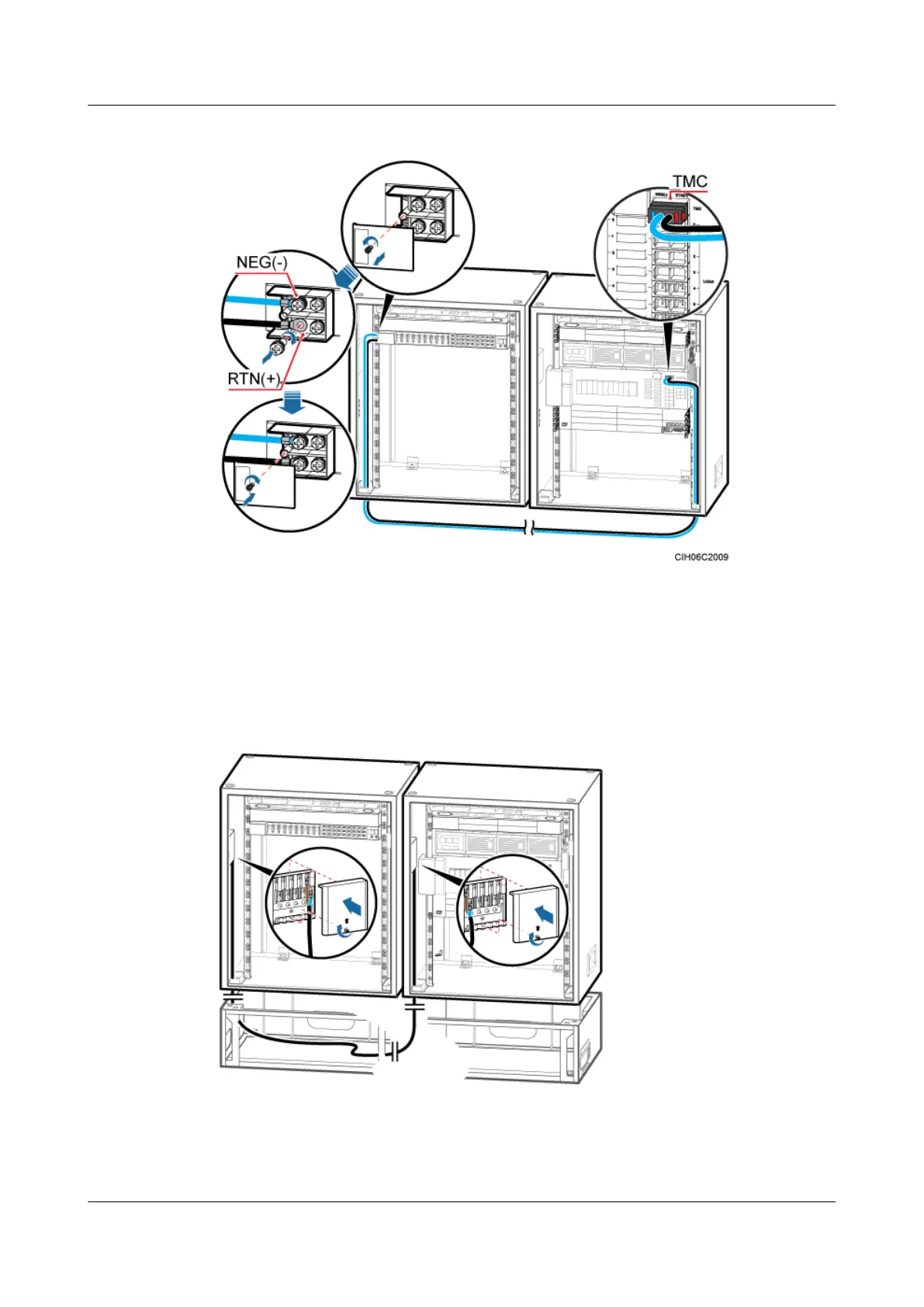

Figure 6-71 Installing the input power cable for the TMC11H
Step 3 Link the OT terminal at one end of the power cable for the junction box in the TMC11H to the
AC output wiring terminals labeled L3 and N3 in the junction box in the APM30H, and then
link the OT terminal at the other end to the AC input wiring terminal labeled L and N in the
junction box in the TMC11H, as shown in Figure 6-72.
Figure 6-72 Installing the power cable for the junction box in the TMC11H
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
77
