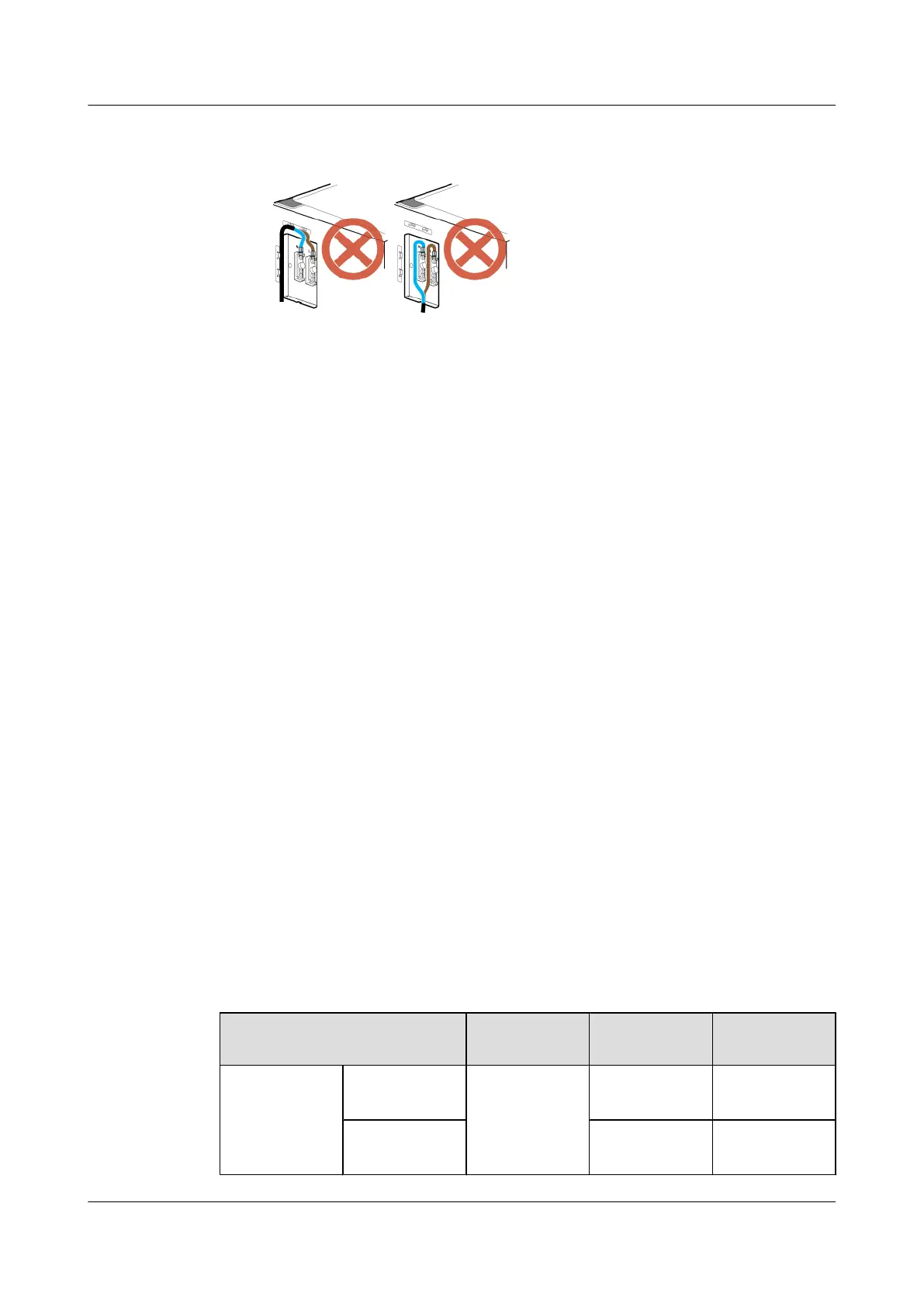

Figure 6-76 Incorrect connections of the heating-film power cable in the junction box in
the IBBS200D
Step 5 Route the cable by referring to 6.5.1 Cabling Requirements, and then use cable ties to bind the
cable.
Step 6 Label the installed cables by referring to Attaching a Sign Plate Label.
Step 7 Run each cable that leaves the cabinet in the PVC corrugated pipe, and then tie the pipe to the
cable hole in the cabinet.
----End
Installing Power Cables Between the APM30H and the IBBS200T
Power cables between the APM30H and the IBBS200T feed power into an IBBS200T and its
components from an APM30H. The cables are optional, which are delivered and used with an
IBBS200T.
Prerequisite
l The tools, such as a Phillips screwdriver, cable cutter, and multi-purpose crimping tool, are
ready.
l The PGND cable is installed.
Context
According to backup power requirements of customers, the configuration proportion of
APM30Hs and IBBS200Ts can be 1:1 or 1:2.
The power cables between the APM30H and the IBBS200T are the power cables for the batteries,
cascaded batteries, and TEC in the IBBS200T. Table 6-8 lists the cable specifications.
Table 6-8 Power cables between the APM30H and the IBBS200T
Cable
One End The Other
End
Remarks
Power cable for
the batteries
RTN(+) wire Power series
120 connector
OT terminal
(M6, 16 mm
2
)
Red
NEG(-) wire OT terminal
(M6, 16 mm
2
)
Black
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
83
