Quidway S2000-EI Series Ethernet Switches Chapter 3 Installation
3-2
(1) Magnet (2) Downward

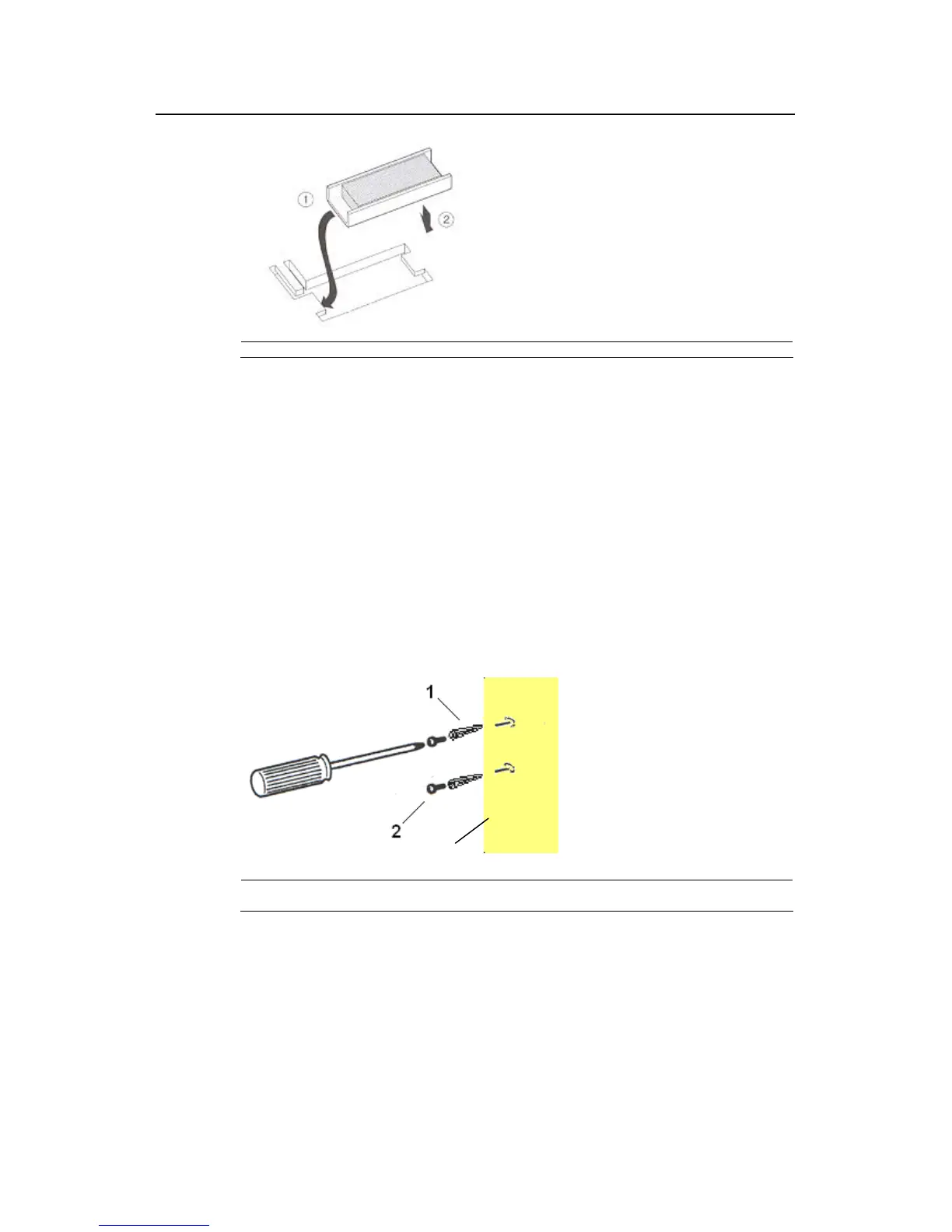

Figure 3-2 Installing a magnet piece into a bracket on the bottom of S2008-EI chassis
Step 2: Mount S2008-EI onto the metal wall, ensuring the service ports facing
downward vertically.
3.1.2 Mounting the S2008-EI on the Nonmetal Wall
Follow these steps to mount S2008-EI on the nonmetal wall:
Step 1: Drill two holes on the wall appropriate to the size of the provided plastic
sleeves and the spacing between the two cinquefoil holes on the bottom of the switch.
Put the plastic sleeves into the holes and then half of the two screws (accompanying
the switch) into the sleeves.
33
(1) Plastic sleeve (2) Screw
(3) Wall
Figure 3-3 Placing screws into plastic sleeves (planform)
Step 2: Hang S2008-EI onto the screws through the cinquefoil holes (see Figure 3-1)
on the bottom, ensuring the service ports facing downward vertically.
