Quidway S2000-EI Series Ethernet Switches Chapter 1 Product Overview
1-5
1.2 S2016-EI Ethernet Switch
The S2016-EI Switch falls into two models: S2016-EI-AC and S2016-EI-DC. They
differ only in the sense that the former is AC-powered and the latter is DC-powered.
Throughout the rest of the manual, both of them are referred to as S2016-EI if not
otherwise stated.
1.2.1 Appearance

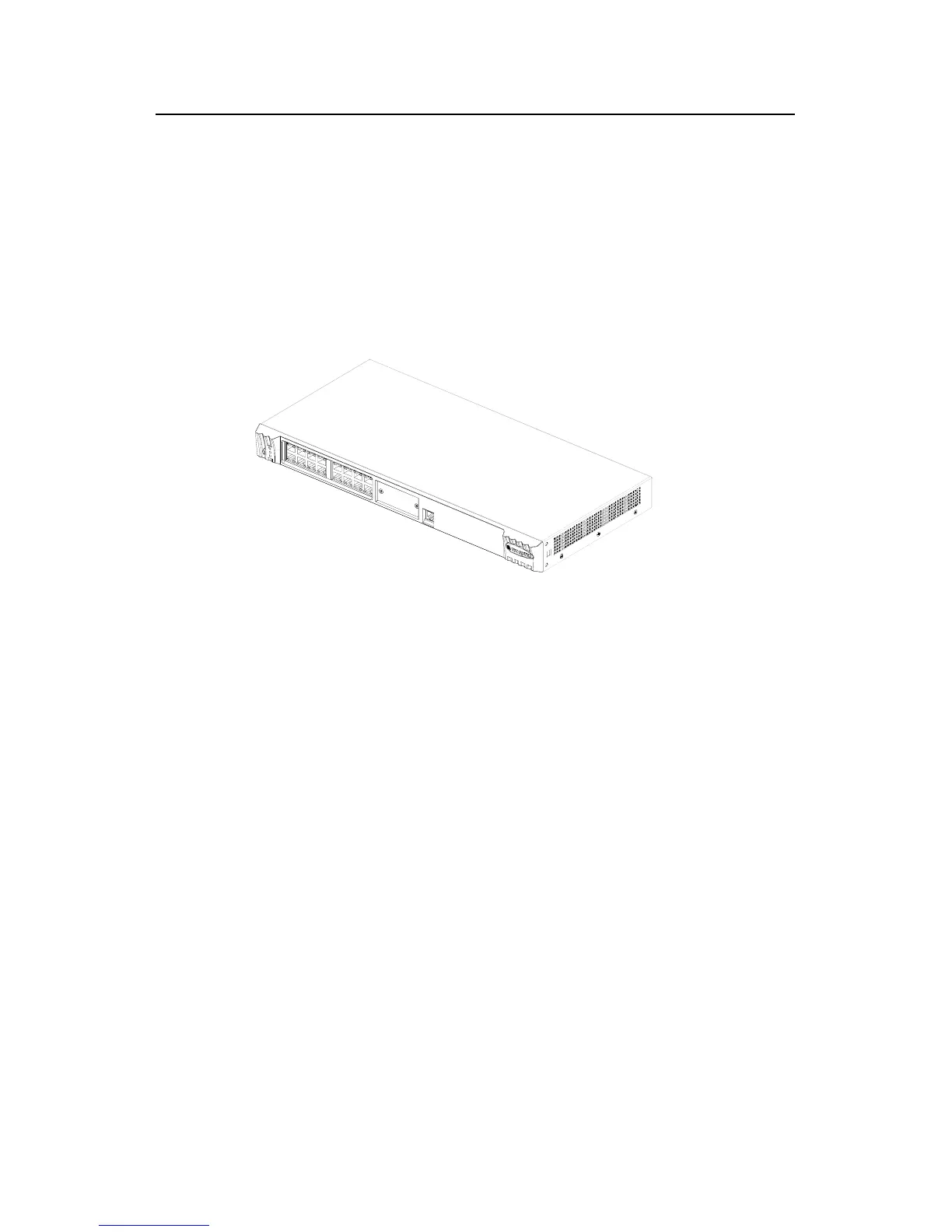

Figure 1-4 S2016-EI Switch
1.2.2 Front View
I. Front panel
On S2016-EI front panel distribute one status mode control button (referred to as
MODE button throughout the rest of the manual), one power LED (PWR), two status
mode LEDs (A/L, D/S), 16 fixed 10Base-T/100Base-TX auto-negotiation electrical
ports, one expansion slot, and one Console port. The 16 fixed ports are RJ-45
connectors, each with one yellow LED on the left and one green LED on the right.
See the following figure.
