Quidway S2000-EI Series Ethernet Switches Chapter 7 Optional Interface Modules
7-2
Table 7-1 1Meaning of LEDs on 100Base-FX single-mode/multi-mode module panel
LED Status description
LINK OFF means the link is disconnected. ON means the line is connected.
ACT or ACTIVE
OFF means no data is being received or transmitted. Flashing means data is
being received or transmitted.
7.1.2 Module Interface Fiber
1-port 100Base-FX module ports match SC connectors.

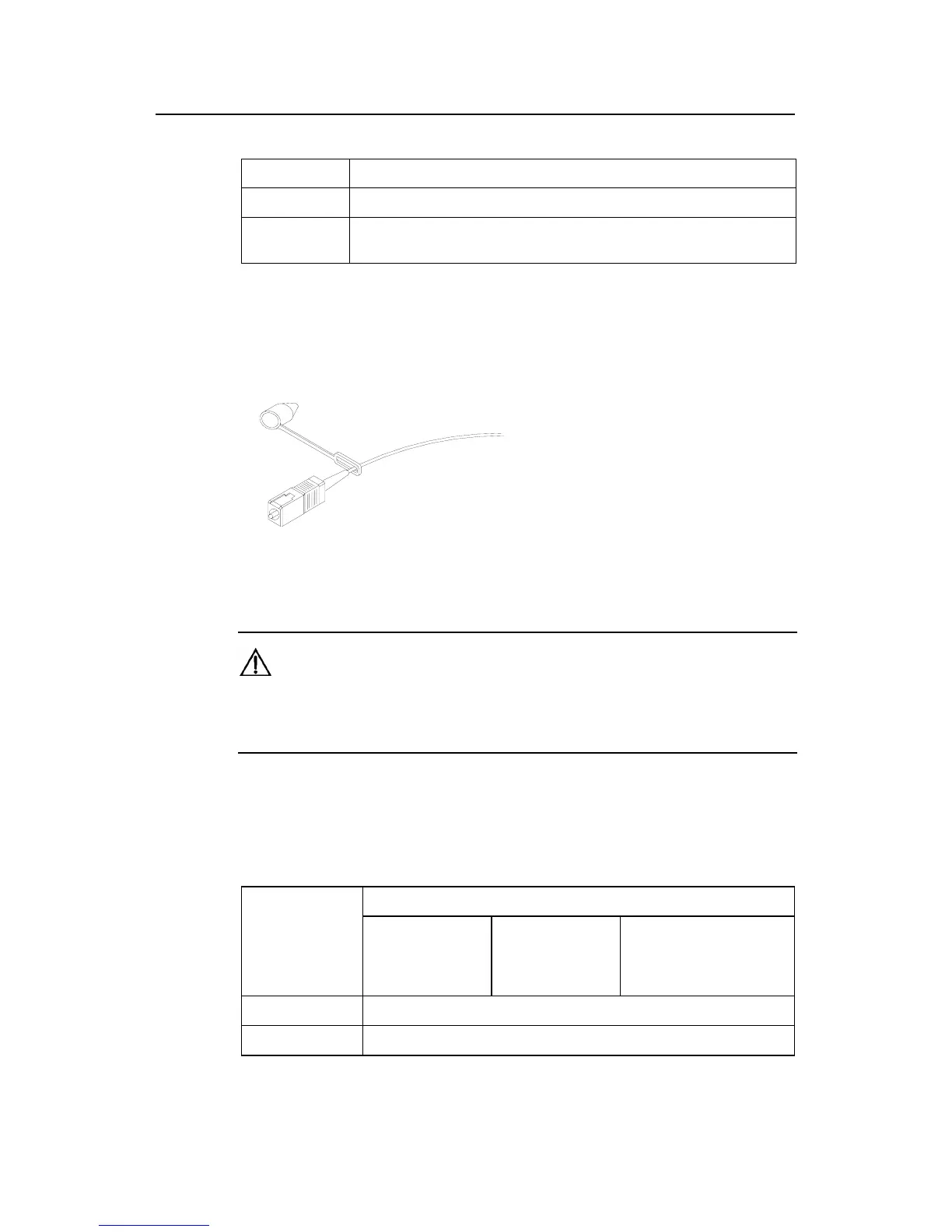

Figure 7-2 SC optical fiber connector
Caution:
When connecting an SC connector, connect the switch-side Tx end and Rx respectively to the
network-side Rx end and Tx end.
The following table describes the interface attributes of the 1-port 100Base-FX
modules.
Table 7-2 Interface attributes of the 1-port 100Base-FX modules
Description
Attribute
1-port 100Base-FX
single-mode
module
1-port 100Base-FX
single-mode
medium-haul
module
1-port 100Base-FX
multi-mode module
Connector SC
Number of ports 1
