Installation Manual
Quidway S2000-EI Series Ethernet Switches Chapter 3 Installation
3-4

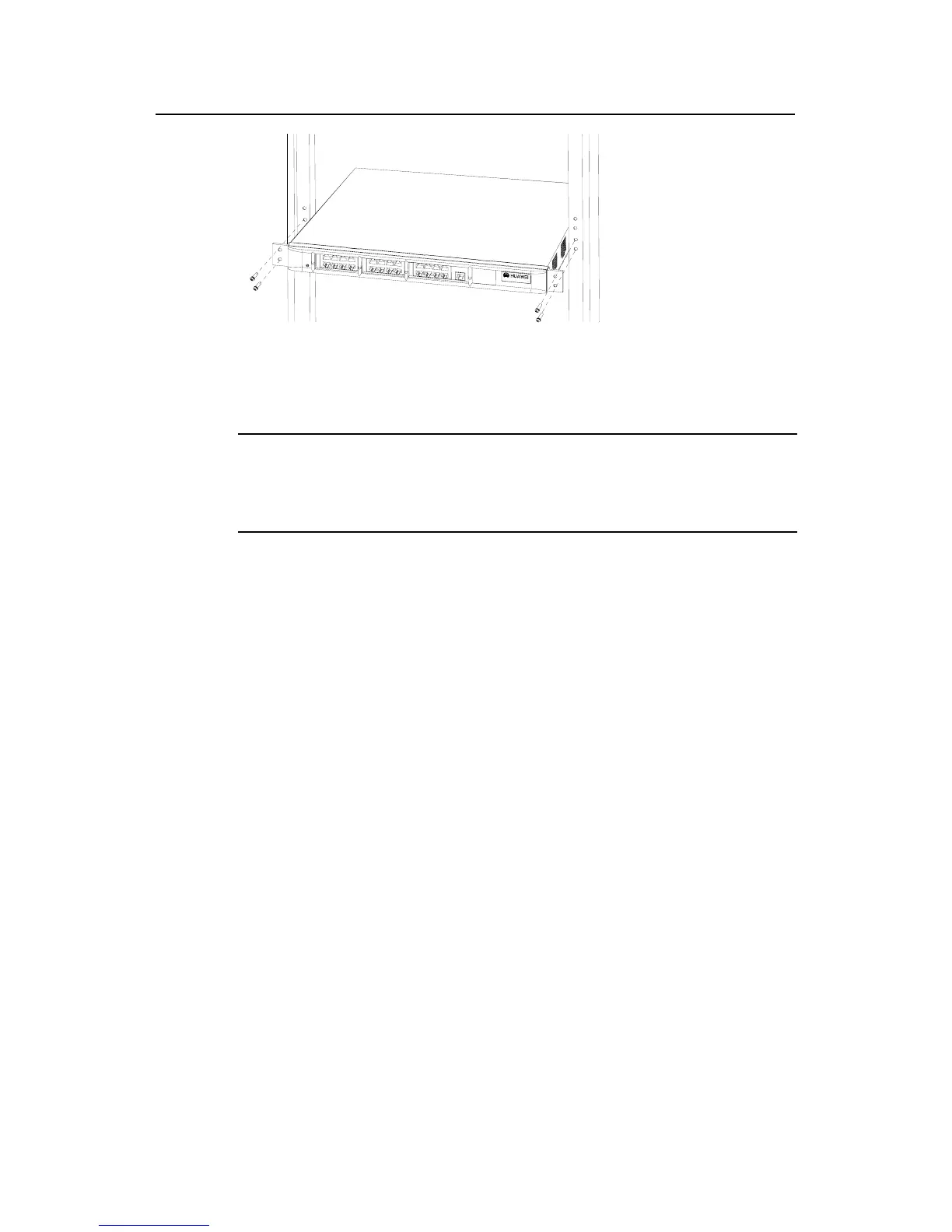

Figure 3-4 Mounting the switch (into a 19-inch rack)
Note:
The mounting brackets are used for fixing rather than weight bearing. In a 19-inch standard rack, the
weight of the switch is supported by the shelf beneath it.
3.3.2 Mounting the Switch on a Workbench
When a 19-inch standard rack is not available, you can simply place the switch on a
clean workbench but should make sure:
z The workbench is stable and well grounded.
z A clearance of about 10 centimeters is reserved on each side of the switch for
heat dissipation.
z No heavy object is placed on the top of the switch.
3.4 Connection of Power Cord and Ground Wire
(S2016-EI/S2403H-EI)
3.4.1 Connecting AC Power Cord (S2016-EI-AC/S2403-EI-AC)
I. AC power socket (recommended)
You are recommended to use a monophase three-wire power socket with a neutral
point or a multi-functional power socket for computers. The neutral point of the power
in a building must be well grounded. Normally, the neutral point of the power supply
system in a building was buried in the ground during the construction and wiring. Still,
you should make sure of that.
