Quidway S2000-EI Series Ethernet Switches Chapter 3 Installation
3-10

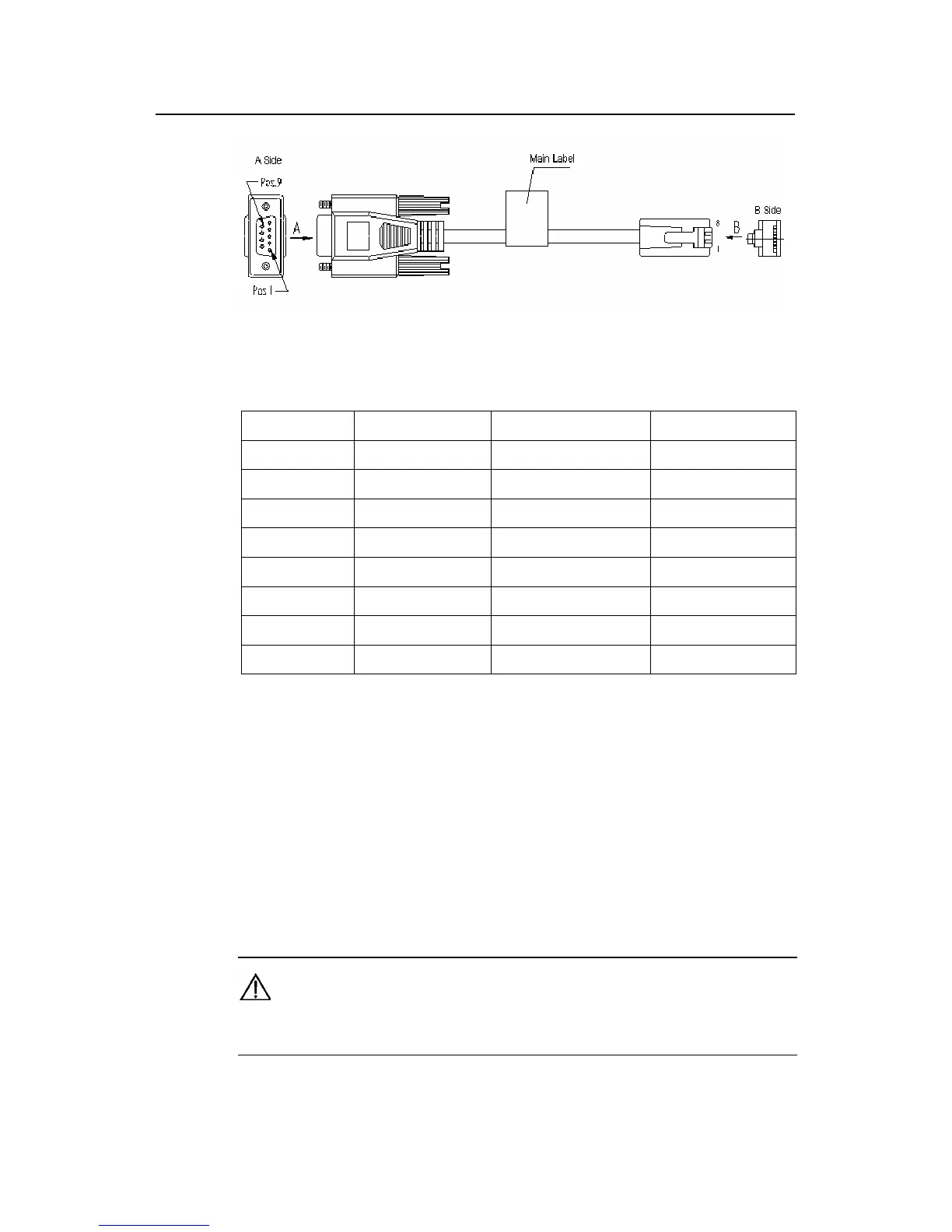

Figure 3-12 Console cable
Table 3-1 Console cable pinouts
RJ-45 Signal Direction DB-9
1 RTS ← 7
2 DTR ← 4
3 TXD ← 3
4 CD → 1
5 GND ---- 5
6 RXD → 2
7 DSR → 6
8 CTS → 8
3.5.2 Connecting Console Cable
Follow these steps to connect a terminal device, a PC for example, to the switch:
Step 1: Plug the DB-9 female connector of the Console cable to the serial port of the
PC where the switch is to be configured.
Step 2: Connect the RJ-45 connector of the Console cable to the Console port of the
switch.
Caution:
Identify the port before plugging the connector into it.
