Quidway S2000-EI Series Ethernet Switches Chapter 7 Optional Interface Modules
7-1
Chapter 7 Optional Interface Modules
7.1 1-Port 100Base-FX Modules
Following are available 1-port 100Base-FX module options:
1-port 100Base-FX single-mode module provides one 100Base-FX single-mode
optical port.
1-port 100Base-FX single-mode medium-haul module provides one 100Base-FX
single-mode medium-haul optical port.
1-port 100Base-FX multi-mode module provides one 100Base-FX multi-mode optical
port.
All these modules run in 100Base-FX full duplex mode.
7.1.1 Module Panel and LEDs
 Note:
All these 1-port 100Base-FX modules are looked similar. The following description is based on the 1-port
100Base-FX multi-mode module.
Following is the panel of the 1-port 100Base-FX multi-mode module for S2016-EI:

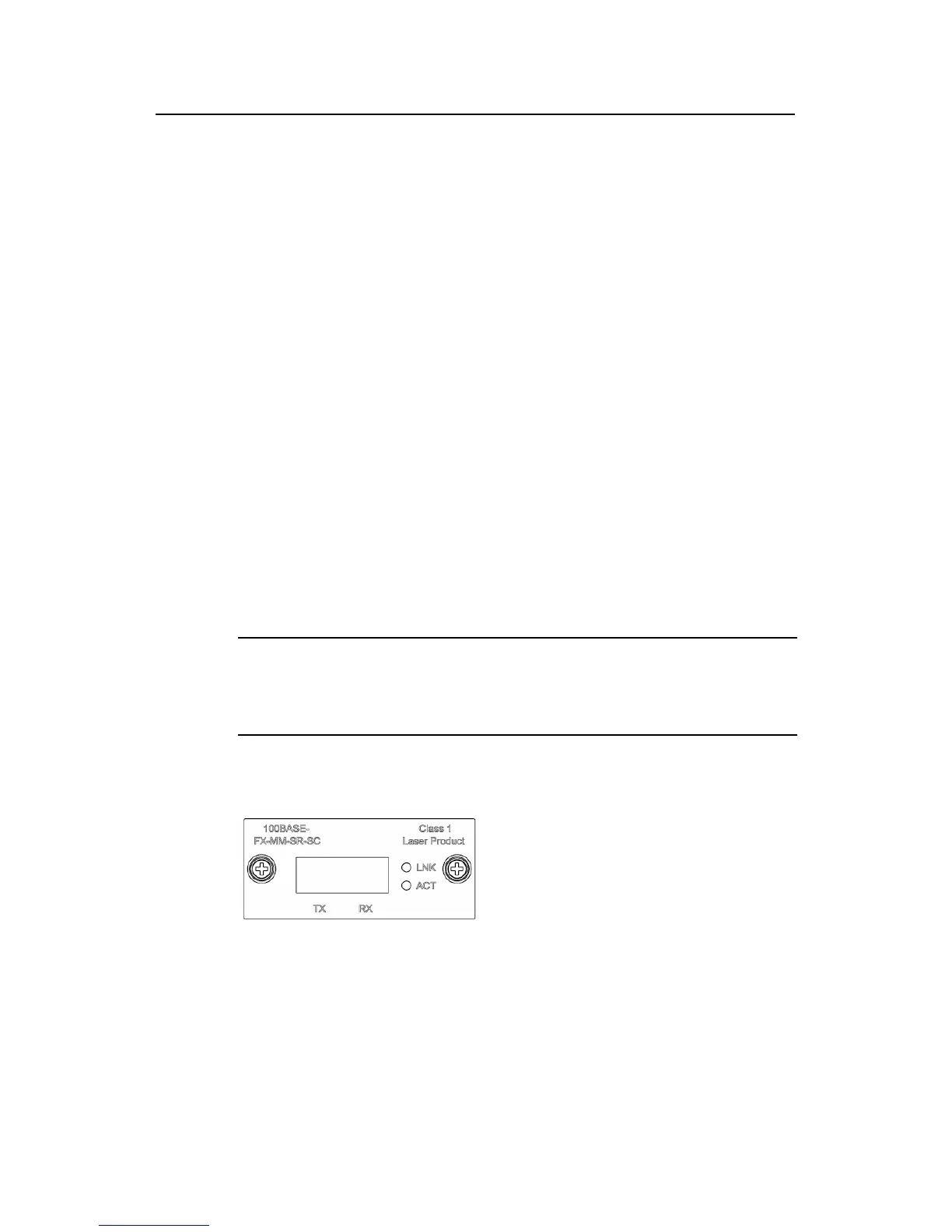

Figure 7-1 11-port 100Base-FX multi-mode module panel
The meaning of panel LEDs is as follows:
