Huawei Quidway S2000-EI Series

Installation Manual
Quidway S2000-EI Series Ethernet Switches Chapter 1 Product Overview
1-1
Chapter 1 Product Overview
1.1 S2008-EI Ethernet Switch
1.1.1 Appearance

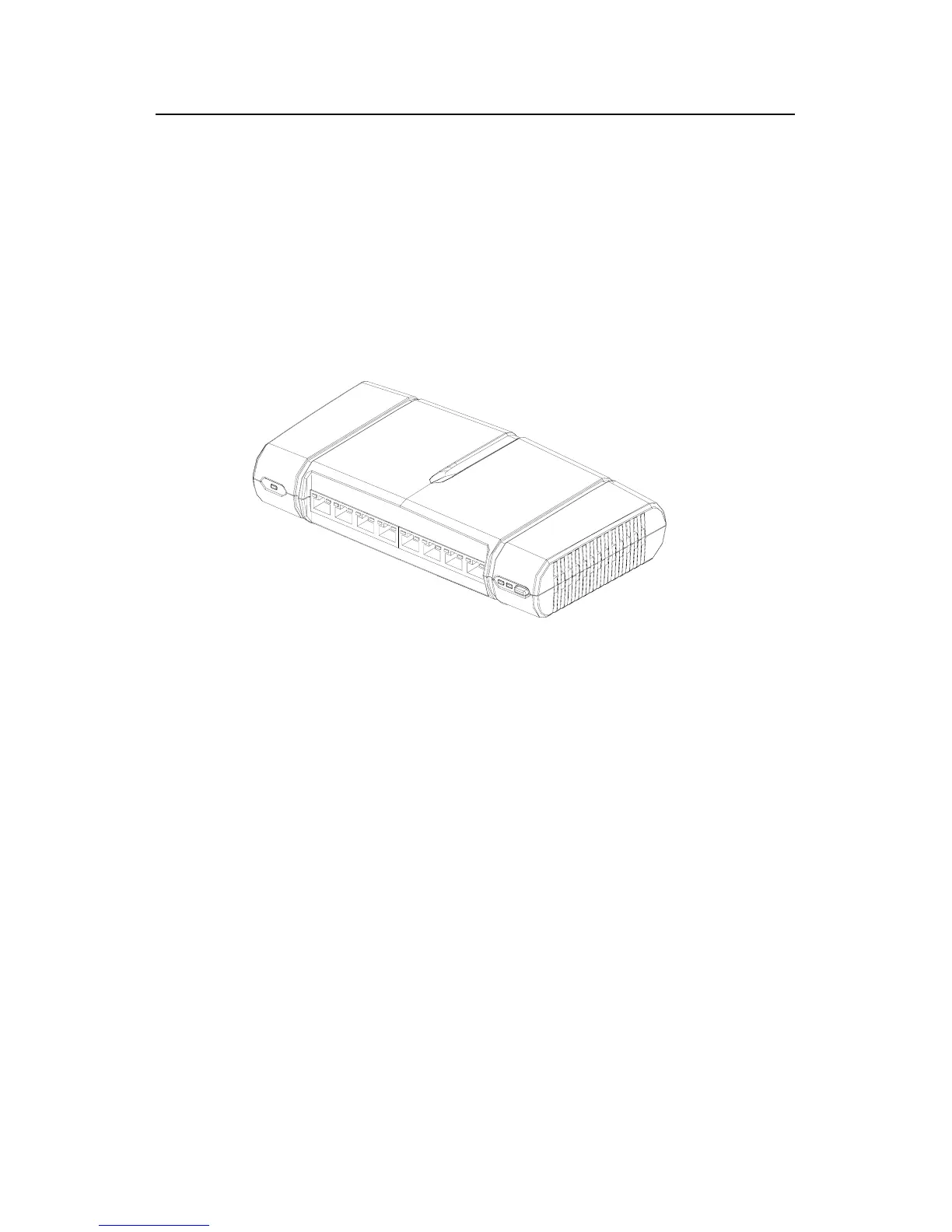

Figure 1-1 S2008-EI Switch
1.1.2 Front View
I. Front panel
On S2008-EI front panel distribute one power LED (POWER), eight fixed
10Base-T/100Base-TX auto-negotiation electrical ports, two status mode LEDs (A/L
and D/S), and one status mode control button (referred to as MODE button
throughout the rest of the manual). The eight fixed ports are RJ-45 connectors, each
with one yellow LED on the left and one green LED on the right. See the following
figure.
