Installation Manual
Quidway S2000-EI Series Ethernet Switches Chapter 4 Powering on Switch for the First Time
4-1
Chapter 4 Powering on Switch for the First Time
4.1 Establish configuration environment
Setting up the configuration environment (the following figure is as reference):
z Terminal (a PC in this example) is connected to the Console port of the switch
through a Console cable.
PC
Console cable
Switch
Connect to the Console port
Connect to the serial port
PC
Console cable
Switch
Connect to the Console port
Connect to the serial port

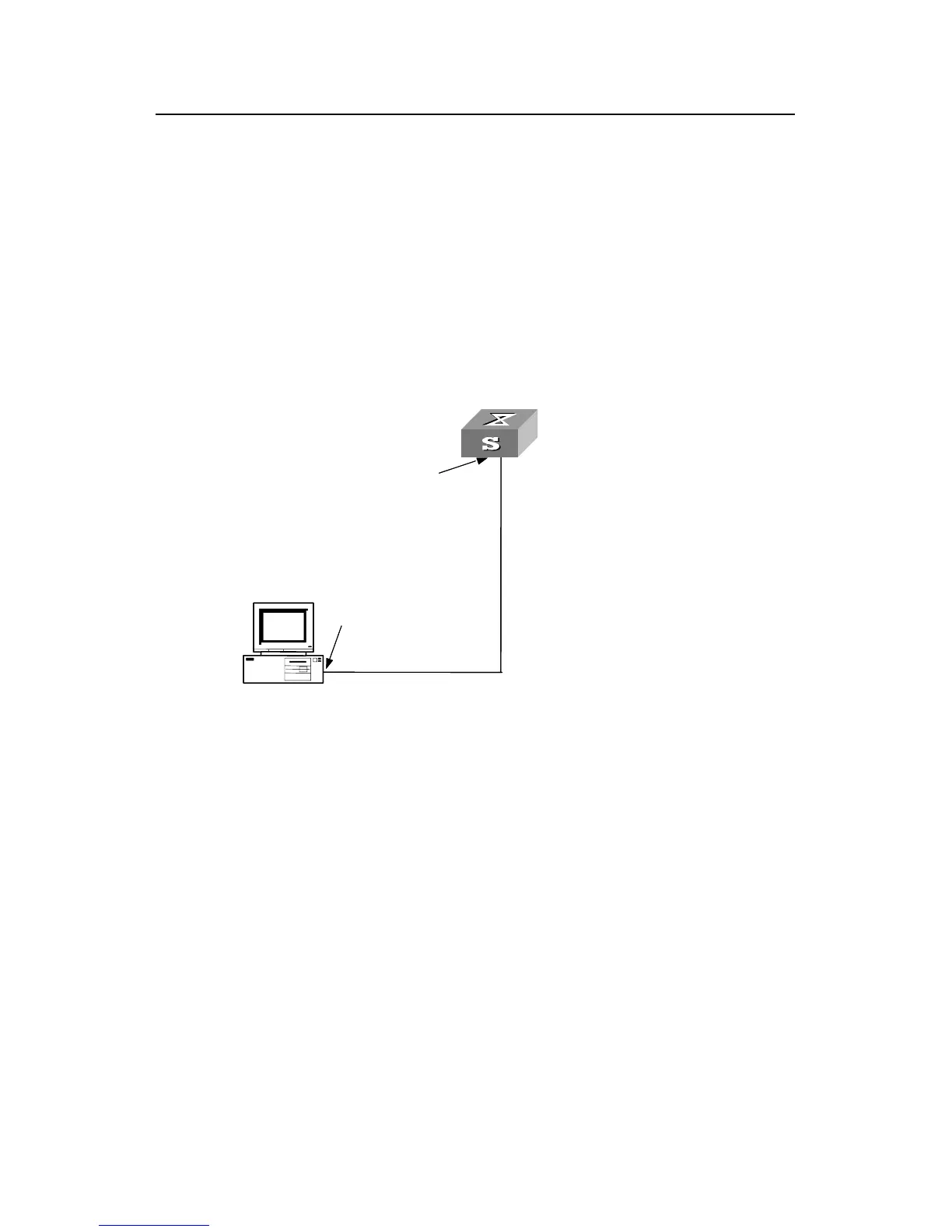

Figure 4-1 Configuration networking when powering on the switch for the first time
4.2 Connecting the Console Cable
Step 1: Plug the DB-9 or DB-25 female connector of Console cable to the serial port
of the PC where the switch is to be configured.
Step 2: Connect the RJ-45 connector of Console cable to the Console port of the
switch.
4.3 Setting Terminal Parameters
Step 1: Start the PC and run the terminal emulation program such as the Terminal of
Windows3.1 or the Hyper Terminal of Windows95/98/NT.
Step 2: Set terminal parameters (For example, set the hyper terminal parameters in
Windows98).
