Huawei Quidway S2000-EI Series User Manual

Installation Manual
Quidway S2000-EI Series Ethernet Switches Chapter 1 Product Overview
1-8
Table 1-8 Console port attributes
Attribute Description
Connector RJ-45
Port standard Asynchronous EIA/TIA-232
Baud rate 9600 (default)
Service supported
z
Connection to the ASCII terminal
z
Connection to the serial port of a local terminal (which can be a PC) or a
remote terminal (through a pair of Modems) and running terminal
emulation program on the connected terminal

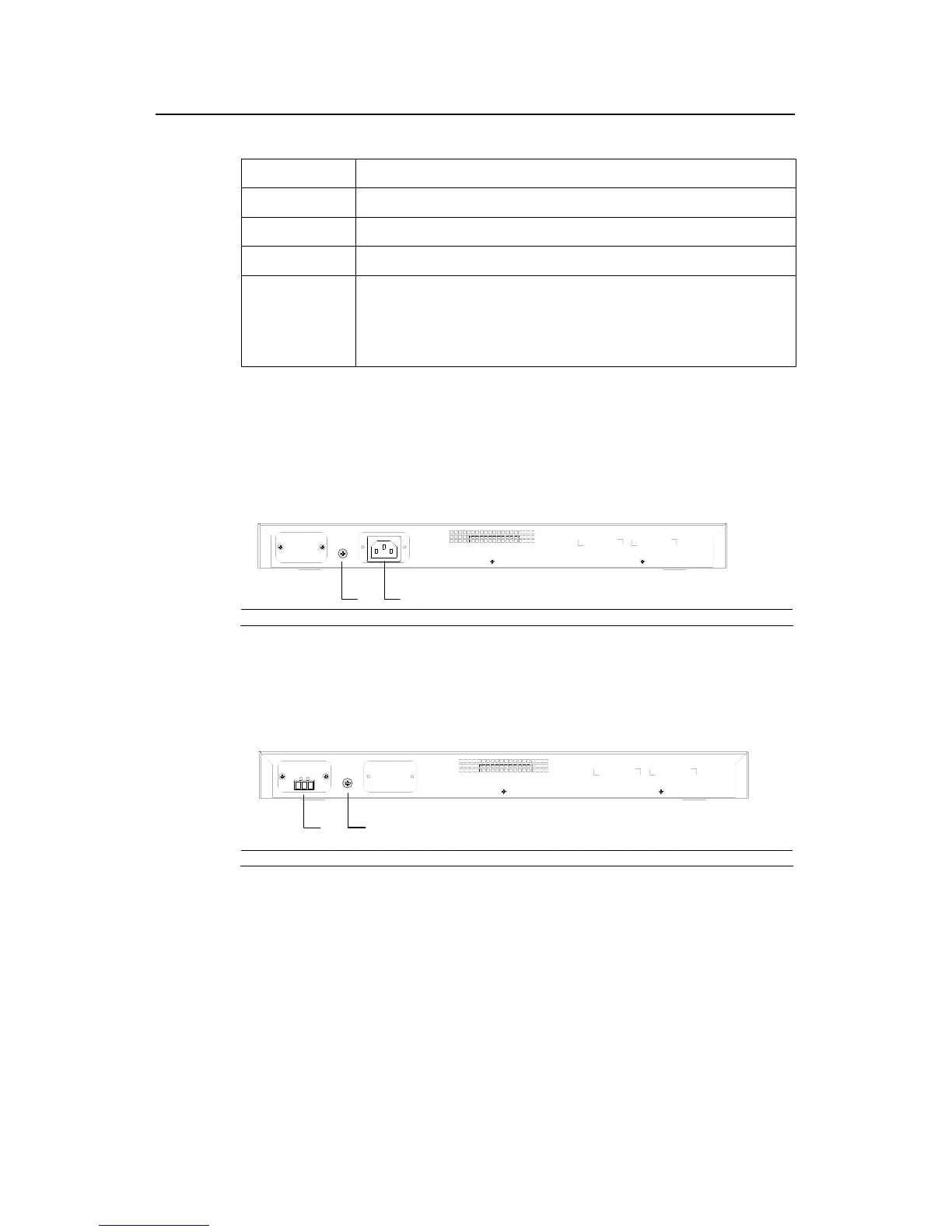

1.2.3 Rear View
I. S2016-EI-AC rear panel
(1)
(2)
(1)
(2)
(1) Grounding screw (2) AC power socket
Figure 1-6 S2016-EI-AC rear panel
II. S2016-EI-DC rear panel
(1)
(2)
(1)
(2)
(1) power socket (2) Grounding screw
Figure 1-7 S2016-EI-DC rear panel
1.2.4 Optional Modules
z 1-port 100Base-FX single-mode module
z 1-port 100Base-FX multi-mode module
z 1-port 100Base-FX single-mode medium-haul module
z 1-port 100Base-T PoE (Power over Ethernet) interface module
