Installation Manual
Quidway S2000-EI Series Ethernet Switches Chapter 1 Product Overview
1-6

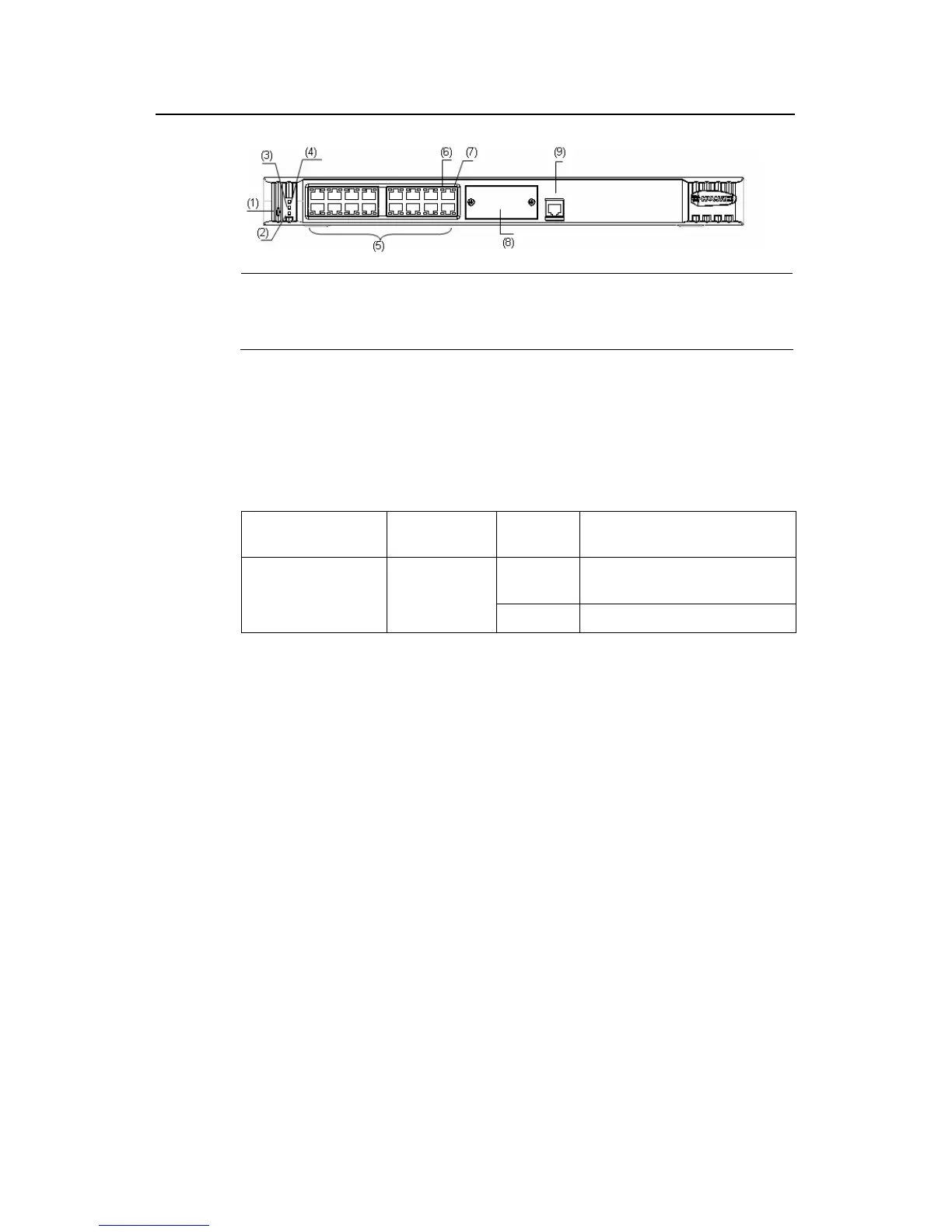

(1) MODE button (2) D/S mode LED
(3) A/L mode LED (4) PWR LED
(5) 16 fixed electrical ports (6) Port LED (left)
(7) Port LED (right) (8) Expansion slot
(9) Console port
Figure 1-5 Front panel of S2016-EI
II. LEDs on S2016-EI front panel
z PWR LED
Table 1-5 PWR LED on S2016-EI front panel
LED
Mark on the
front panel
Status Description
ON
The switch is being powered
normally.
PWR LED PWR
OFF The switch is not powered.
z Port LEDs
Before you can understand what the port LEDs mean, you should be aware of the
functions and relationships of the MODE button and A/L and D/S mode LEDs:
1)
Only one of the A/L and D/S mode LEDs can light at one time. You can
toggle between them using the MODE LED. If A/L mode LED is ON, the
yellow/green LED for each port indicates the ACTIVE/LINK state of the port;
if D/S mode LED is ON, the mode of DUPLEX/SPEED.
2) A/L mode LED lights each time the switch is initialized.
3) D/S mode LED can light for a maximum of 45 seconds each time after you
toggle to it; and after that, A/L mode resumes. You can also toggle to the A/L
mode before that time by pressing the MODE button.
z By toggling between the A/L and D/S mode LEDs using the MODE button, you
can gather information about ACTIVE/LINK state and DUPLEX/SPEED using the
port LEDs with reference to the following table:
