Quidway S2000-EI Series Ethernet Switches Chapter 3 Installation
3-8
(1)
(3)
(2)
(4)
(5)
(1)
(3)
(2)
(4)
(5)
(1) Power input (2) Grounding screw
(3) Ground wire (4) Grounding strip
(5) Ethernet switch

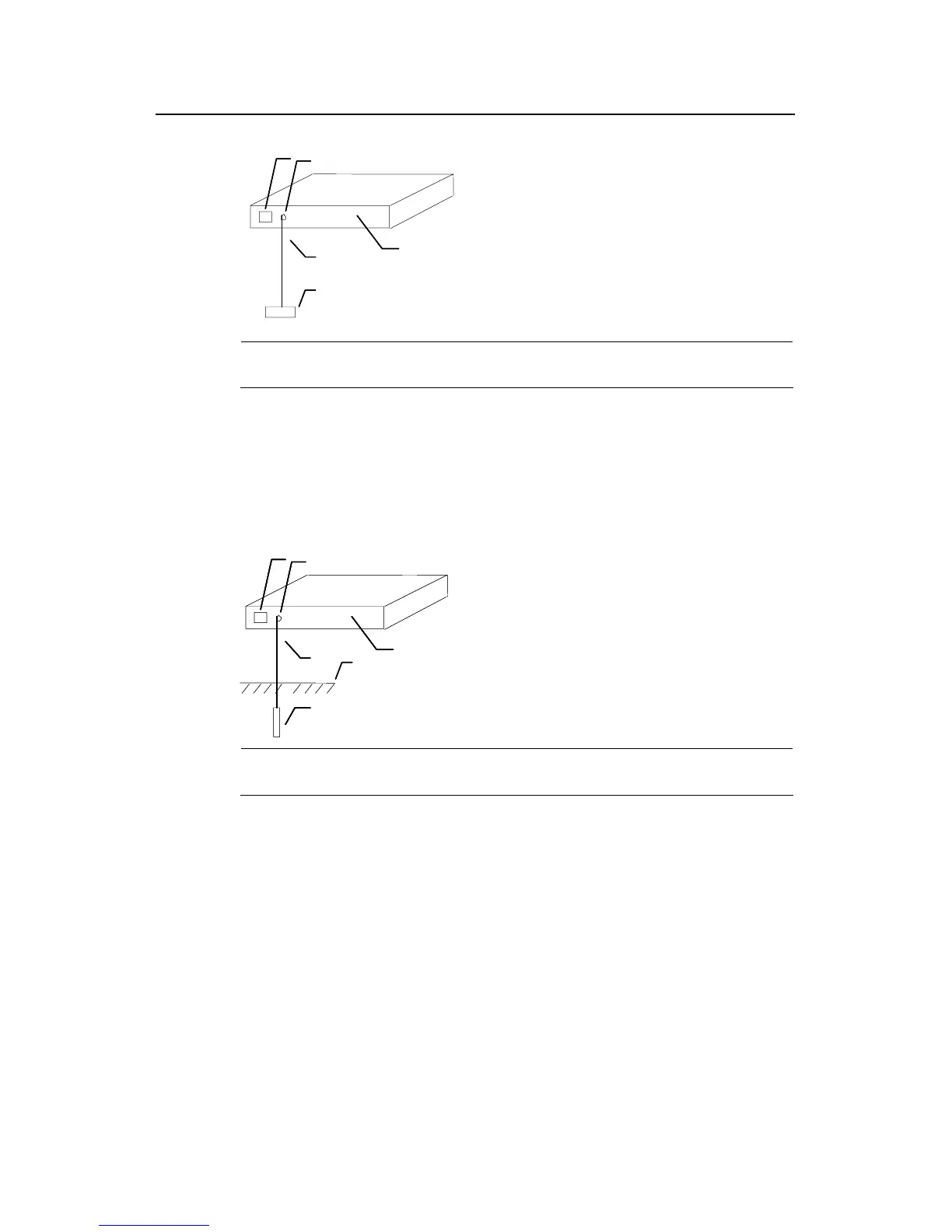

Figure 3-8 Grounding through a grounding strip
z When there is no grounding strip but earth near the equipment room that allows
a grounding body to be buried, hammer an angle iron/steel pipe longer than 0.5
m into the earth, weld the yellow-green ground wire of the switch onto the angle
iron/steel pipe, and process the joint against erosion.
(1)
(3)
(2)
(4)
(5)
(6)
(1)
(3)
(2)
(4)
(5)
(1)
(3)
(2)
(4)
(5)
(6)
(1) Power input (2) Grounding screw
(3) Ground wire (4) Angle iron
(5) Ethernet switch (6) Earth
Figure 3-9 Grounding the switch by burying the grounding body into the earth
z For an AC-powered switch, if none of the above two conditions is available,
ground it through the PE wire of the AC power supply. In this case, make sure
this PE wire is well connected to the ground at the power distribution room or AC
transformer side.
