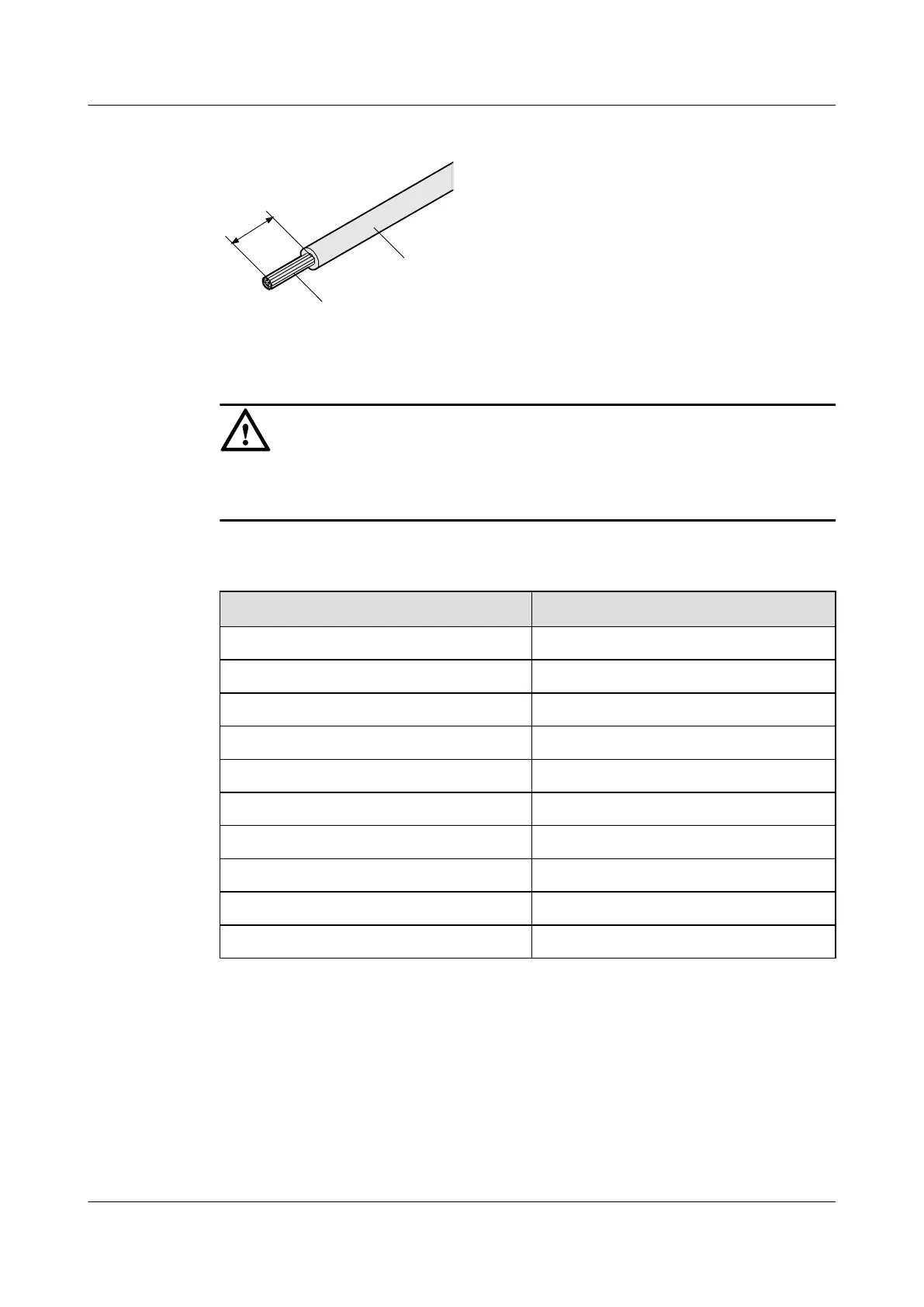

Figure A-3 Peeling the insulation layer off the power cable
CAUTION
When peeling off the insulation layer of the power cable, ensure that the conductor of the power
cable is not scratched.
Table A-2 Mapping between the cross-sectional area and the length of insulation layer to be
peeled off (L1)
Cross-sectional Area (mm
2
)
L1 (mm)
1 8
1.5 10
2.5 10
4 12
6 14
10 15
16 15
25 18
35 19
50 26
Step 2 Insert the conductor of the peeled power cable into the cord end terminal, as shown in Figure
A-4.
SmartAX MA5612 Multi-service Access Module
Maintenance Guide A Appendix
Issue 01 (2012-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
270
