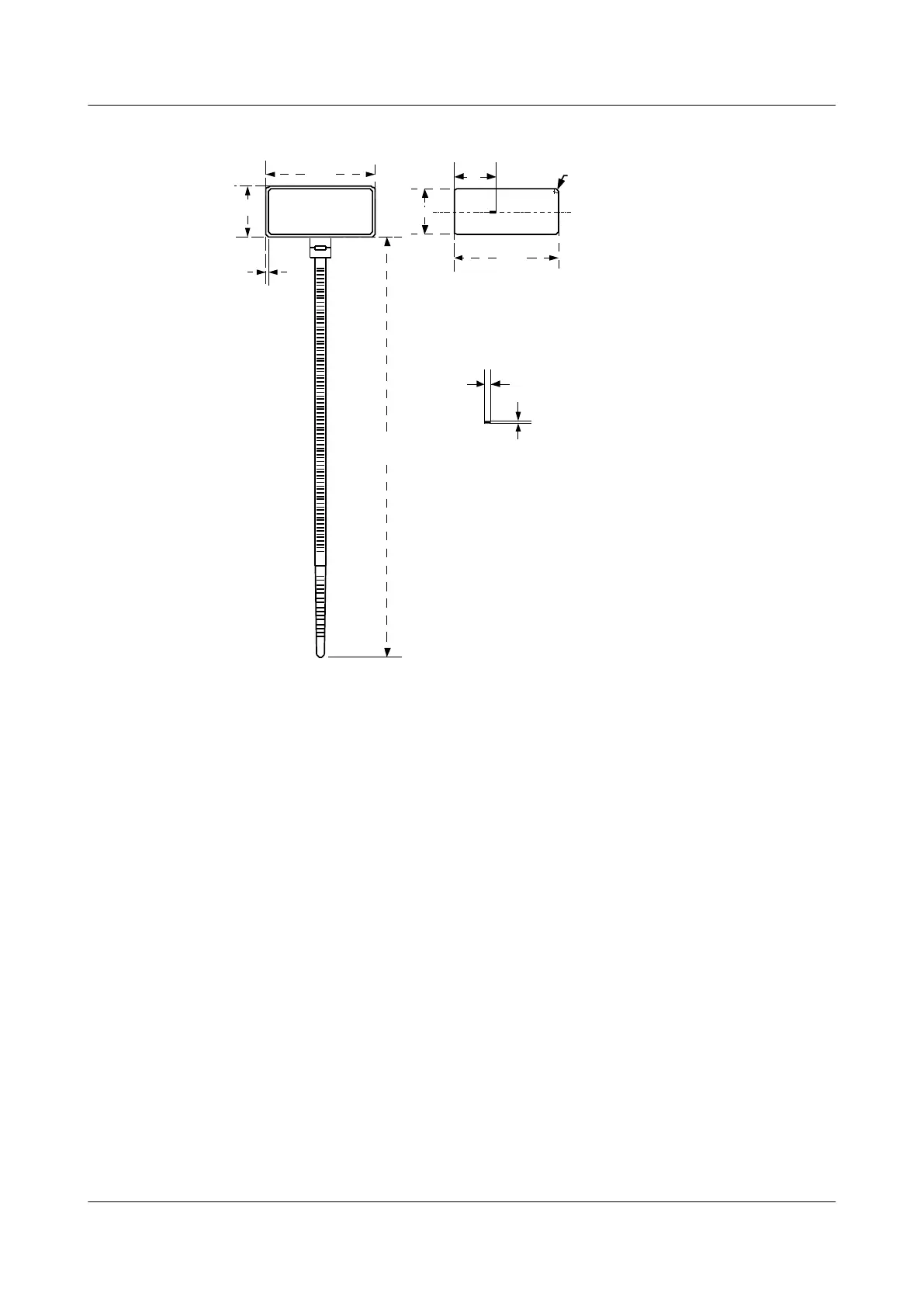

Figure A-48 Label for the power cable
1.5
0.6
100
26.2
12.2
0.6
10
11
TO:
25
R1.0
Cable tie
Label paper
Dividing line on the
label
Unit: mm
A.3.2 Filling Labels
You can print the contents on the labels by using a printer or write the contents on the labels by
using an oil marker. For higher efficiency and nicer layout, it is recommended that you use a
printer.
Template for the Printing
You can obtain the template through the following two ways:
l Download the template from the technical support website "support.huawei.com". The path
is as follows: Related Links > Engineering Service > Engineering Quality > Quality
Standard and Template.
l Obtain the template from the Huawei local representative.
When using the Microsoft Word template, pay attention to the following requirements:
l You can modify the contents on the template according to the positions of the cables
installed on site. However, the settings of center, direction, and fonts of the characters on
the label cannot be changed.
l Generally, the size of the characters is not modified. When there are a lot of contents to be
filled in, change the font size of the characters. Make sure that the contents are clear and
legible.
SmartAX MA5612 Multi-service Access Module
Maintenance Guide A Appendix
Issue 01 (2012-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
297
