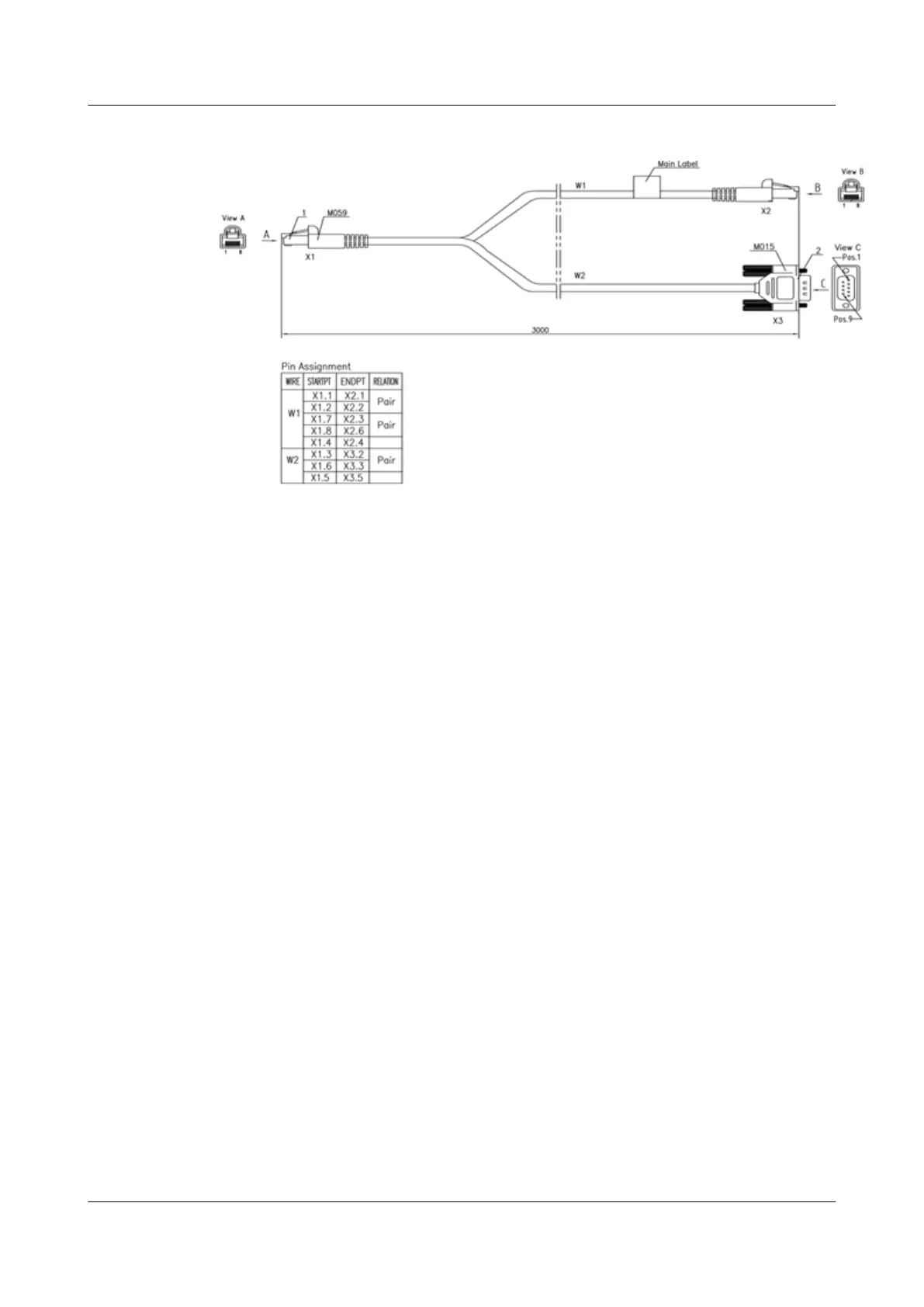

Figure A-2 Wire sequence of a console-Ethernet integrated cable
A.2.2 Making External Power Cables and Ground Cables with Cord
End Terminals
This topic describes how to make external power cables and ground cables with cord end
terminals.
Recommended Tools and Materials
The recommended tools and materials for making external power cables and ground cables with
cord end terminals are as follows:
l Wire crimping tool
l Hydraulic clump
l Power cables
l Insulating tape
l Paper cutter
l Diagonal pliers
l Wire clipper
l Cord end terminals
Procedure
Step 1 Use the paper cutter to peel off a section of the insulation layer from the power cable based on
the cross-sectional areas of the power cable conductors. A section of the power cable conductor
with a length of L1 is exposed, as shown in Figure A-3. Table A-2 lists the recommended lengths
of the insulation layer to be peeled off (L1).
