Label for the Signal Cable
The label for the signal cable is L-shaped and of a fixed size. Figure A-47 shows the label for
the signal cable.

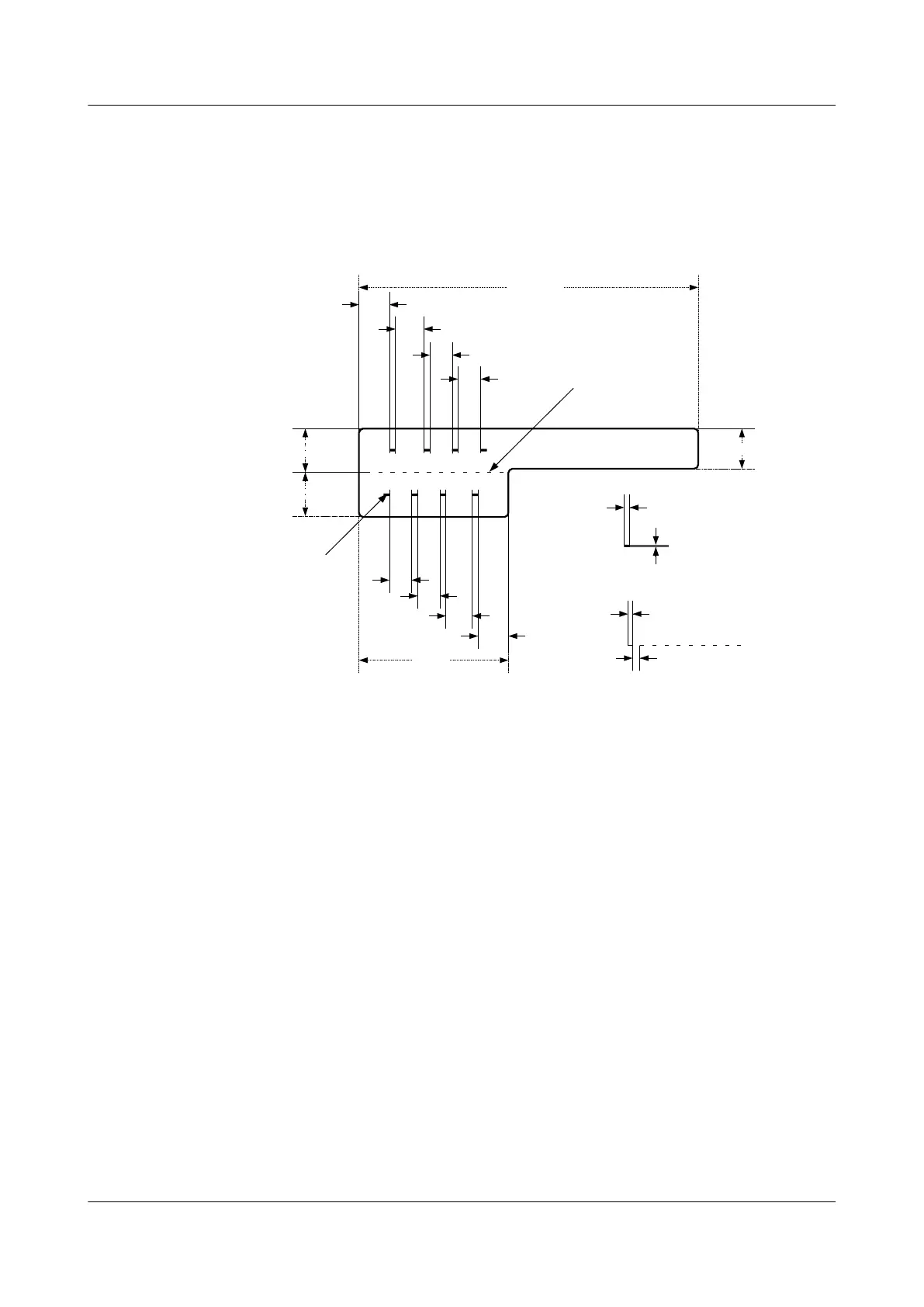

Figure A-47 Label for the signal cable
TO:
84.0
7.5
7.0
5.5
5.5
11.0
11.0
37.0
7.5
7.0
5.5
5.5
1.5
0.6
1.0
2.0
Dividing line
Dotted line
10.0
Dividing line
Dotted line
Unit: mm
The dividing lines on the label specify the position of a cable. For example, there is a dividing
line between the cabinet number and the subrack number, and a dividing line between the subrack
number and the slot number. The size of the dividing line is 1.5 mm x 0.6 mm, and its color is
PANTONE 656c (light blue).
The dotted lines mark the position for folding the label when you attach it to the cable.
There is a mark "TO:" (upside down in the figure) at the lower right corner of the label. The
mark identifies the peer end of the cable to which the label is attached.
Label for the Power Cable
The label for the power cable is attached to the identification plate on the cable ties. The size of
the bulge around the identification plate is 0.2 mm x 0.6 mm (symmetric on both sides), as shown
in Figure A-48.
