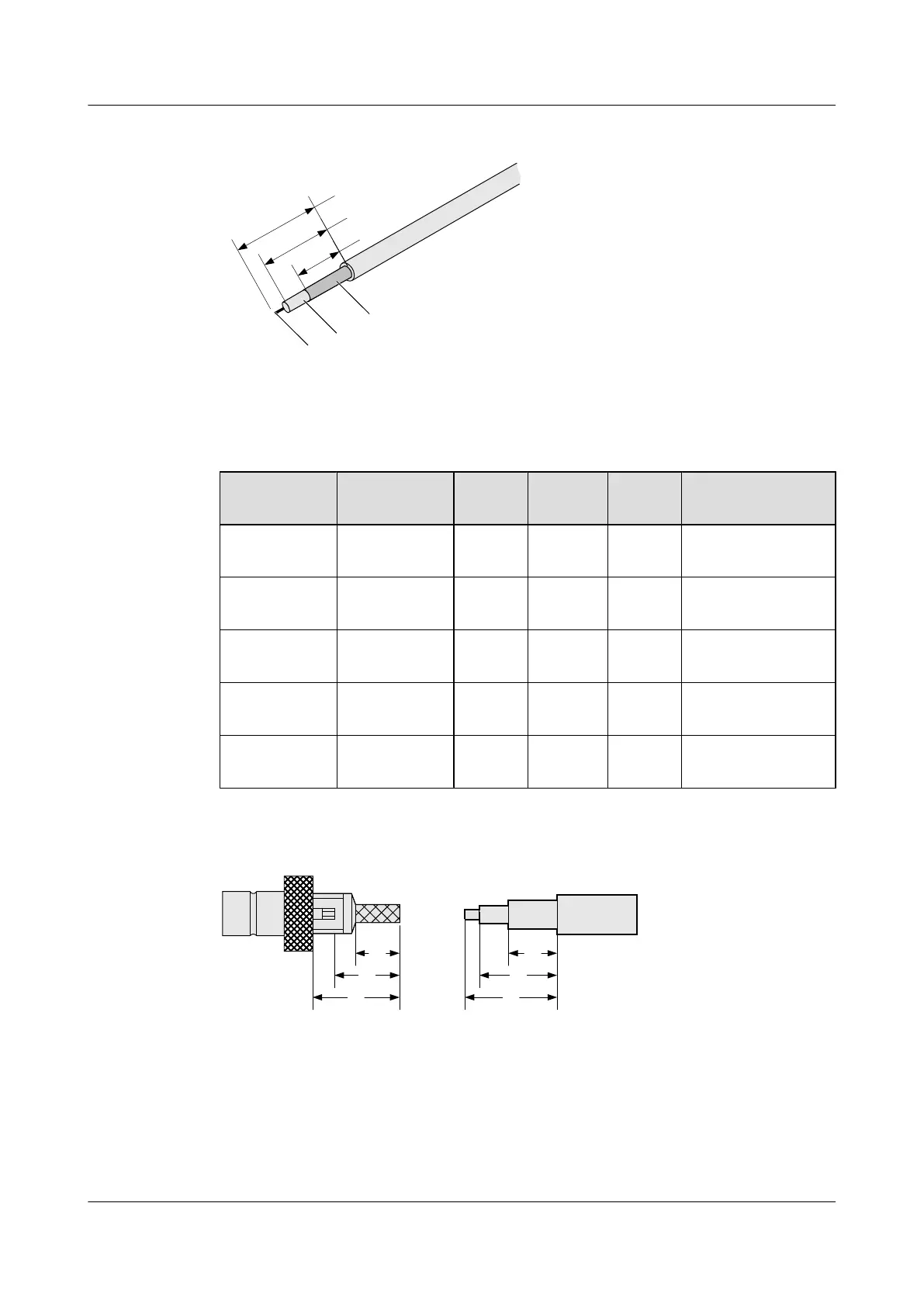

Figure A-30 Structure of the coaxial cable
D
E
F
L1
L2
L3
Table A-6 Peeled lengths of commonly used coaxial cables
Cable Type
External
Diameter
L1
(mm) L2 (mm)
L3
(mm) Remarks
SYFVZ-75-1-
1(A)
2.2 mm 5-6 7-9 10-12 -
SYV-75-2-2 3.9 mm 5-6 7-9 10-12 Dedicated to national
backbone 155M-I
SYV-75-4-2 6.7 mm 5-6 7-9 10-12 Dedicated to national
backbone 155M-III
SFYV-75-2-1 3.2 mm 5-6 7-9 10-12 Dedicated to national
backbone-II
SFYV-75-2-2 4.4 mm 5-6 7-9 10-12 Dedicated to national
backbone 155M-II
Figure A-31 Lengths of connectors and the peeled part of cables
L3
L2
L1
L3
L2
L1
Step 2 Put a coaxial cable into press-fitting sleeve A, as shown in Figure A-32.
