2.2.2 Battery Module

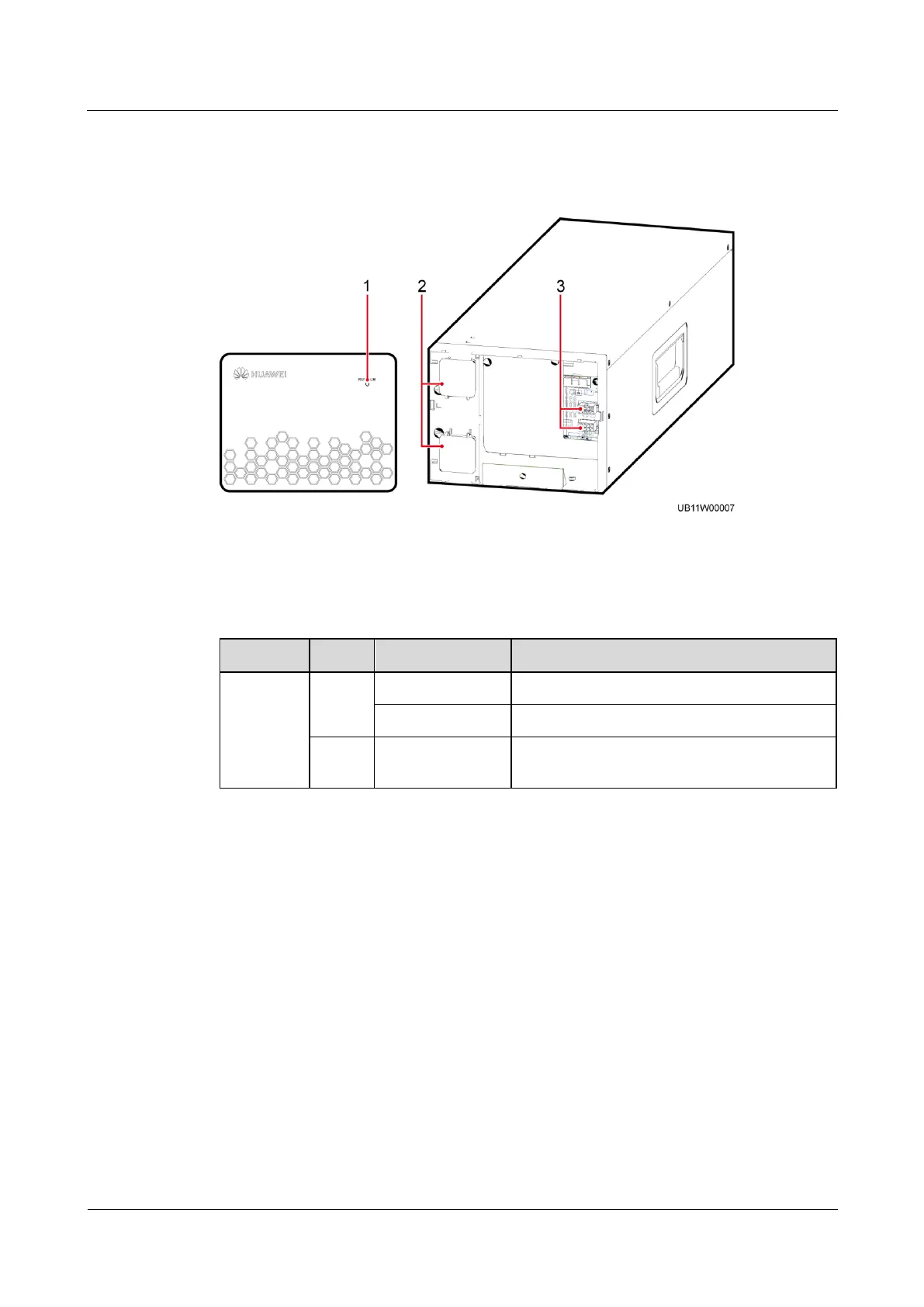

Figure 2-3 Battery module
(1) Running indicator
(2) Battery wiring terminals
(3) Cascading terminals
Table 2-2 Indicator description
Indicator
Status
Color
Description
Indicator
On
Green
The battery module is normal.
Red
The battery module is faulty.
Off
-
The communications cable to the battery
module is not connected.
Function
The battery module can be connected in series to adjust the system voltage. All external ports
of the module are located at the front to facilitate installation and maintenance.
Specifications

Dimensions (H x W x D): 155.5 mm x 200.5 mm x 592 mm

Weight: ≤ 30 kg

Rated voltage: 64 V

Rated capacity: 40 Ah

Rated discharge current: 160 A
