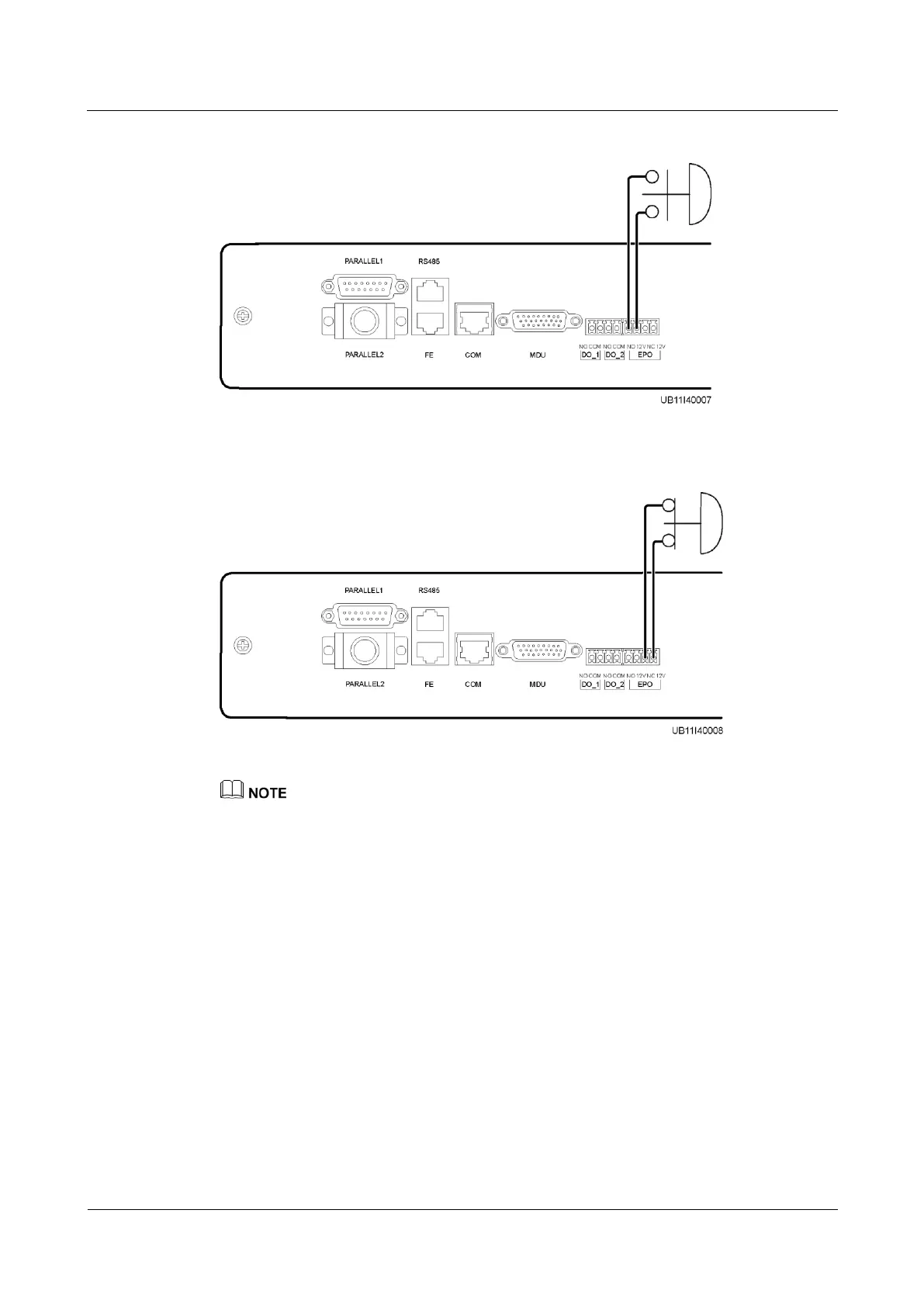

Figure 3-24 Cable connection for an NO EPO switch
Figure 3-25 Cable connection for an NC EPO switch
When the EPO switch is in the NC state, remove the jumper between EPO_NC and EPO_12V
before connection. When the EPO switch is turned off, EPO is triggered.
When the EPO switch is in the NO state, ensure that the jumper is connected between EPO_NC and
EPO_12V. When the EPO switch is turned on, EPO is triggered.
3.2.3.5 Installing Output Power Cables
Context
