4 User Interface
4.1 LCD Interface
4.1.1 Main Menu screen
User interfaces provided in this document correspond to the monitor display module (MDU)
version V100R003C10B004SP00 and are for reference only.
The LCD screen is divided into three parts: status bar, alarm bar and information area.

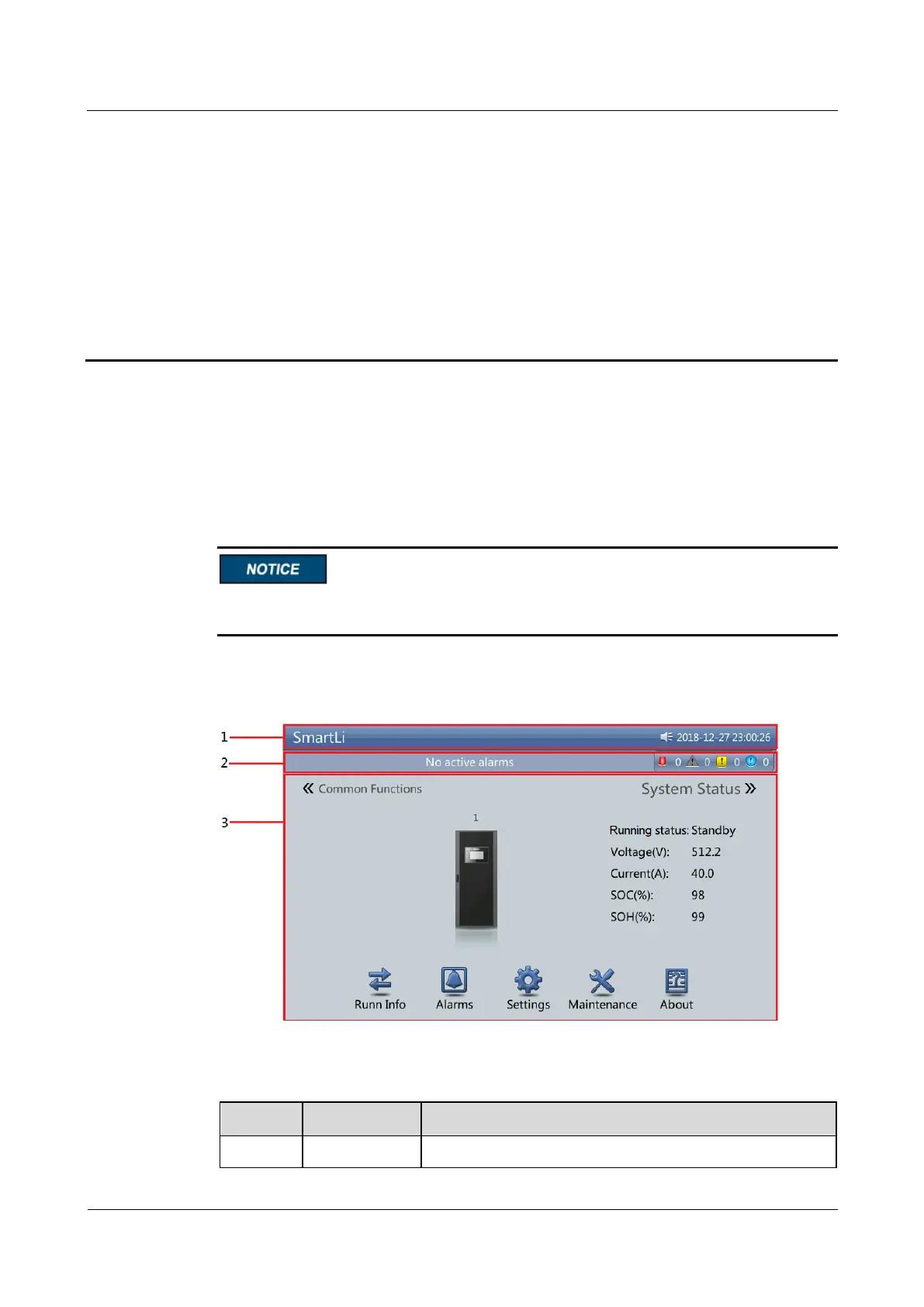

Figure 4-1 Main menu screen
Table 4-1 Main menu screen description
Number
Area
Function
1
Status bar
Displays the SmartLi model, current date and time, USB
