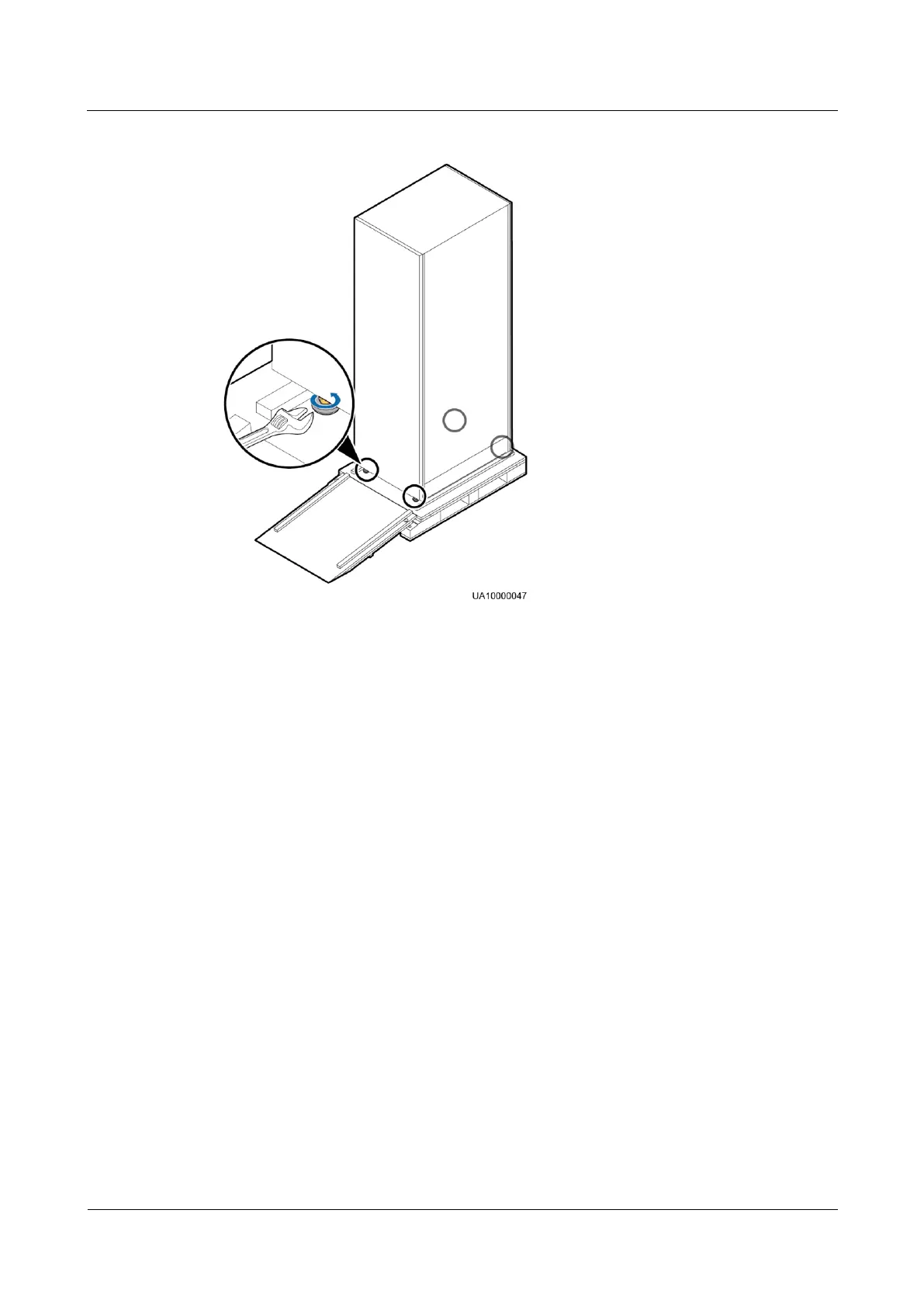

Figure 3-3 Raising anchor bolts
Step 9 Push the cabinet along the sliding plate to the floor.
----End
3.2 Single SmartLi Installation
3.2.1 Installing a Fire Cylinder
Procedure
Step 1 Check the fire cylinder and all components for any damage, abrasion, or corrosion. If there is
any visible abrasion or corrosion, replace the damaged components and all corroded
components.
Step 2 Fill the fire cylinder with extinguishant. The recommended extinguishant is
heptafluoropropane or perfluorohexanone.
Step 3 Check the status of the fire cylinder.
Check that the valve is closed (vertical to the cylinder).
Check that the reading of the pressure gauge on the fire cylinder is greater than 1.6 MPa
and the pointer is in the green zone.
Step 4 Remove the rear panel of the cabinet.
Step 5 Install the fire cylinder.
