2.2.3 Battery Management Module

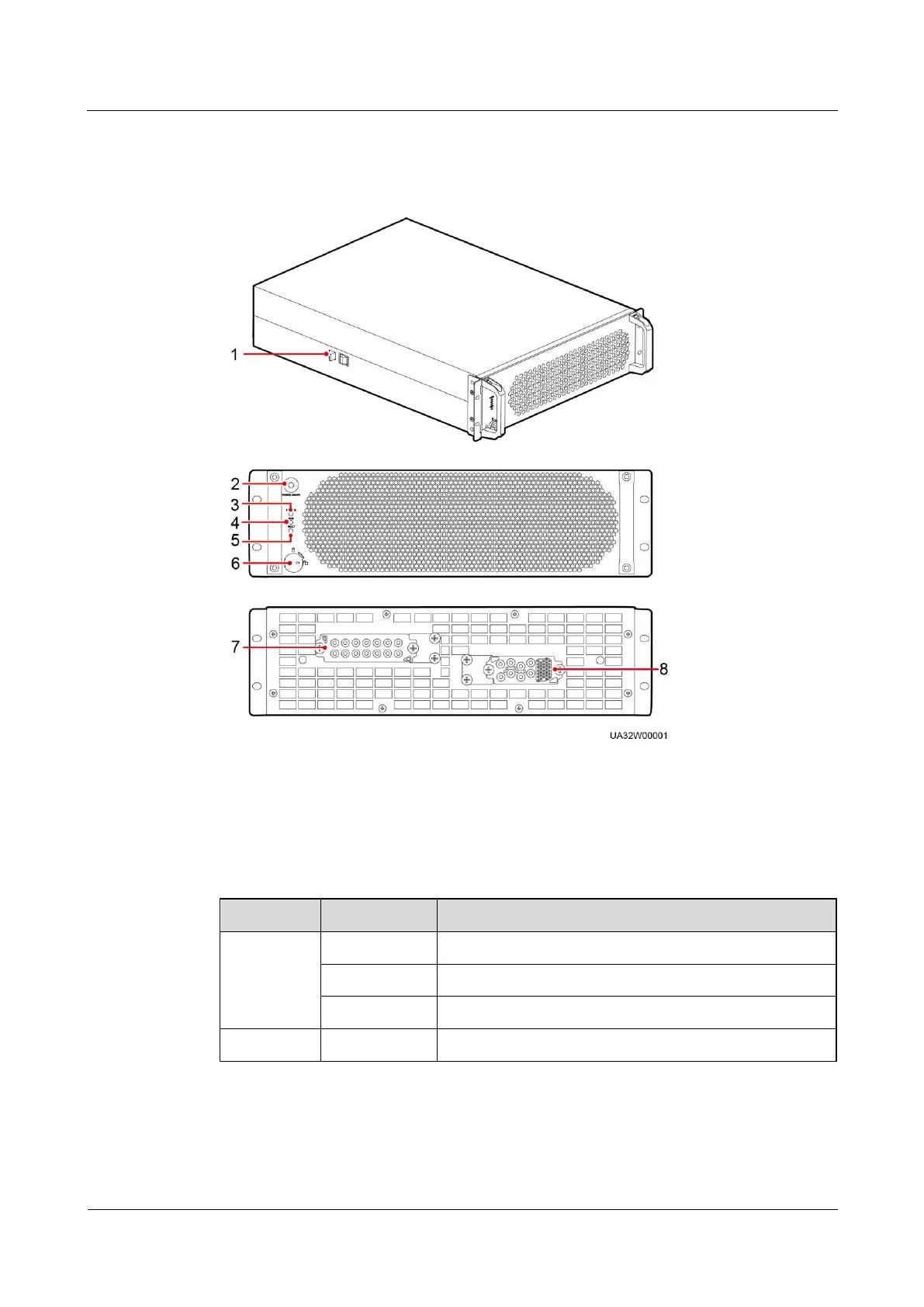

Figure 2-4 Battery management module
(1) Positioning lock
(2) Power switch
(3) Run indicator
(4) Alarm indicator
(5) Fault indicator
(6) Ready switch
(7) Output port
(8) Input port
Table 2-3 Indicator description
Status
Color
Description
On
Green
The battery cabinet is working properly.
Yellow
The battery cabinet generates a minor alarm.
Red
The battery cabinet generates a critical alarm.
Off
-
The battery cabinet is shut down.
