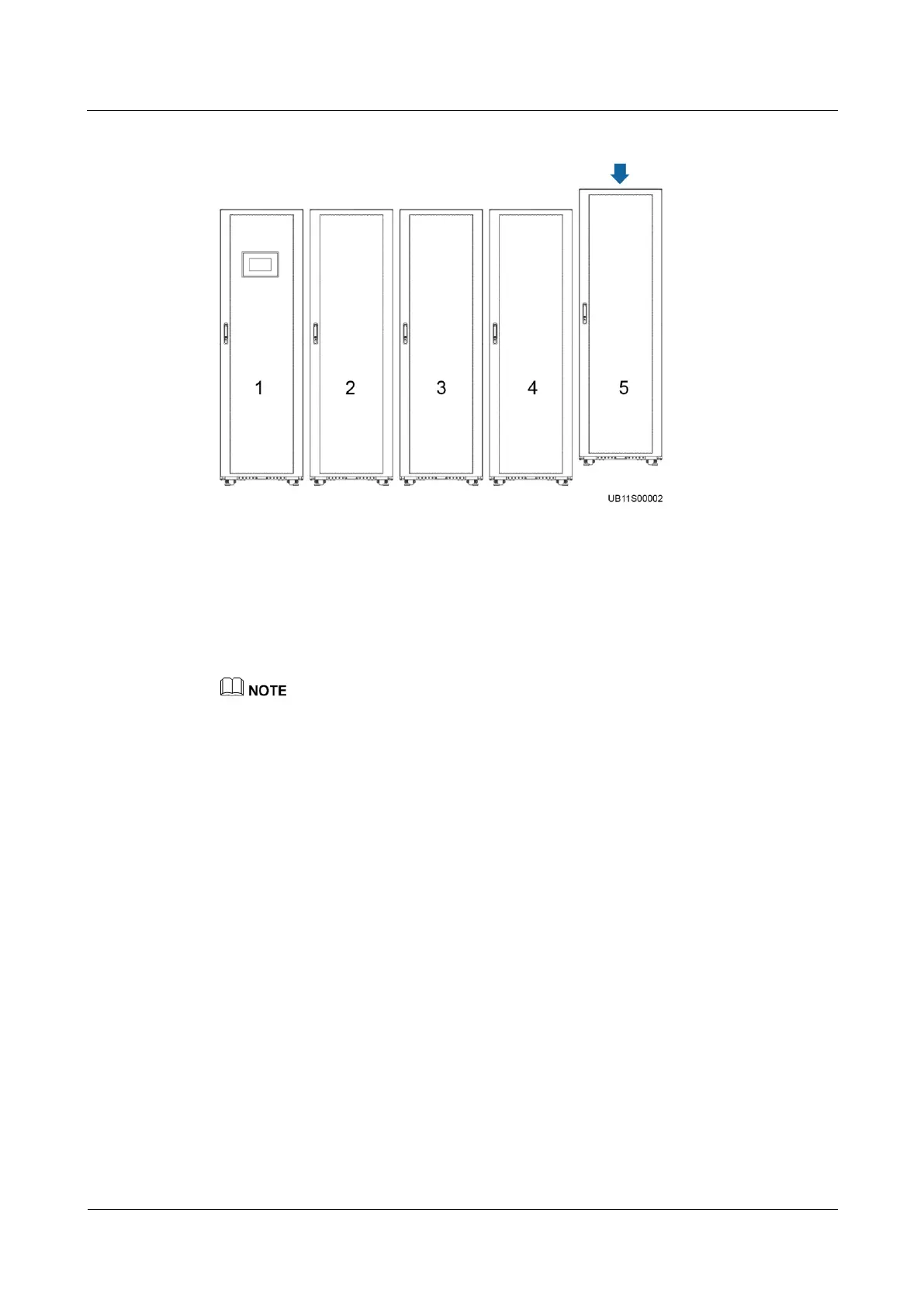

Figure 5-3 Adding a SmartLi
Procedure
Step 1 Install the new SmartLi.
Step 2 Remove the terminal of parallel port 1 on SmartLi 4 and connect the terminal to parallel port
1 on SmartLi 5.
On the monitoring module, PARALLEL1 is above PARALLEL2.
Step 3 Connect parallel port 1 on SmartLi 4 to parallel port 2 on SmartLi 5.
