grid-tied inverters, AC distribution units (ACDUs), and isolation transformer, as shown in
Figure 2-2.

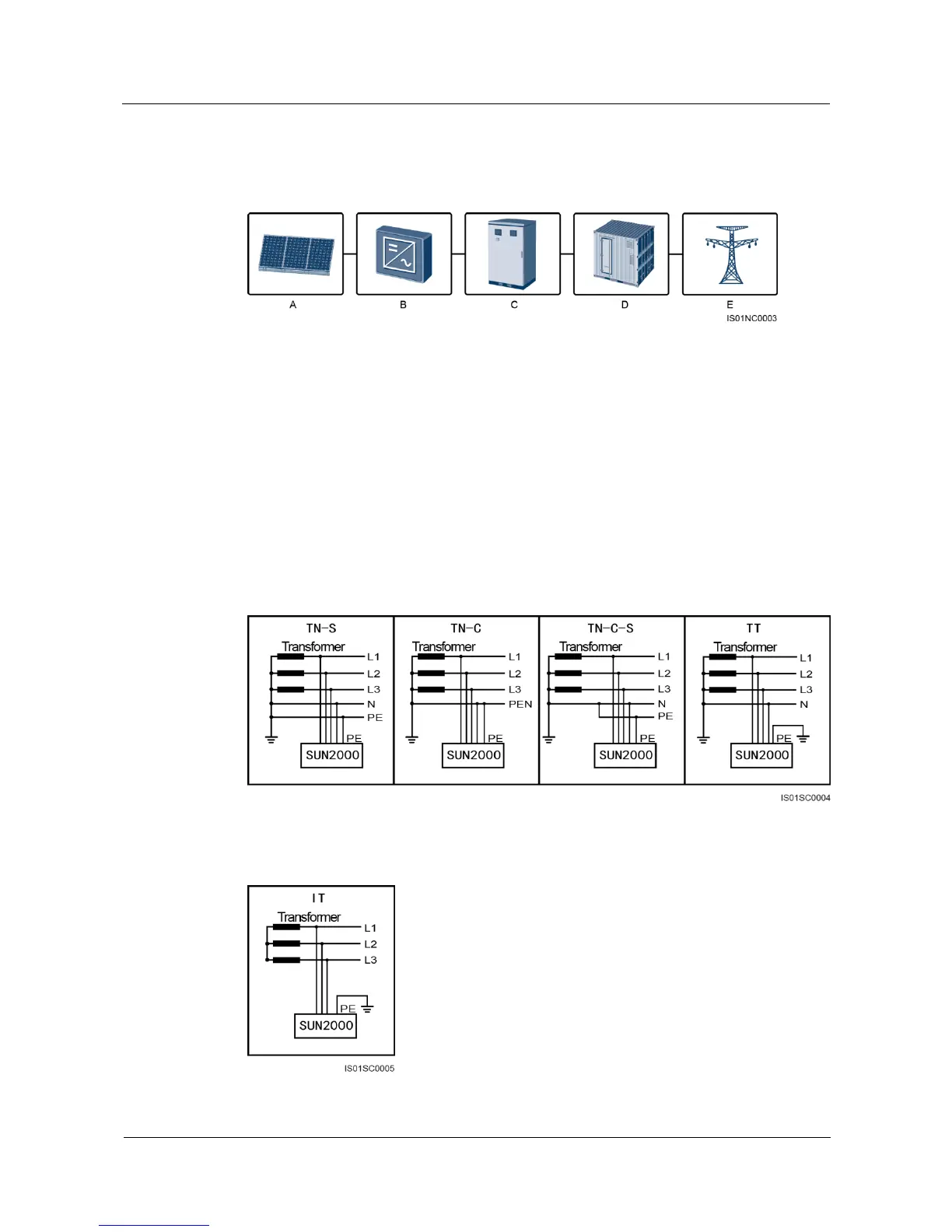

Figure 2-2 Network Application
(A) PV string
(B) SUN2000-33KTL/40KTL
(C) ACDU
(D) Isolation transformer
(E) Power grid
Supported Power Grids
The SUN2000-33KTL supports the power grid modes TN-S, TN-C, TN-C-S, and TT, as
shown in Figure 2-3. The SUN2000-40KTL only supports the power grid mode IT, as shown
in Figure 2-4.
Figure 2-3 Power grids supported by the SUN2000-33KTL
Figure 2-4 Power grid modes supported by the SUN2000-40KTL

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
