For details about the number of accessories delivered with the inverter, see the Packing List in the
packing case.

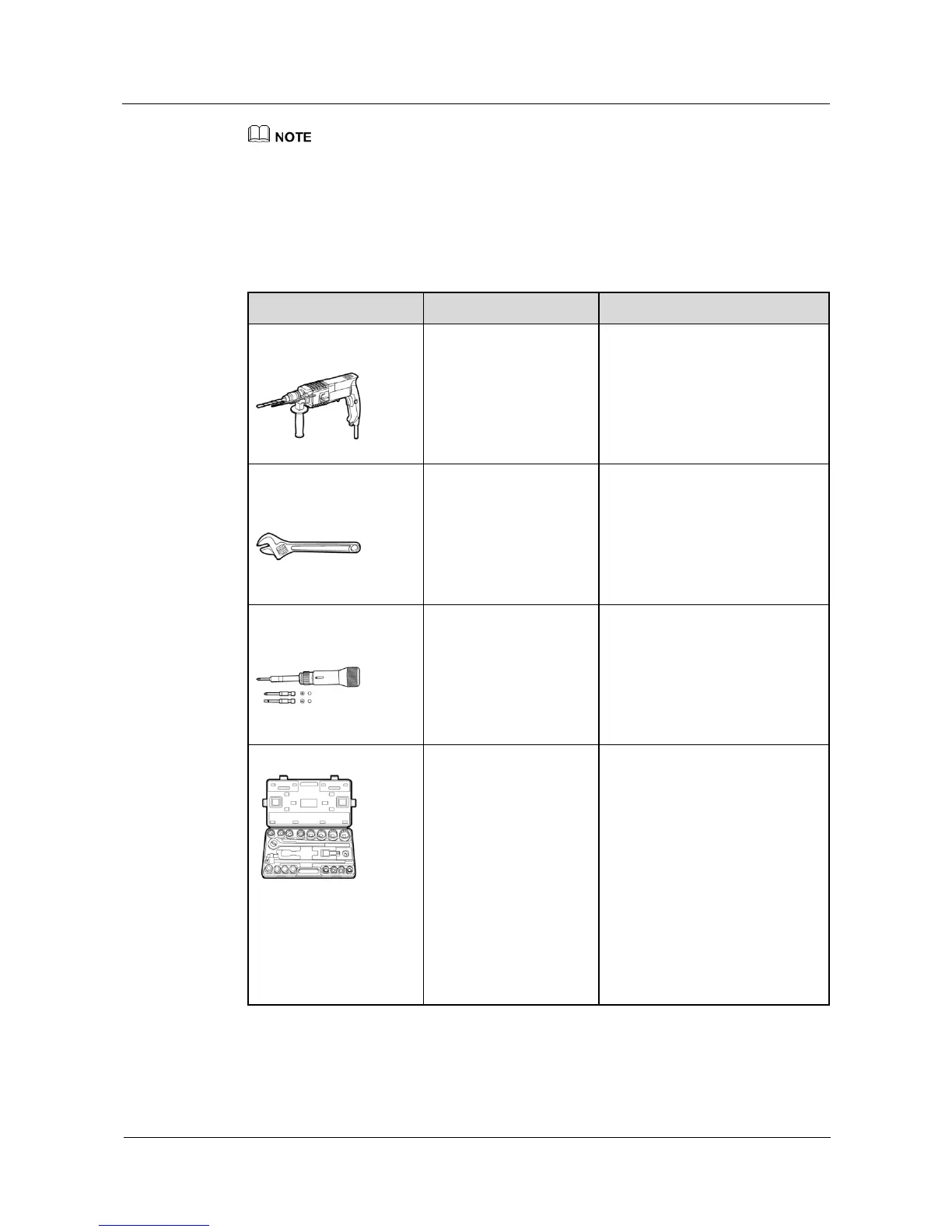

4.2 Tools
Prepare tools required for installation and electrical connections.
Tool
Model
Function
Hammer drill
Drill bit: φ14 mm and
φ16 mm

Drill bit: Φ14 mm, used for
drilling holes in the support.

Drill bit: Φ16 mm, used for
drilling holes in the wall.
Adjustable wrench

With a length of 200
mm

With an open end of
24 mm
Secures bolts.
Torque screwdriver

Flat head: M6

Phillips head: M6, M8
Secures screws to mechanical
parts.
Socket wrench

With an open end of
10 mm (applicable to
M6) or 13 mm
(applicable to M8)

With a height of 100
mm (adapted to the
height distance
between terminals and
the cabinet frame)

Wrench handle length
(horizontal): < 200
mm

Torque: 0–8 N·m
Secures ground bolts and AC
output terminals.

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
