Huawei SUN2000-33KTL User Manual

SUN2000-(33KTL, 40KTL)
User Manual
2 Overview
Issue 03 (2015-12-01)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
No.
Component Name (Silk Screen)
Description
1
DC switch (DC SWITCH)
N/A
2
Positive DC input terminal (+)
Six routes
3
USB port (USB)
N/A
4
RS485 port (COM1)
N/A
5
Protective earthing (PE) bolt
N/A
6
AC output port (AC OUTPUT)
N/A
7
Vent valve
2 PCS
8
Negative DC input terminal (-)
Six routes
9
Antenna (ANT)
Reserved WiFi port
10
RS485 port (COM2)
N/A

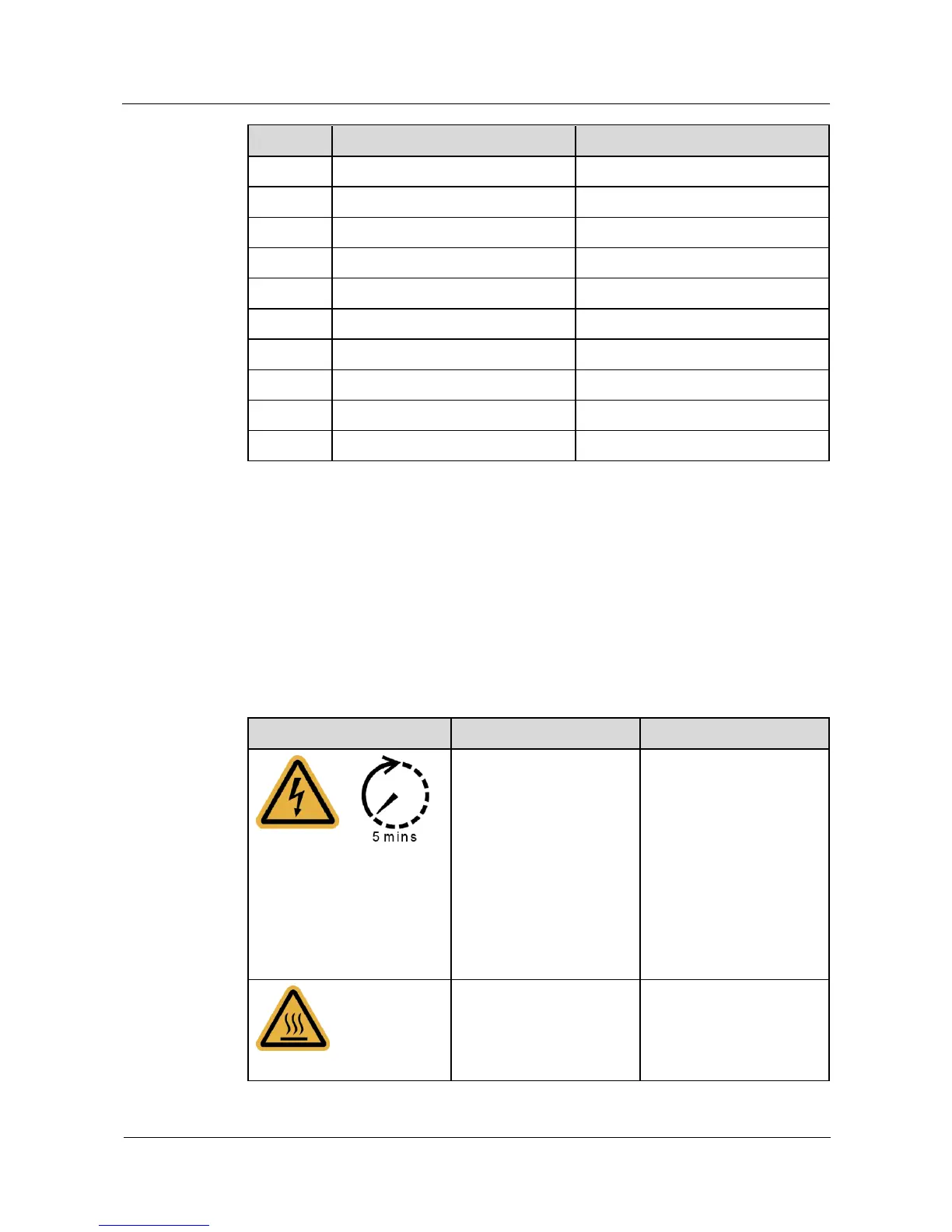

2.3 Label Conventions
This section describes the symbols and nameplate on the SUN2000-33KTL/40KTL.
Symbols
Table 2-3 describes all symbols on the SUN2000-33KTL/40KTL.
Table 2-3 Symbols
Symbol
Label
Meaning
Delay discharge

There are high voltages
when this SUN2000 is
running. Only qualified
and trained electrical
technicians are allowed
to perform operations
on the SUN2000.

There are residual
voltages in the
SUN2000. It needs 5
minutes to finish
discharge.
Burn warning
The SUN2000 must not be
touched when in operation
because its enclosure and
heat sinks are extremely
hot.

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
