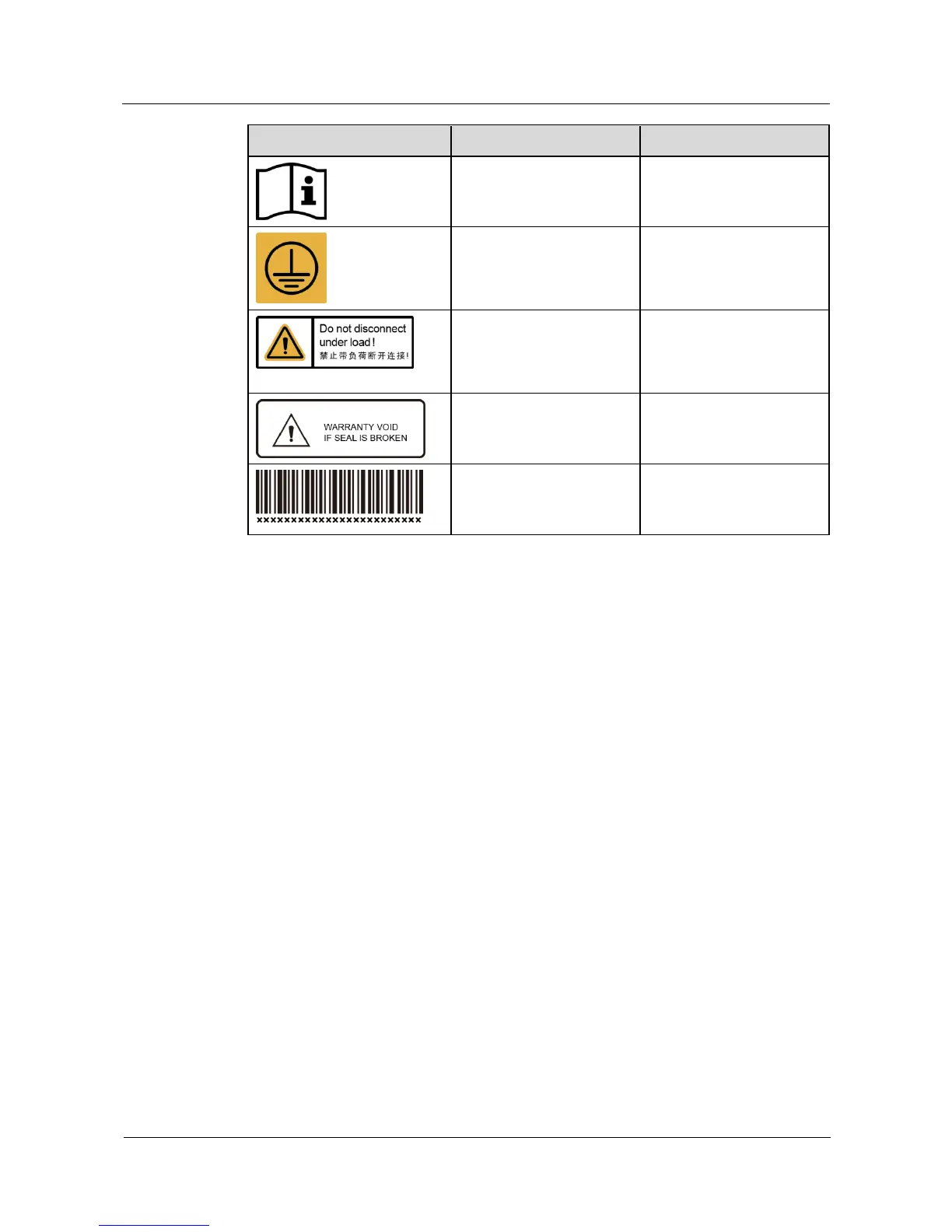

Symbol
Label
Meaning
Refer to documentation
Remind operators to refer
to the documentation
shipped with the SUN2000.
Grounding
Indicates the position for
connecting the protection
ground cable.
Operation warning
The DC input connector
must not be removed when
the SUN2000 is in
operation.
Anti-demolition
Do not open the inverter
panel.
SUN2000 ESN label
SUN2000 manufacture
information.
Nameplate
The SUN2000-33KTL/40KTL is labeled with a nameplate that contains the model
information, technical specifications, and compliance symbols. If the SUN2000 only uses
RS485 for communication, the value of Communication on the nameplate is RS485, as shown
in Figure 2-9. If the SUN2000 uses PLC and RS485 for communication, the value of
Communication on the nameplate is PLC, as shown in Figure 2-10. (SUN2000-33KTL is used
as an example.)

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
