SUN2000-(33KTL, 40KTL)
User Manual
4 Installation
Issue 03 (2015-12-01)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
33

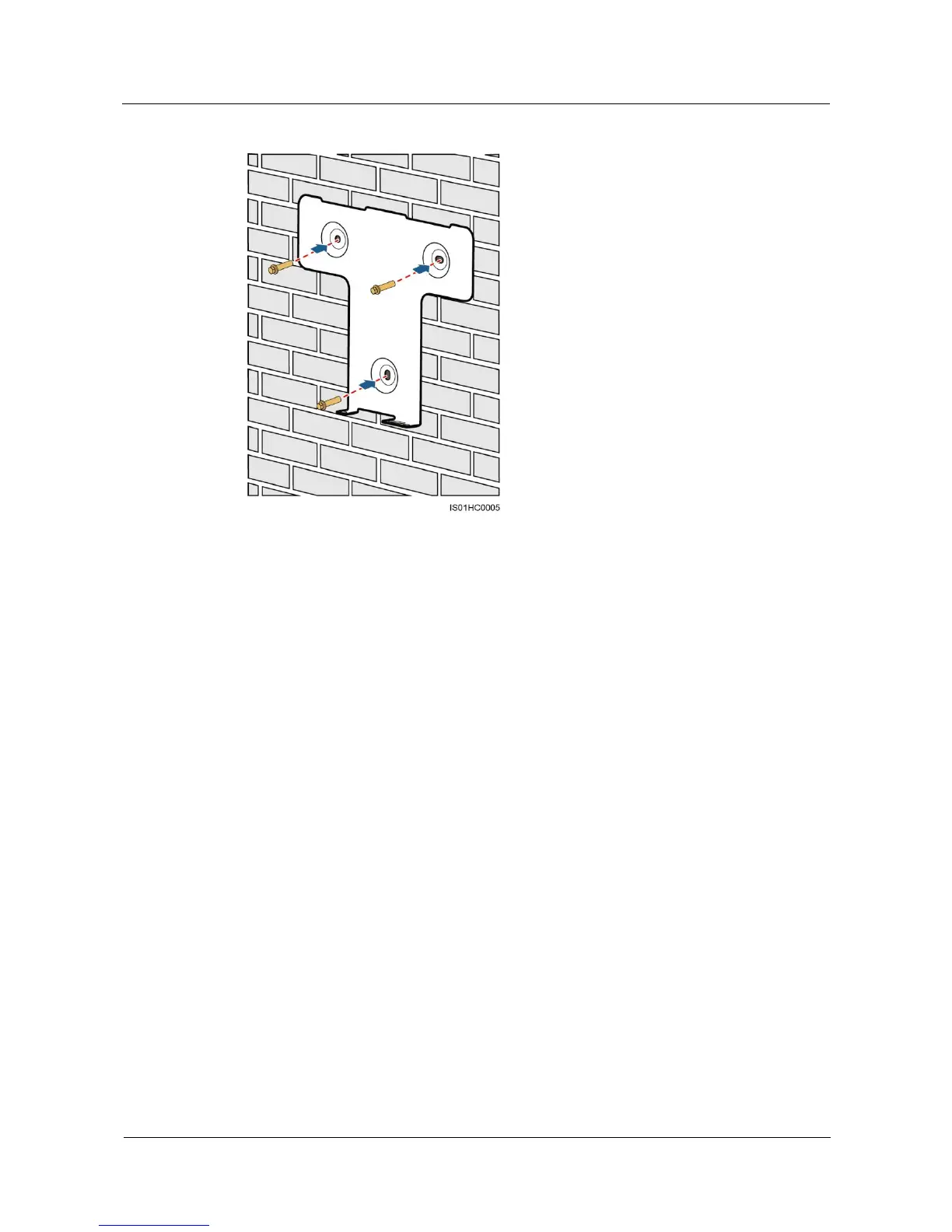

Figure 4-13 Securing a rear panel
----End
4.3.4 Installing the SUN2000
Procedure
Step 1 If the installation position is low and you can mount the SUN2000 on the rear panel, go to
Step 6 after performing Step 4.
Step 2 If the installation position is high and you cannot mount the SUN2000 on the rear panel,
perform Step 3 to Step 7.
Step 3 Mount the M10 screw lifting eyes (provided by the customer) into the lifting holes and tighten
the lifting eyes, as shown in Figure 4-14.

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
