4.4.2 Moving the SUN2000
For details, see 4.3.2 Moving the SUN2000.
4.4.3 Installing a Rear Panel
Before installing the SUN2000, secure the shipped rear panel to a support.
Prerequisites

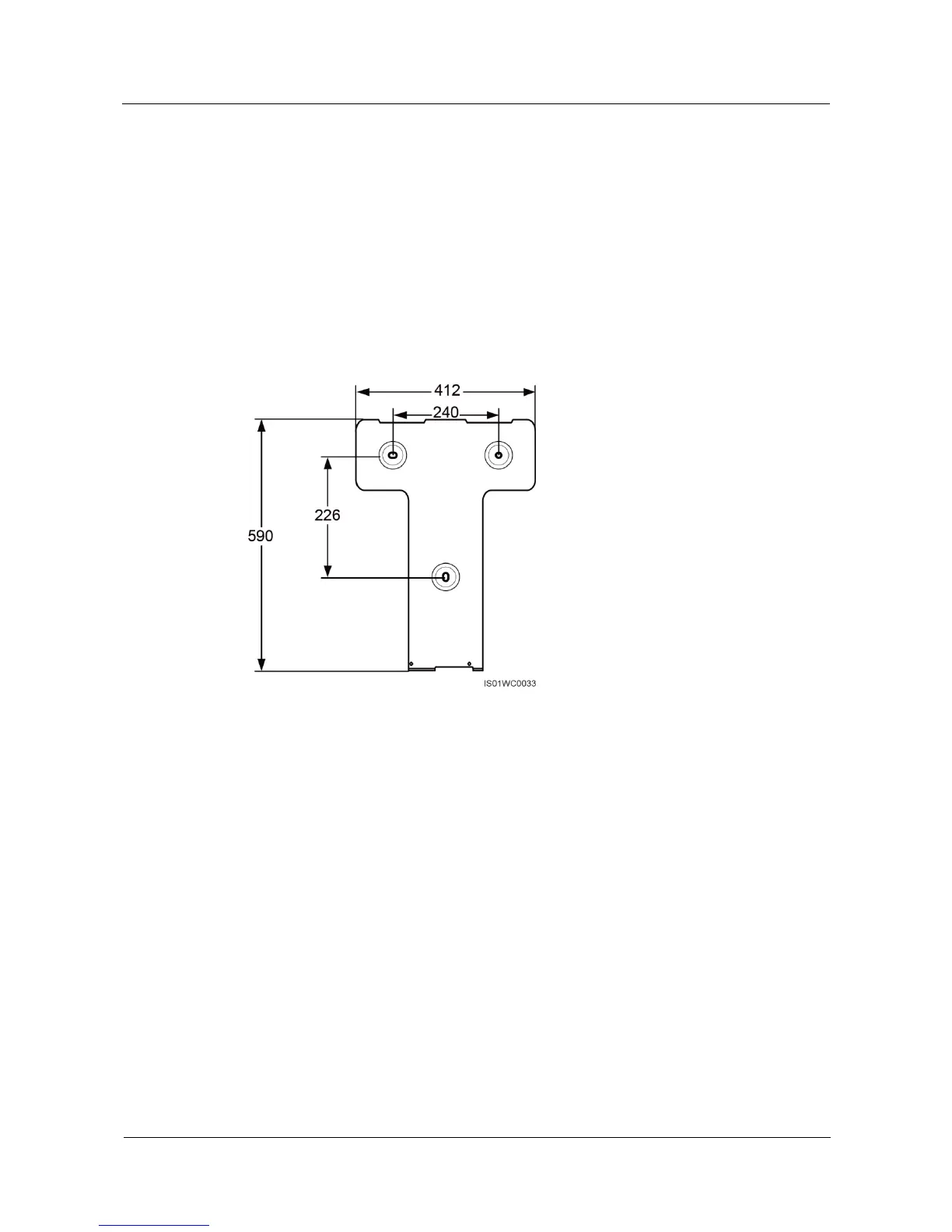

Figure 4-24 shows the dimensions of the rear panel.
Figure 4-24 Dimensions of the rear panel (unit: mm)
Procedure
Step 1 Determine the positions for drilling holes (as shown in Figure 4-25) using the rear panel
available in the packing case, level the hole positions using a level, and mark the hole
positions using a marker.

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
