Huawei SUN2000-33KTL User Manual

SUN2000-(33KTL, 40KTL)
User Manual
4 Installation
Issue 03 (2015-12-01)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
41

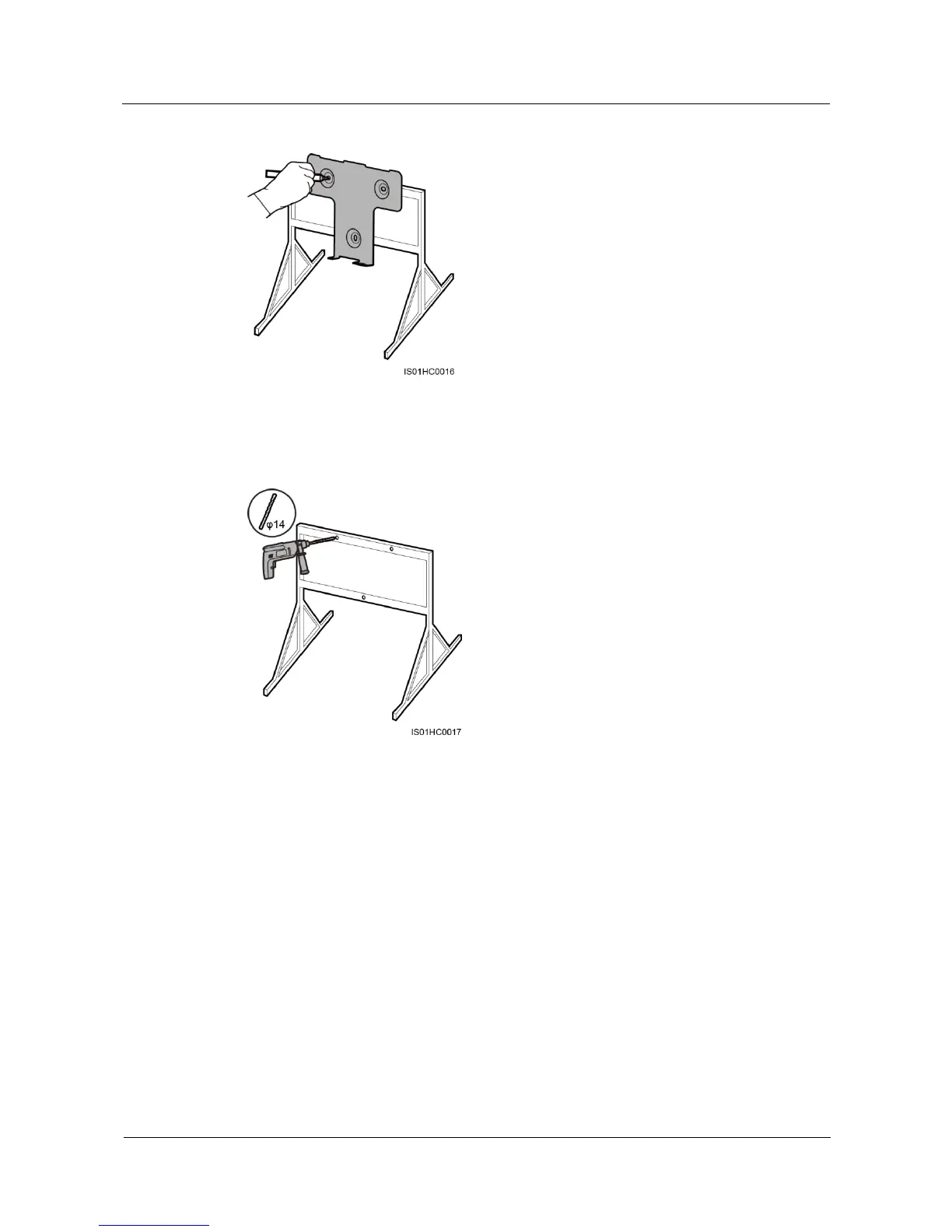

Figure 4-25 Determining hole positions
Step 2 Drill holes using a hammer drill, as shown in Figure 4-26.
Figure 4-26 Drilling holes (unit: mm)
Step 3 Align the rear panel with the hole positions, insert M12x40 bolts (expansion bolts without
expansion sleeves) into the holes through the rear panel, secure them using the shipped
stainless steel nuts and flat washers, and tighten the bolts to a torque of 45 N·m using a torque
wrench, as shown in Figure 4-27.

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
