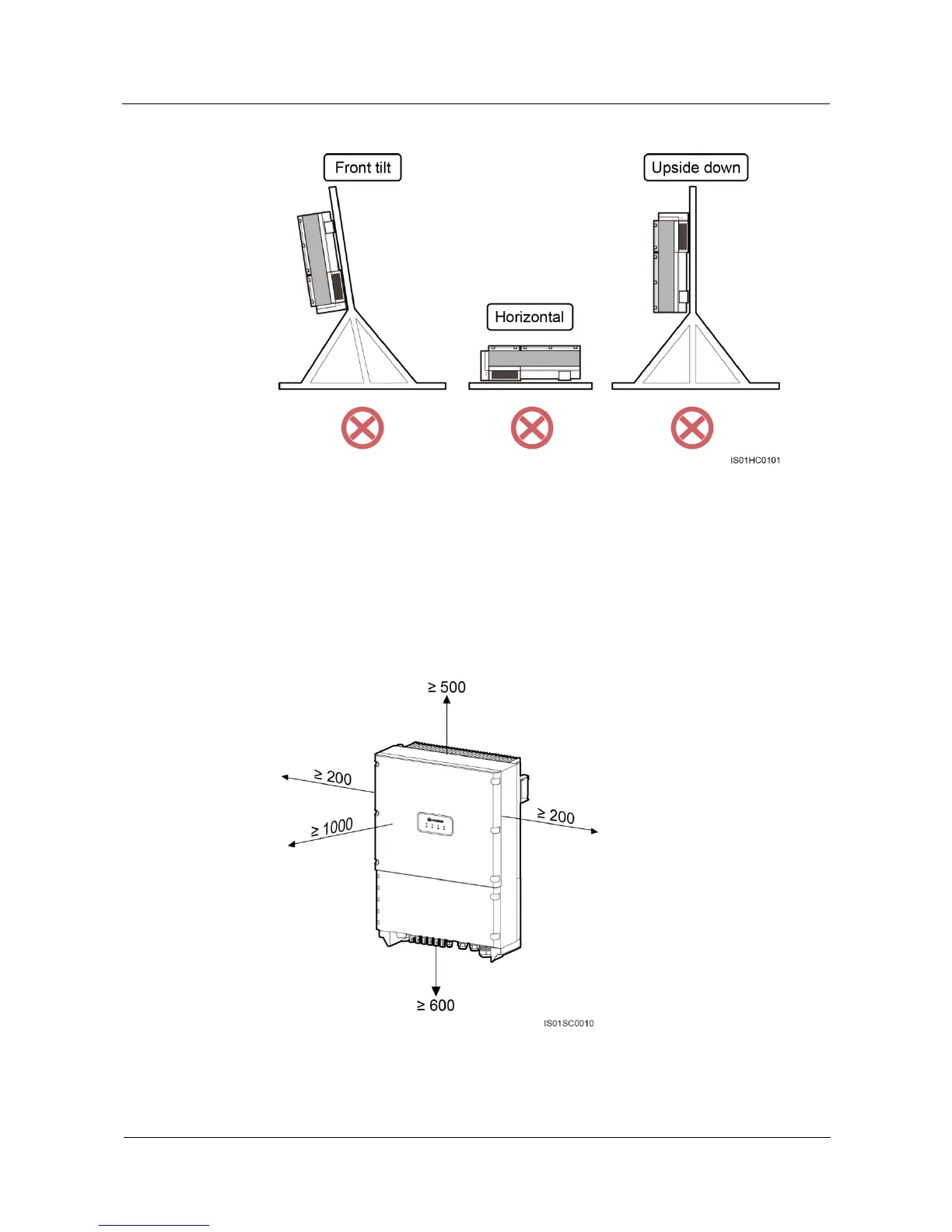

Figure 4-22 Incorrect installation modes
Installation Space Requirements
It is recommended that the SUN2000 be installed at eye level to facilitate operation and
maintenance.
Reserve enough clearance around the SUN2000 to ensure sufficient space for installation
and heat dissipation, as shown in Figure 4-23.
Figure 4-23 Installation space (unit: mm)
