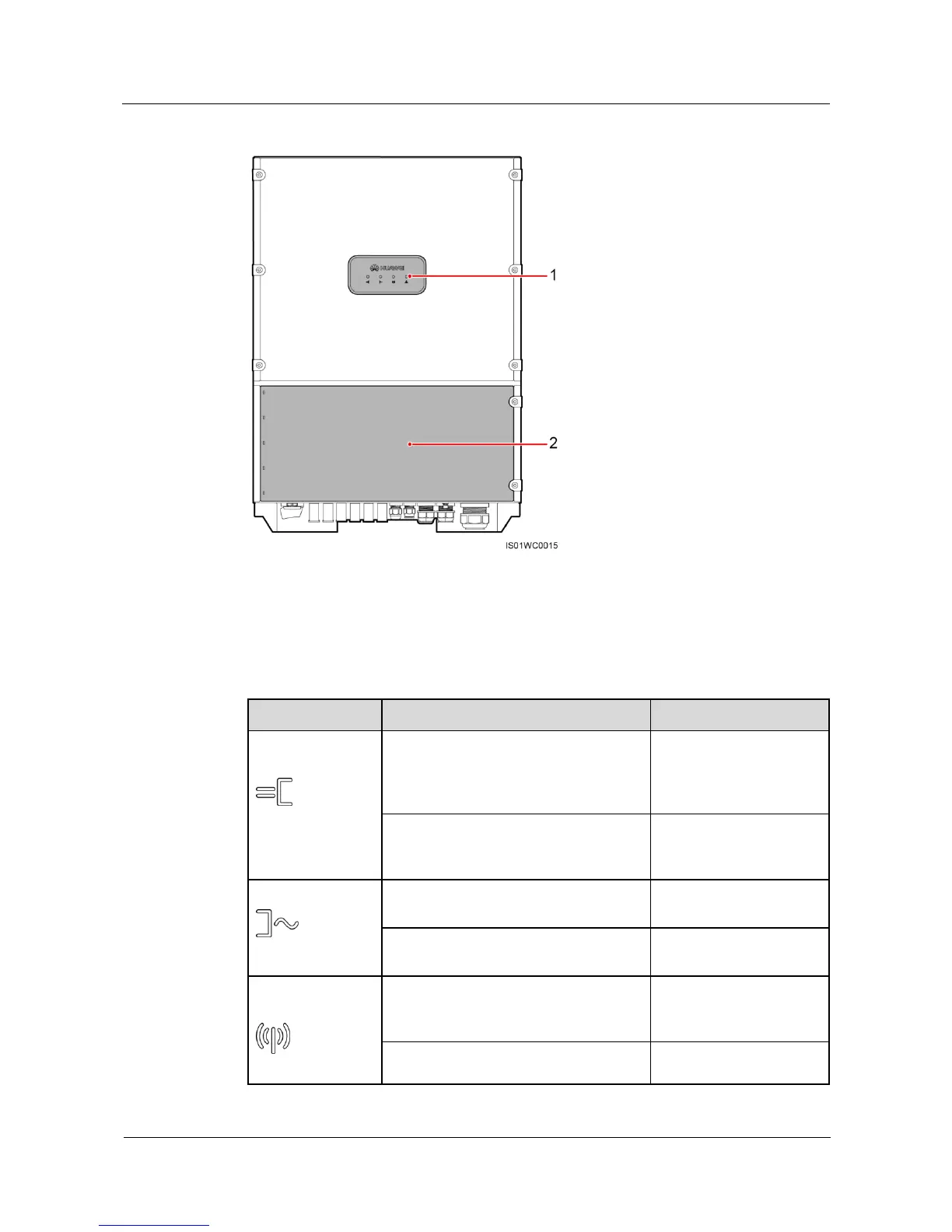

Figure 2-6 SUN2000 front view
(1) Indicators
(2) Maintenance compartment door
Table 2-2 describes the indicators.
Table 2-2 Description of indicators from left to right
Indicator
Status
Meaning
PV connection
indicator
Steady green
At least one PV string is
properly connected, and
the DC voltage exceeds
200 V.
Off
The SUN2000 is
disconnected from all PV
strings.
Grid-tie indicator
Steady green
The SUN2000 is
grid-tied.
Off
The SUN2000 is not
grid-tied.
Communication
indicator
Blinking green fast (on for 0.5s and off
for 0.5s)
RS485 or PLC
communication of the
SUN2000 is normal.
Off
RS485 or PLC
communication of the

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
