Huawei SUN2000-33KTL User Manual

SUN2000-(33KTL, 40KTL)
User Manual
4 Installation
Issue 03 (2015-12-01)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26

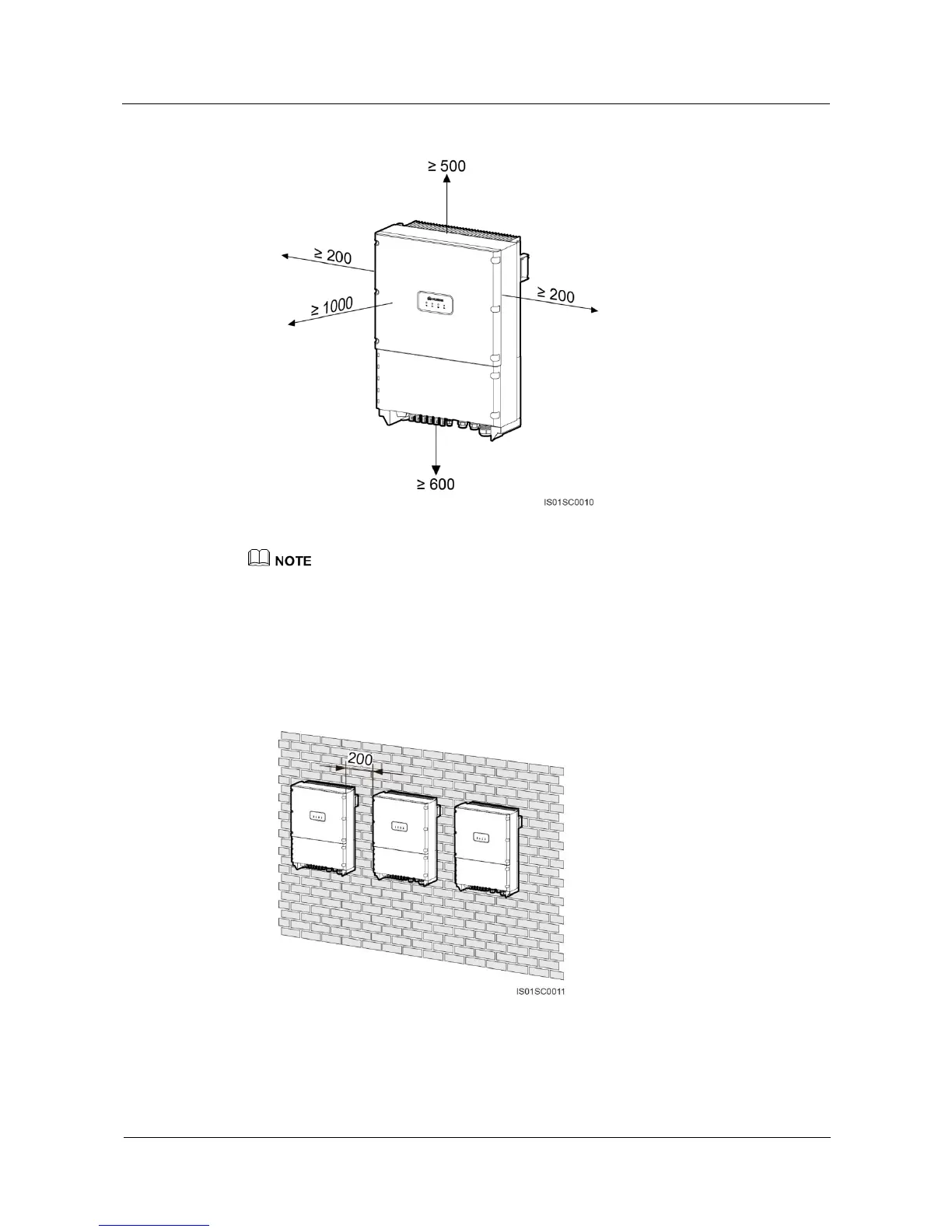

Figure 4-4 Installation space (unit: mm)
If you have any questions about the distance, consult the local technical support engineers.

When installing multiple SUN2000s, install them along the same line (as shown in
Figure 4-5) if sufficient space is available, and install them in triangle mode (as shown in
Figure 4-6) or in stacked mode (as shown in Figure 4-7) if no sufficient space is
available. The installation modes ensure sufficient space for installation and heat
dissipation.
Figure 4-5 Horizontal installation mode (if the space is sufficient, unit: mm)

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
