Huawei SUN2000-33KTL User Manual

SUN2000-(33KTL, 40KTL)
User Manual
5 Electrical Connections
Issue 03 (2015-12-01)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
59
− Terminal block connection
The DJYP2VP2-22 2x2x1 network cable or a communications cable with a cross
sectional area of 1 mm
2
and external diameter of 14–18 mm is recommended.
− RJ45 network port connection
You are advised to use a CAT 5E outdoor shielded network cable with a diameter
less than 9 mm and internal resistance no greater than 1.5 ohms/10 m.
Select either connection mode during installation. Connecting to a terminal block is recommended.
When routing communications cables, ensure that communications cables are separated from
power cables and away from interfering source to prevent communication from being
affected.

RS485 terminal block definitions

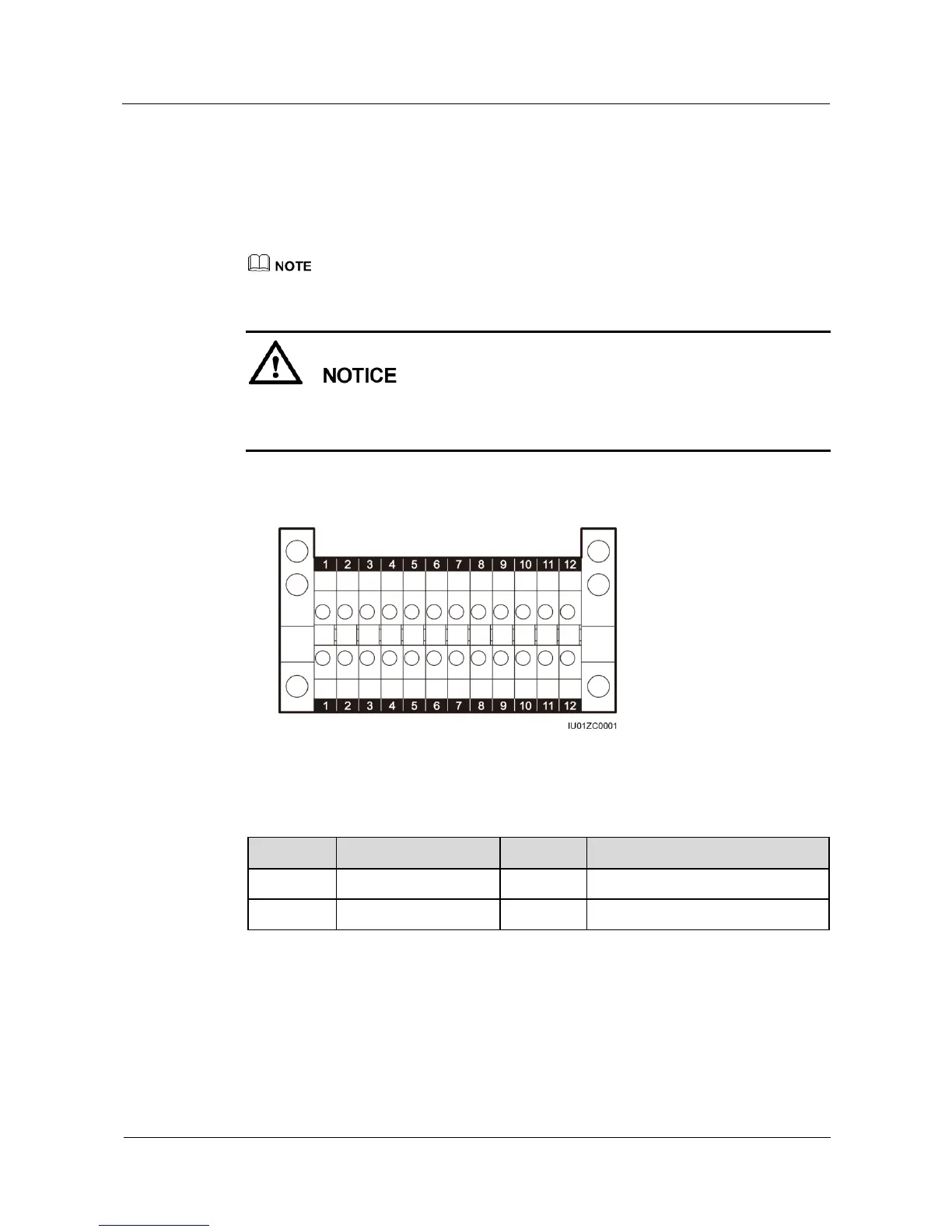

Figure 5-22 Terminal block
Table 5-4 defines the RS485 terminal block.
Table 5-4 RS485 terminal block definitions
No.
Function
No.
Function
5
RS485A (IN)
6
RS485A (OUT)
7
RS485B (IN)
8
RS485B (OUT)

RJ45 connector pin definitions

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
