NO TICE
You are advised to use the PV-CZM-22100 (Staubli) crimping tool and do not
use it with the positioning block. Otherwise, the metal terminals may be
damaged.
The PV-MS (Staubli) or PV-MS-HZ (Staubli) open-end wrench is recommended.
Cables with high rigidity, such as armored cables, are not recommended as DC
input power cables, because poor contact may be caused by the bending of the
cables.
Before assembling DC connectors, label the cable polarities correctly to ensure
correct cable connections.
After the positive and negative connectors snap into place, pull the DC input
cables back to ensure that they are connected securely.
If the SUN2000 is used with an optimizer, the number of optimizers for a single
PV string cannot exceed 25.
If the PV string is
congured with an optimizer, check the cable polarity by
referring to the smart PV optimizer quick guide.
Procedure
Step 1 Connect the DC power cable.

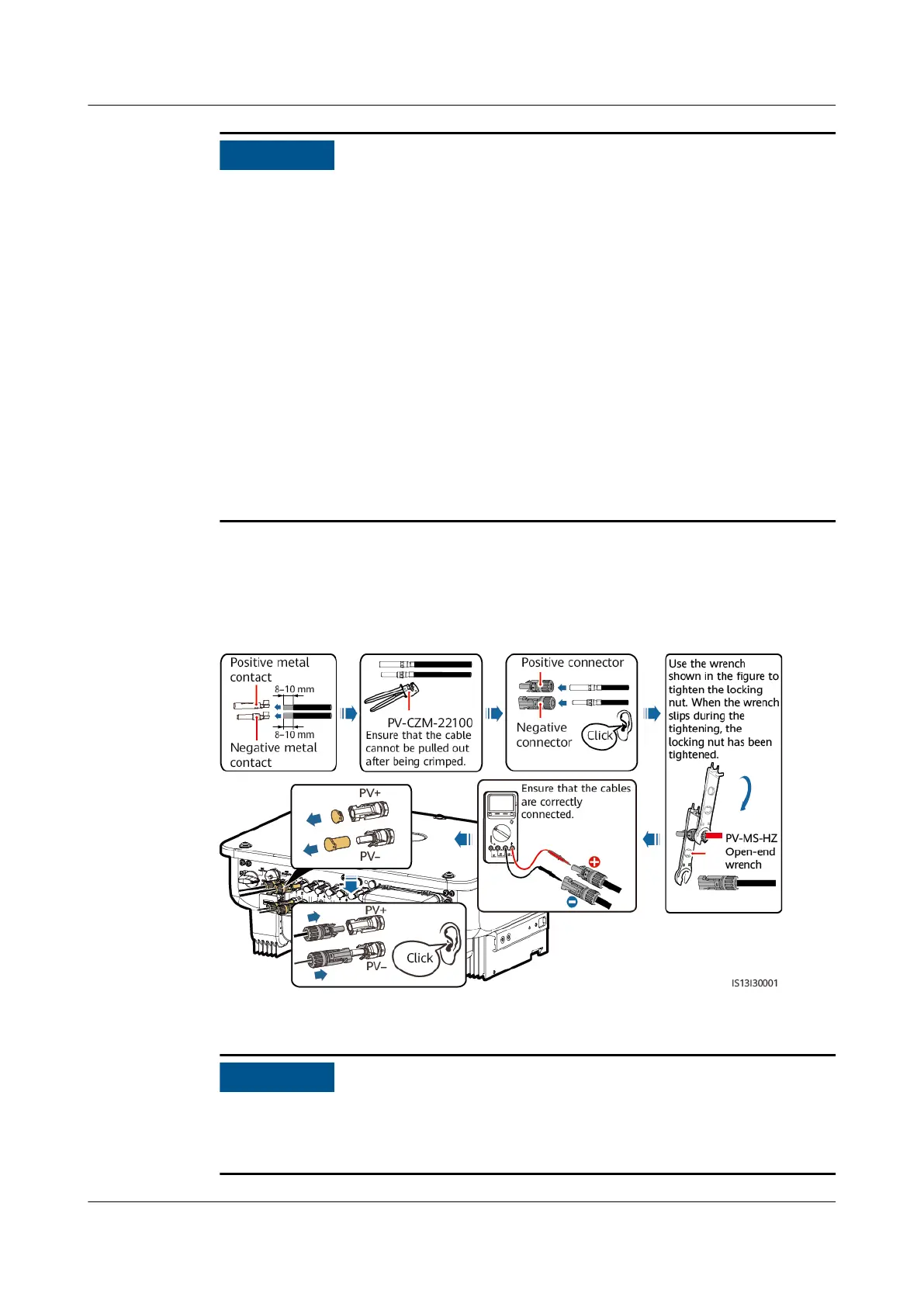

Figure 5-14 Connecting the DC power cable
----End
NO TICE
During DC input power cabling, leave at least 50 mm of slack. The axial tension
on PV connectors must not exceed 80 N. Radial stress or torque must not be
generated on PV connectors.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 5 Electrical Connections
Issue 11 (2023-01-10) Copyright © Huawei Technologies Co., Ltd. 48

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000-M3 and is the answer not in the manual?

Huawei SUN2000-M3 Specifications

General IconGeneral
TypeString Inverter
Rated AC Grid Frequency50 Hz / 60 Hz
DC Connection TypeMC4
Protection DegreeIP65
Cooling MethodNatural convection
CategoryInverter
Adjustable Power Factor Range0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)≤ 3 %
Operating Temperature Range-25°C to 60°C
CommunicationRS485
Efficiency98%
Protection LevelDC reverse polarity protection, AC overcurrent protection, AC short-circuit protection, Overvoltage protection, Insulation monitoring, Residual current monitoring unit, Arc fault detection
