3.6 Internal Cabling for a Server with I/O Module 3

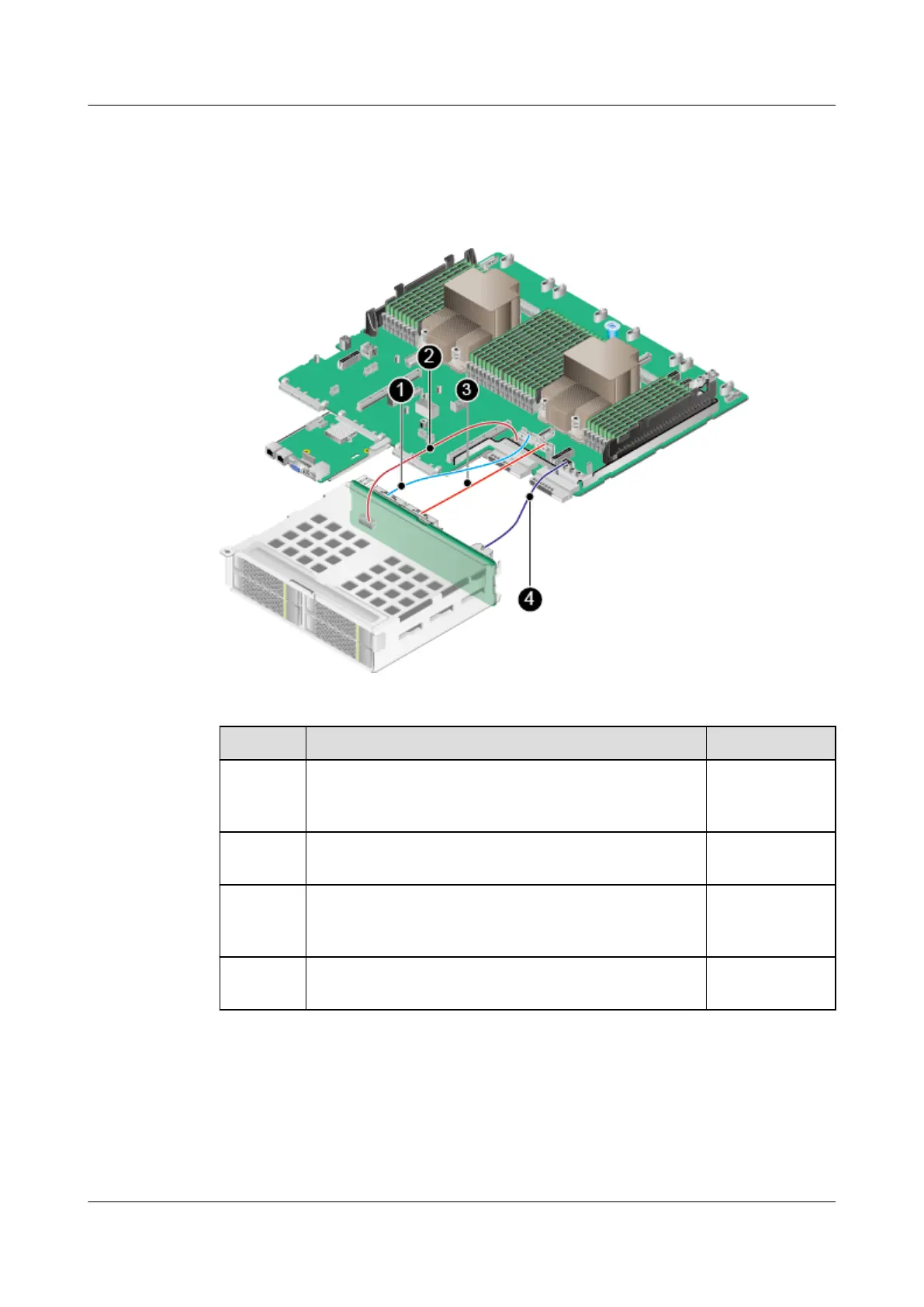

Figure 3-22 Internal cabling for the backplane of NVMe SSDs in I/O module 3
Table 3-22 Internal cabling for the drive backplane for I/O module 3
No.
Connectors and Cable Part No.
1 Signal cable for connecting Slimline B (J51) of the
mainboard to Slimline B (J9) of the rear drive
backplane
04052304
2 Low-speed signal cable for connecting the
mainboard (J67) to the rear drive backplane (J23)
04080602
3 Signal cable for connecting Slimline A (J52) of the
mainboard to Slimline A (J8) of the rear drive
backplane
04052304
4 Power cable for connecting the mainboard (J12) to
the rear drive backplane (J24)
04052302
