Humminbird ONIX User Manual

199
Radar Configuration
Set the Sector Blanking Range
Sector Blanking sets an area where the radar will not scan. This setting is useful for preventing reflections or false echoes from
displaying on the Radar View; however, any targets within this range are not displayed on the screen.
WARNING! Targets in the Sector Blanking Range are not displayed on the Radar View.
1. Select Sector Blanking from the Installation menu.
2. Select Sector Start. Press and hold the slider, or turn the Rotary dial, to set the start of the sector range.
3. Select Confirm. Tap the menu, or press the ENTER key.
4. Select Sector End. Press and hold the slider, or turn the Rotary dial, to set the end of the sector range.
5. Select Confirm. Tap the menu, or press the ENTER key.
6. Tap the Back icon, or press the EXIT key.
Adjust the Heading Line
Use the Heading Line setting to synchronize the on-screen heading with the actual vessel heading so that north is displayed correctly
on the view.
1. Select Heading Adjustment from the Installation menu.
2. Press and hold the slider, or turn the Rotary dial, to adjust the heading line.
3. Tap the Back icon, or press the EXIT key.

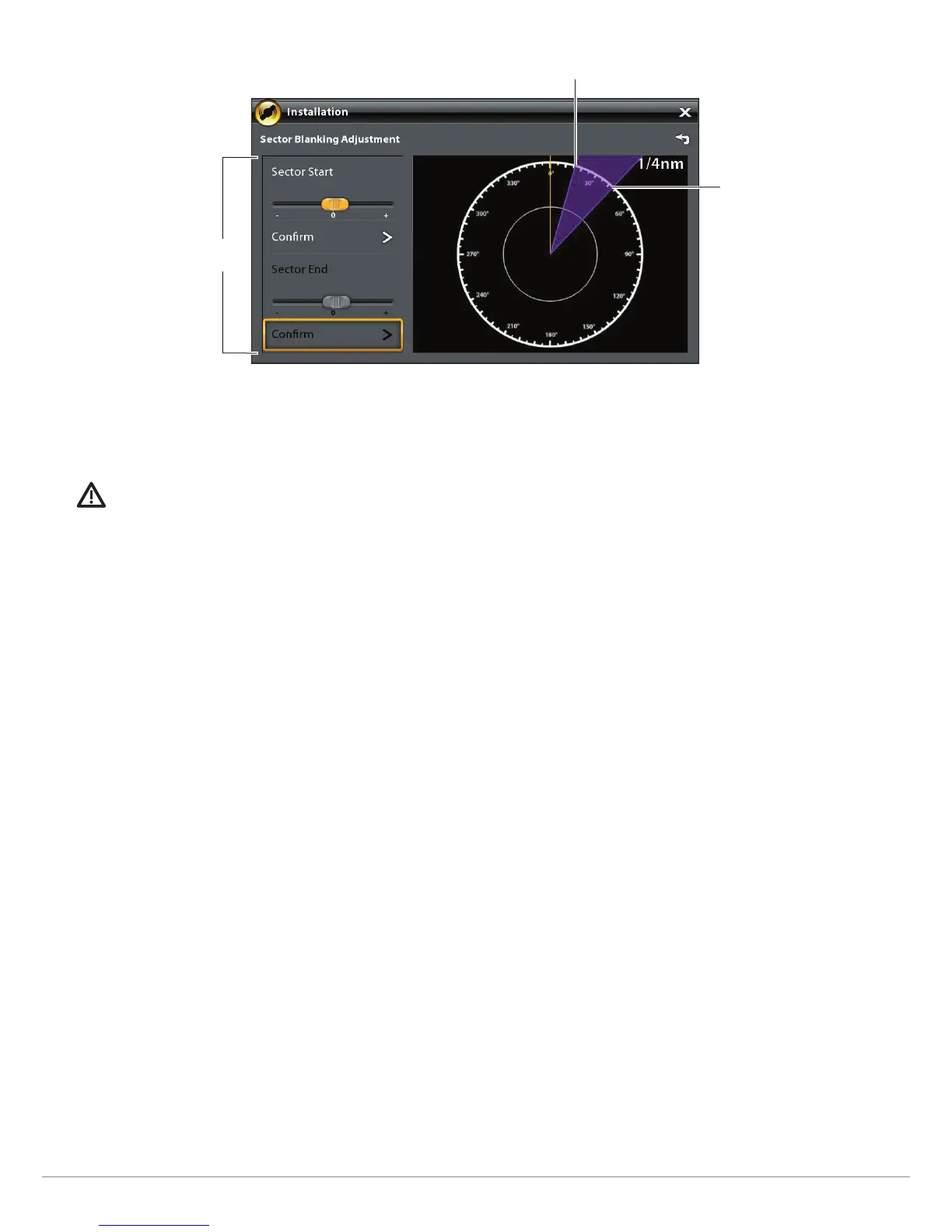

Setting the Sector Blanking Range
sector end
sector start and
sector end menus
sector start

Humminbird ONIX Specifications

General

Networking	Ethernet
Waterproof Rating	IPX7
Waypoints	3000
Power Output	500W (RMS)
Frequency	50/83/200 kHz
GPS Receiver	Internal
