5. Repair instructions
™
5.7 Replacing the upper section
cable harness

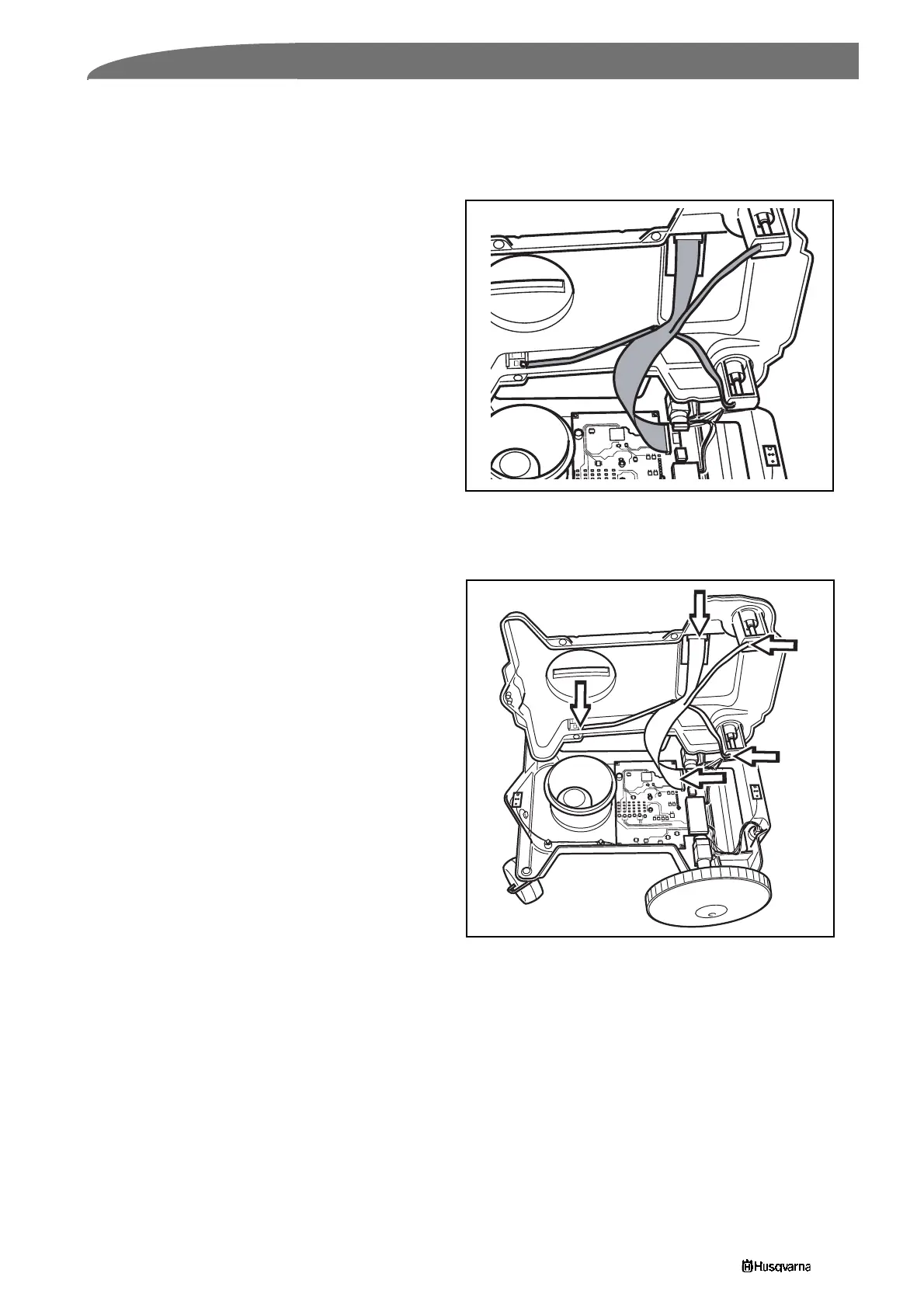

Upper section cable harness in the Automower
connects the control box with:
1. Display circuit board.
2. Left collision sensor.
3. Right collision sensor.
4. Lift sensor.
To change the cabling:
1. Dismantle the body and chassis.
2. Remove the cabling from the control box,
display circuit card, the collision sensors and
the lift sensor.
3. Replace with a new upper section harness
and connect.
4. Check that the mower works.
5. Fit the chassis and body.
2.
1.
3.
4.
3012-706
3012-707
