1.1 Automower, What is what?

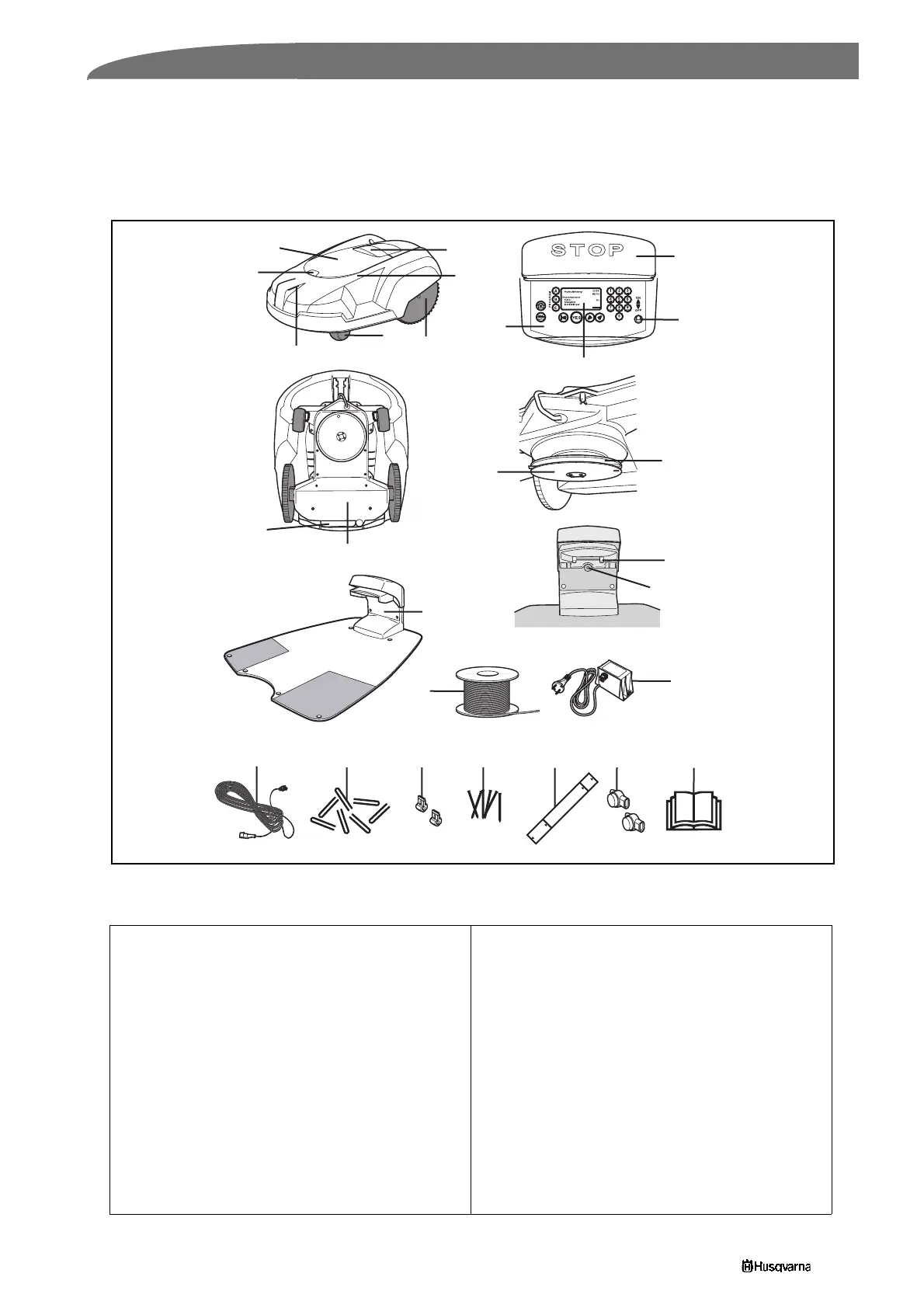

The numbers in the picture correspond to:
1. Charging strip
2. Cutting height adjustment cover
3. Catch button to open the cutting height
adjustment cover
4. Front wheel
5. Drive wheel
6. Body
7. Stop button
8. Keypad
9. Display
10. Main switch
11. Handle
12. Chassis box with electronics, battery and motors
13. Skid plate
14. Blade disc
15. Charging station
16. Contact strips
17. LED for operation check of the boundary wire
18. Boundary wire
19. Transformer with power cord
20. Low voltage cable
21. Staples
22. Boundary wire connector
23. Nails for securing the charging station
24. Measurement gauge for help when installing the
boundary wire
25. Boundary wire coupler
26. Operator’s Manual
